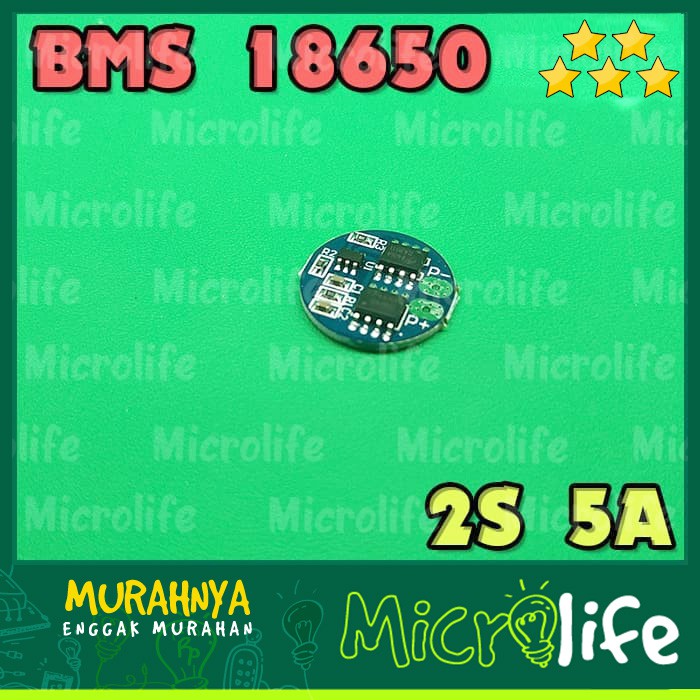

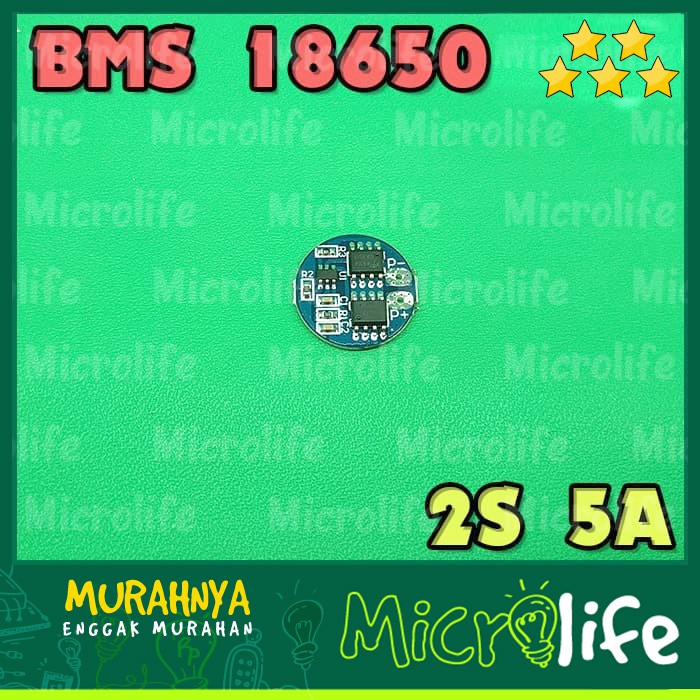

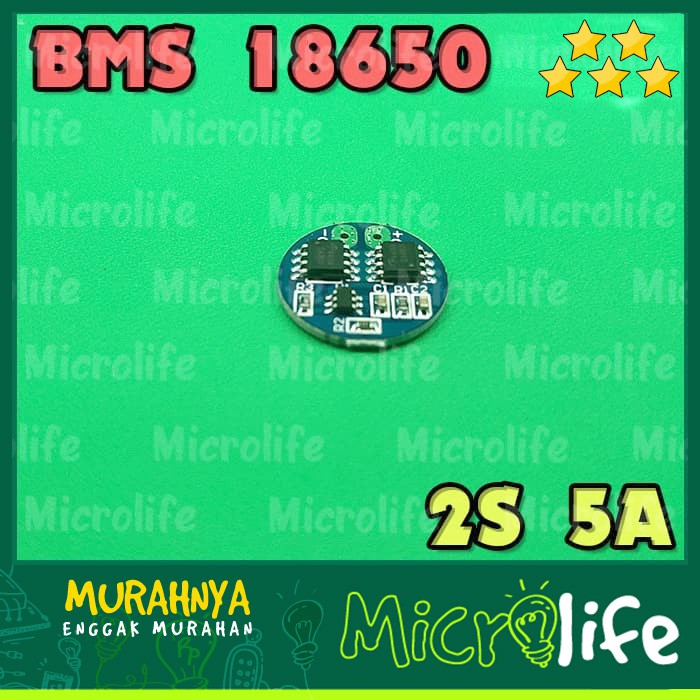

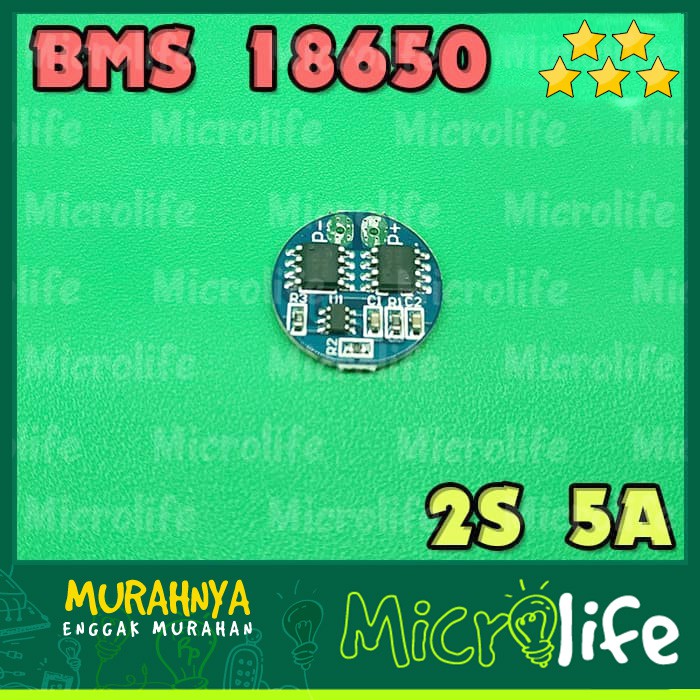

BMS 2S 5A Lithium Ion 18650 PCM Battery Management Protection Board

Detail BMS 2S 5A Lithium Ion 18650 PCM Battery Management Protection Board

BMS 2S 5A Lithium Ion 18650 PCM Battery Management Protection Board

Spesifikasi :
Lithium battery protection board properties:
++ Model: HX - 2 s - A2 of charging voltage range: 4.25 + / - 0.05 v to 4.35 v
++ Size: 17.5 x 17.5 x 17.5 mm discharge voltage range: 2.5 + / - 0.05 v to 3.0 v
++ Maximum working current: 5 a working temperature: - 40 - + 50 ℃
++ Maximum instantaneous current: 7 a storage conditions: - 40 - + 80 ℃
++ Static electricity: less than 10 ua useful life: more than 50000 hours
++ Resistance: less than 300 m Ohm short circuit protection: to protect and restore must charge
++ Charging voltage: 8.4 V - 9 V

Bagian untuk di solder:
B. + connect battery anode;
B. - connect battery cathode;
MB, connect battery 1 and 2 before the join points;
P. + correct answer the charge/discharge (charging/discharging end sharing);
P. - answer the charge/discharge end negative (charging/discharging end sharing).

Isi Paket :
1x BMS 2S 5A Lithium Ion 18650 PCM Battery Management Protection Board

#MODULE

Gambar produk
