BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module

Elektronik > Elektronik Lainnya > BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:EasyWare ElectronicsLihat semua produk Elektronik oleh EasyWare Electronics
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

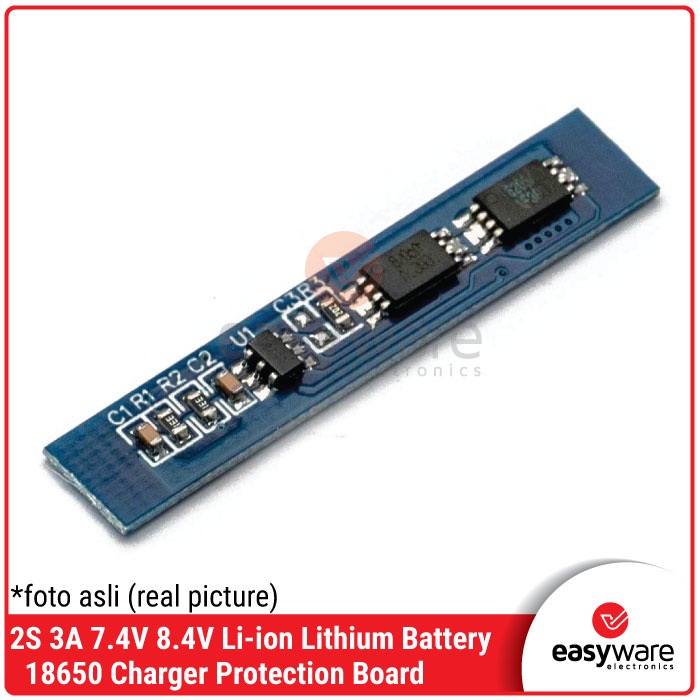

Detail BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module

Hi #RekanEasyWare ...
EasyWare Part#: EP000703

Features :
- Over-Discharge Detection Voltage: 2.3-3.0V0.05V
- Maximum Working Current: 3A
- Transient Current: 5A
- Operating Temperature : -40-50 C
- Internal Resistance: Less than 45m
- B+ B-: The interface of battery core
- P+ P-: The connector of the battery board
- MB: The connection point between the batteries

Spesifications :
- Battery: 2 Cell
- Overcharge detection voltage (V): 4.25 0.025
- Over-discharge detection voltage (V): 2.50 0.08
- Over current Protection (A): 5
- Working current (A): 3
- Operating Temperature (C): -40 ~ +85
- Size: 36.5x6.5x2 mm

Package :
- 1x 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module

Gambar produk

BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
BMS 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
Lihat lebih banyak informasi produk
