BMS 2S 20A 7.4V 8.4V 18650 Lithium battery protection board

Detail BMS 2S 20A 7.4V 8.4V 18650 Lithium battery protection board

Hi #RekanEasyWare ...
EasyWare Part#: EP000701 (Balanced) & EP000702 (Standard)

Note:
- Variasi "Standard": Arus tidak konsisten dengan arus saat mengisi daya yang dapat mengurangi masa pakai baterai.
- Variasi "Balanced": Arus dan voltase setiap baterai konsisten dengan daya saat mengisi daya, yang dapat memperpanjang masa pakai baterai.

Specification:

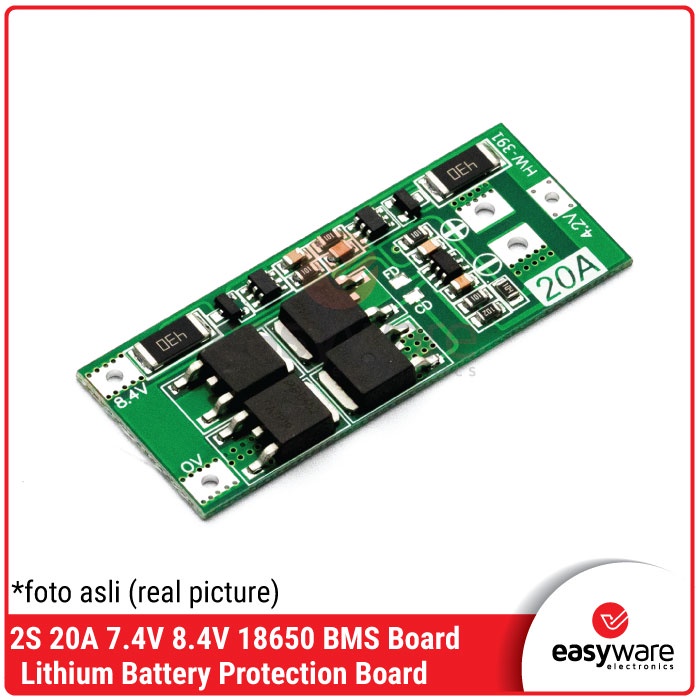

- Product model: HW-391
- Charging Voltage: DC 8.4-9V

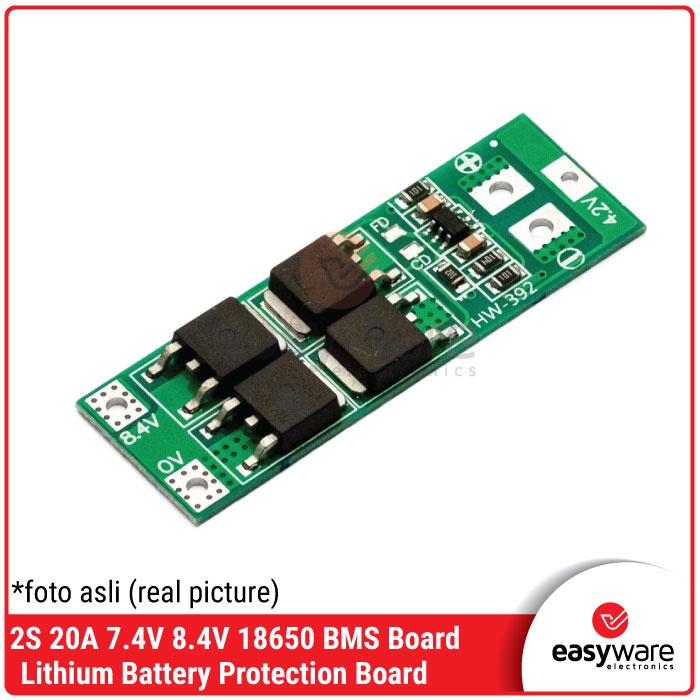

- Version: Balance, Standard
- Continuous discharge current: maximum 20A (if heat dissipation environment is not good, please reduce the use of load current)
- Continuous charging current: maximum 10A
- Applicable Choice: For lithium batteries with nominal voltage of 3.7V and charge of 4.2V (including 18650, 26650 and polymer lithium batteries), can start-up current 25A, power less than 50W electric drill, or 168W resistive load

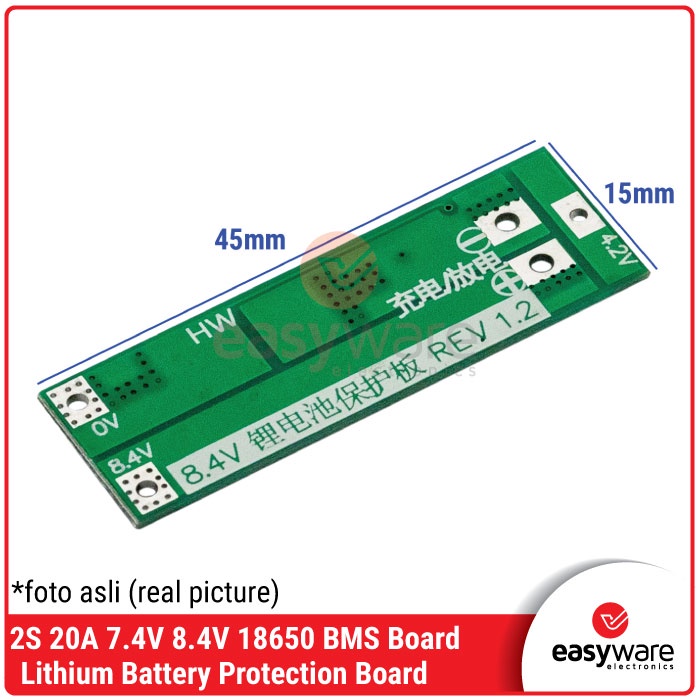

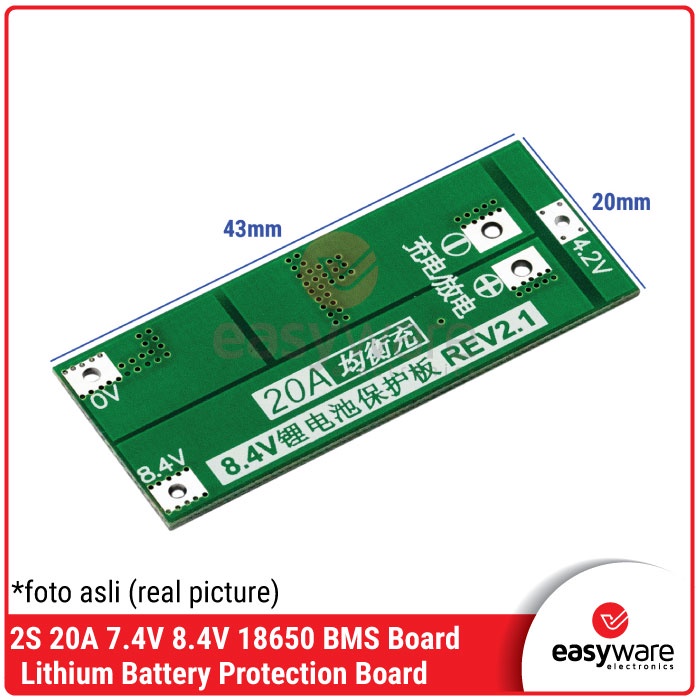

- Product size: 48mmx20mmx4mm

Package :
- 1x 2S 20A 7.4V 8.4V 18650 Lithium battery protection board - balance version

Gambar produk
