Detail BMS 1s 4.2V 7.5A Lithium Li-ion Li-po 3MOS Battery Protection Board

Deskripsi BMS 1s 4.2V 7.5A Lithium Li-ion Li-po 3MOS Battery Protection Board
Technical parameters:
Overcharge detection voltage: 4.25V ± 0.05V
Over discharge detection voltage: 2.5V ± 0.05V
Upper limit continuous current: 6A
Over-current detection current: 7.5A
Charge voltage: 4.2V

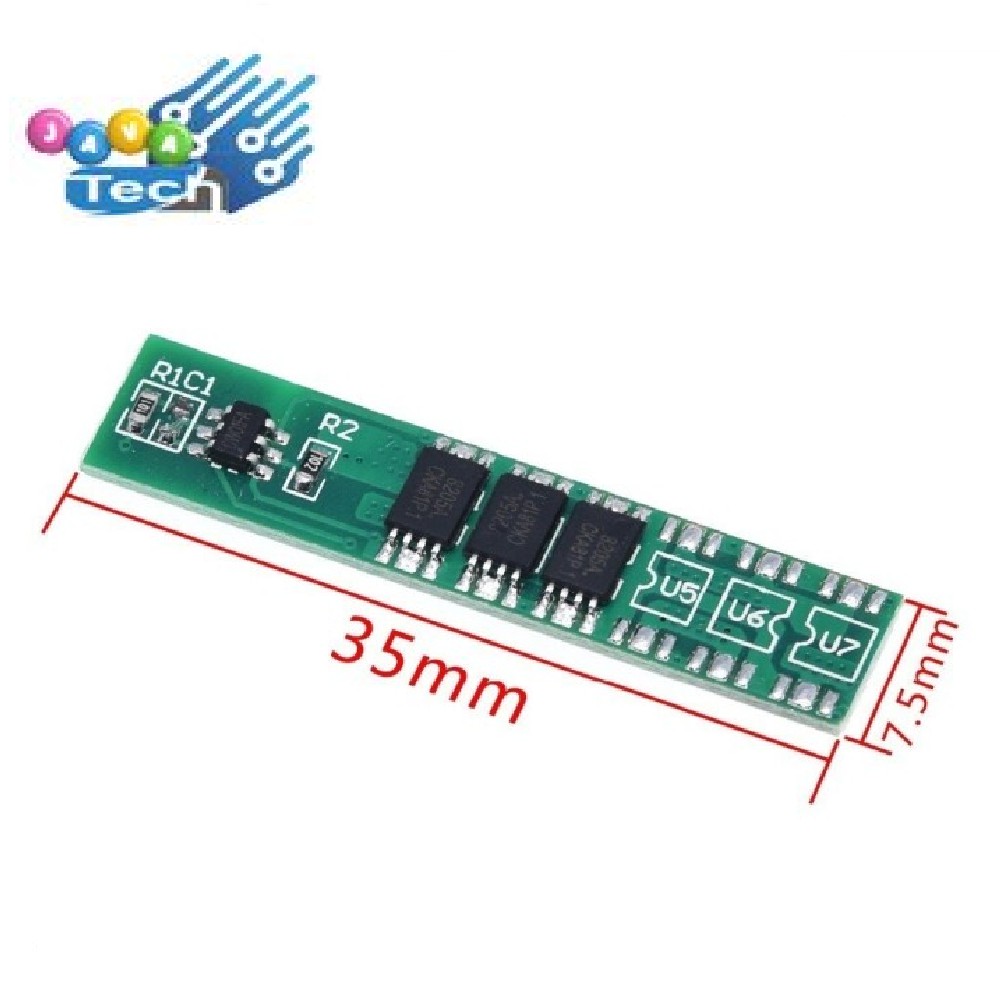

Product size: 38*7.6*2MM
IC element: DW01+8205A*3
Main functions:
Over charge protection, over discharge protection, short circuit protection and over current protection.

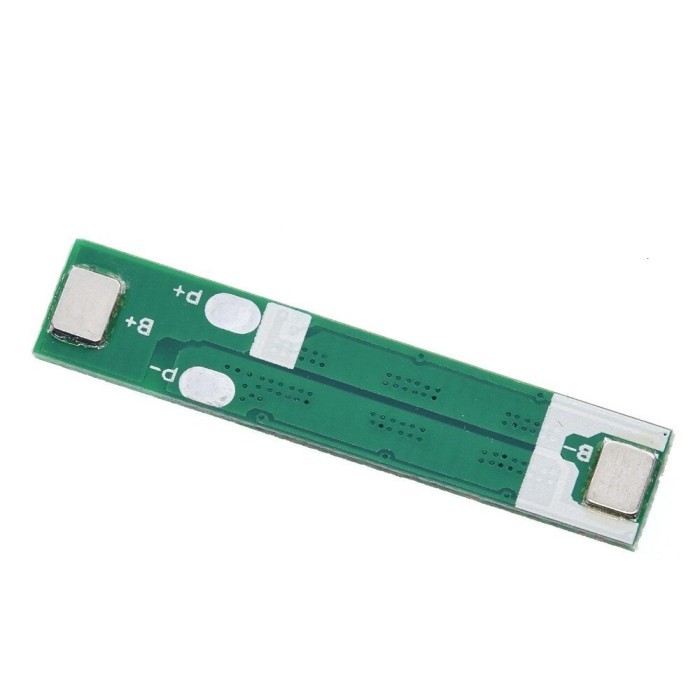

Connection instructions:
B+ is connected to the positive electrode of the battery.
B- is connected to the battery negative.
P+ output positive pole for battery pack
P- output input negative for battery pack
