BMS 1s 4.2V 3A Lithium Li-ion Li-po Battery Protection Board

Detail BMS 1s 4.2V 3A Lithium Li-ion Li-po Battery Protection Board

1S 3A BMS Battery Protection Circuit Board 1S 3A 3.7V 18650 AA AAA Lipo Li-ion Lithium Battery BMS Circuit Chargers Protection Module BMS Battery Management System

1S 3A 3.7V Lithium Battery Charger Protection Board BMS Module for 1 Piece 18650 Li-ion Battery Cell Charging 3.7v BMS Battery Protection Board 1S 3A 3.7v 18650 AA AAA Lipo Li-ion Lithium Battery BMS Charger Protection Module Board Circuit For Protect Your Battery.

Features:
High Quality
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of battery pack.
Stable performance.
Fine workmanship and durable.
Main function: over charging protection, over discharge protection, short circuit protection, over current protection function.
Usage: 1 string 3.7v lithium Lipo Li-ion 18650 battery phosphate rechargeable battery pack.

Specification:
100% Brand New

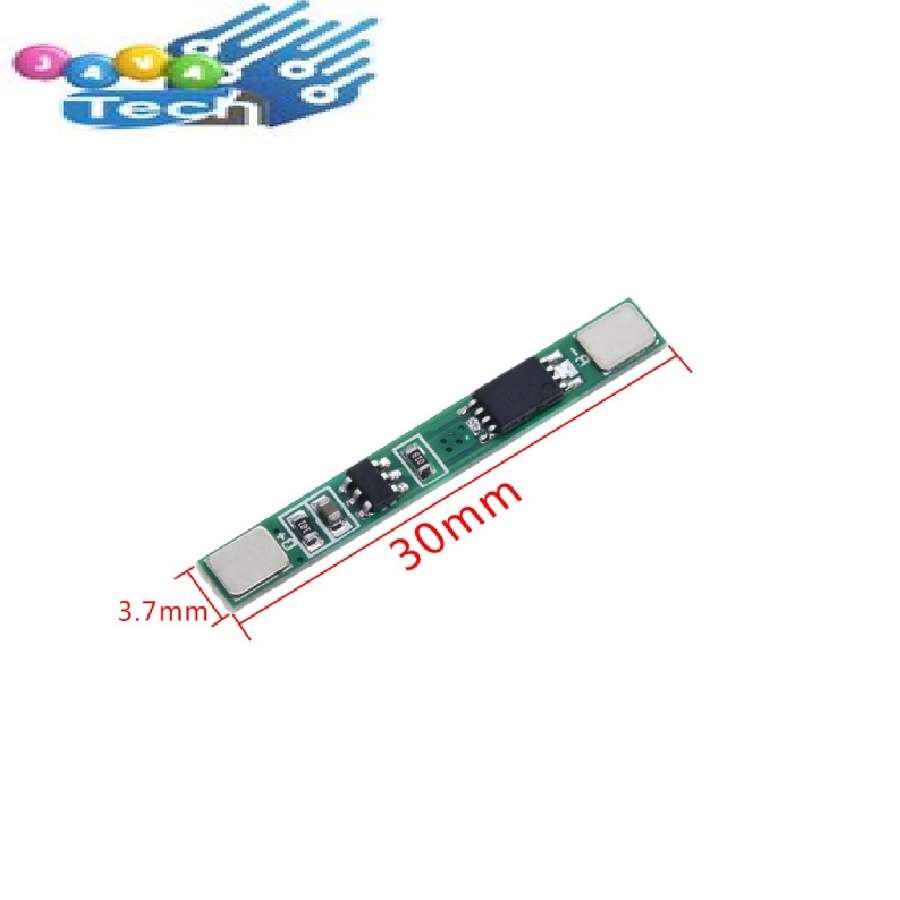

Size Approx.: 30mm x 3.7 mm
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuous charging current: 2A
Maximal continuous Discharging current: 2A
Over current protection: 3A

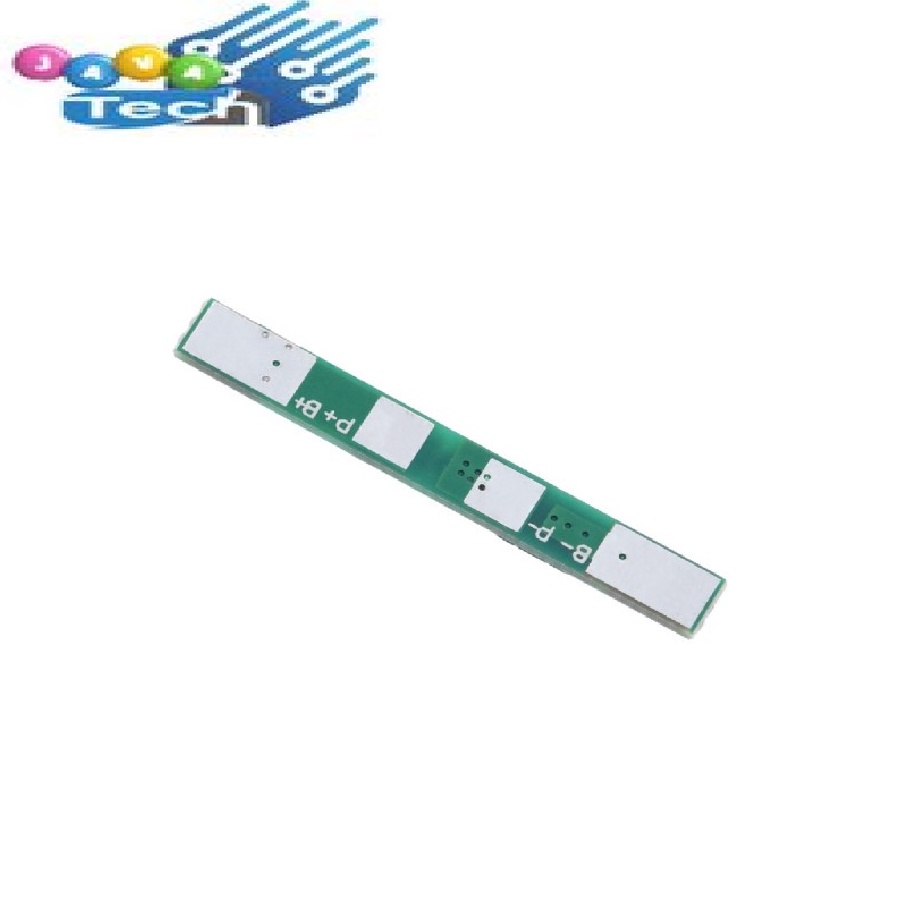

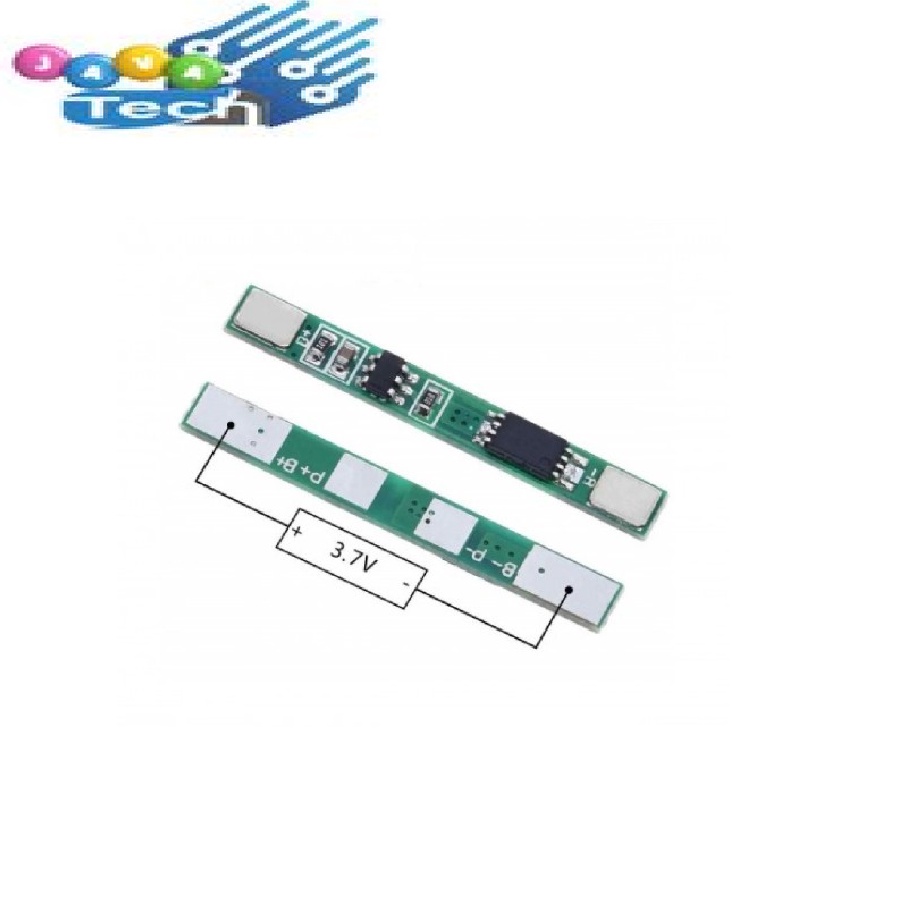

Welding point Description:
B+ : Connect to the battery positive
B- : Connect to the battery negative
P+ : Connect to the charge / discharge side of the positive terminal
P- : Connect to the charge / discharge side of the negative terminal

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
