Detail BMS 1s 4.2V 15A Lithium Li-ion Li-po 6MOS Battery Protection Board

Features:
Over charging protection, over discharge protection, short circuit protection, over current protection function

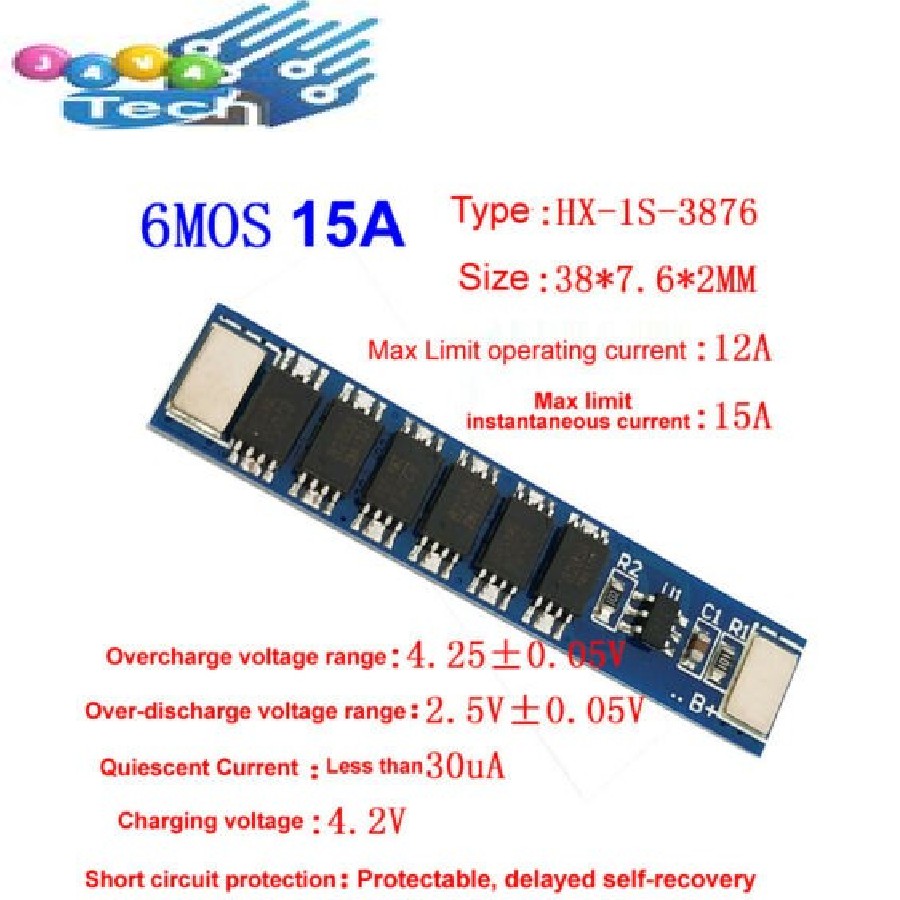

Technical parameter:
Overcharge detection voltage: 4.25 ± 0.05V
Overcharge release voltage: 4.23 ± 0.05V
Over discharge detection voltage: 2.45 ± 0.1V
Overcurrent detection current: 15A
Continuous operating current: 13A
Size: 35*7*2.0mm

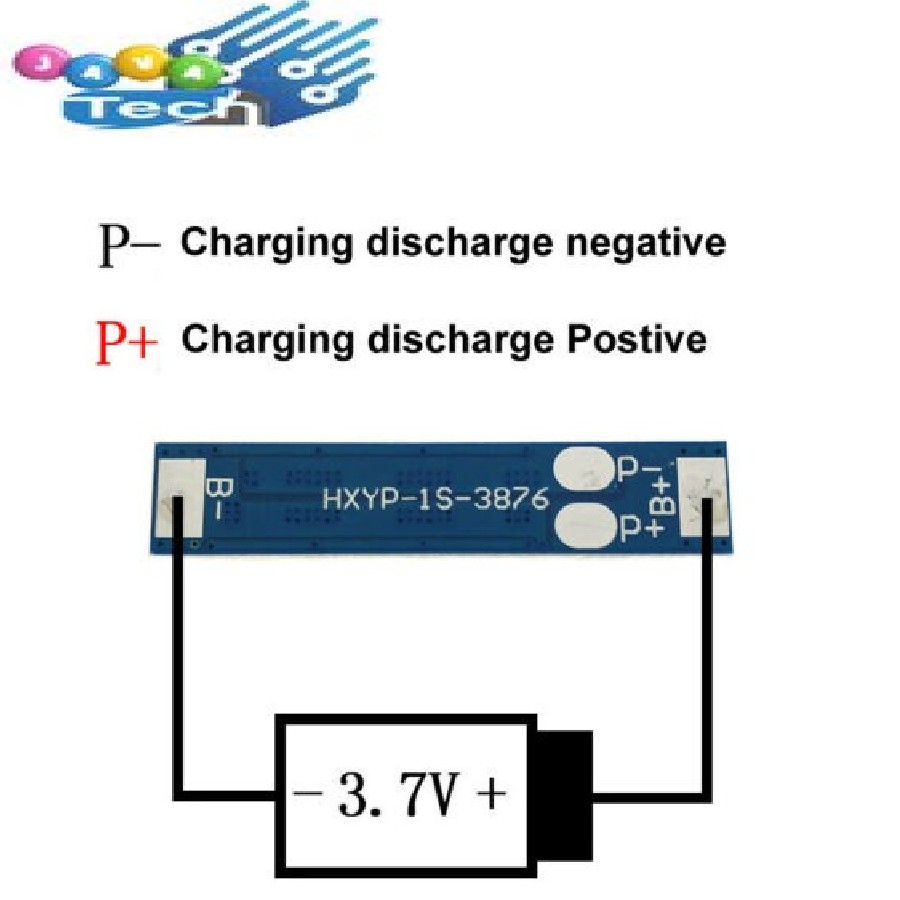

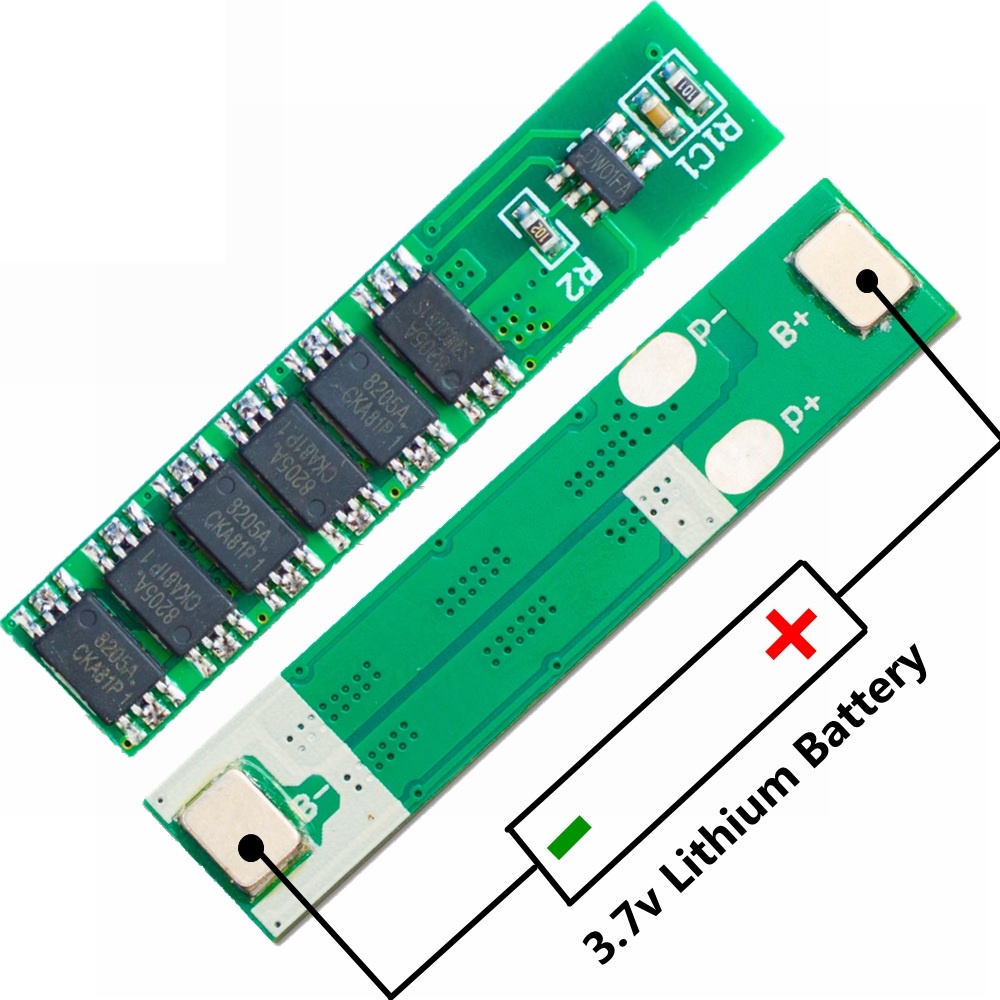

Connection description:
B+ connect to battery+
B- connect to battery+
P+ for battery output input+
P- for battery output input-
