BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board

Elektronik > Elektronik Lainnya > BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:EasyWare ElectronicsLihat semua produk Elektronik oleh EasyWare Electronics
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

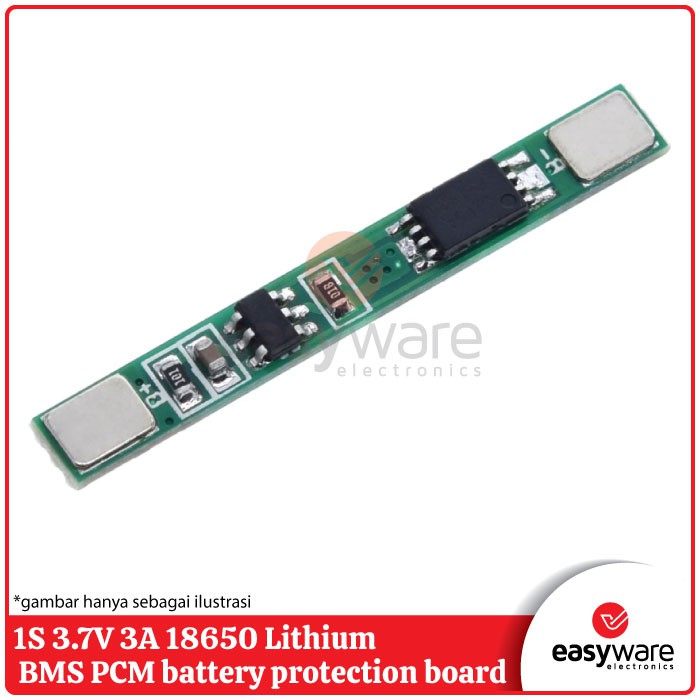

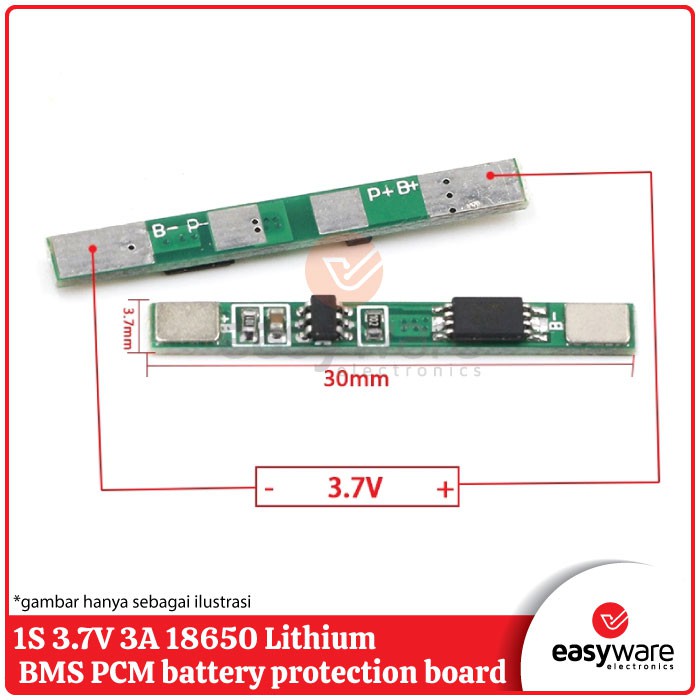

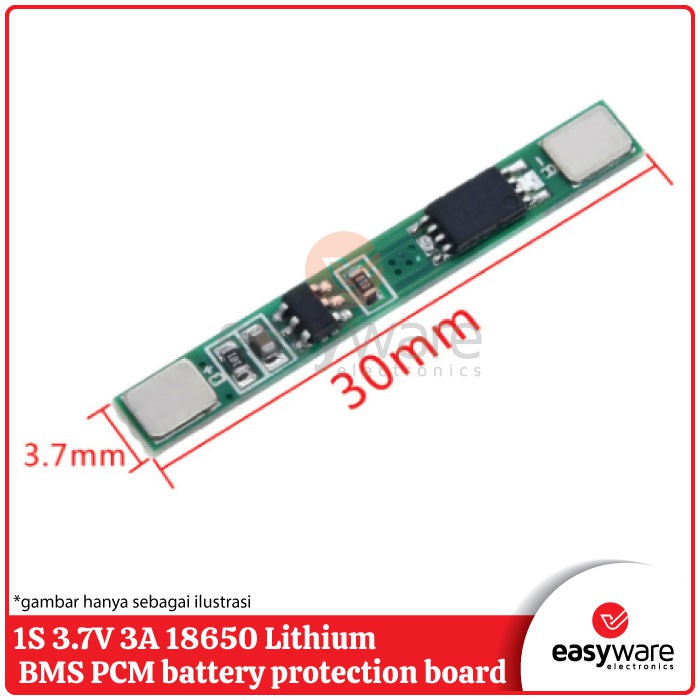

Detail BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board

Hi #RekanEasyWare ...
EasyWare Part#: EP000699

Bismillah,
Gambar produk tersebut hanya sebagai ilustrasi, foto real produk akan menyusul. Terima kasih ***

FEATURES :
- High-accuracy voltage detection circuit;
- Terminal of the charger using high voltage device;
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
- MOS transistor can control the battery charge and discharge

PARAMETERS :
- Over charge voltage: 4.250.05V
- Over charge release voltage: 4.230.05V
- Over discharge voltage: 2.540.1V
- Maximal continuous charging current: 2A
- Maximal continuous Discharging current: 2A
- Over current protection: 3A

PACKAGE :
- 1x 1S 3.7V 3A li-ion BMS PCM Battery Protection board

Gambar produk

BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
BMS 1S 3.7V 3A 18650 Li-ion BMS PCM Battery Protection board
Lihat lebih banyak informasi produk
