BMS 1S 2S 3S 25A Lithium Battery Balanced Charger Protection 18650

Detail BMS 1S 2S 3S 25A Lithium Battery Balanced Charger Protection 18650

Model proteksi:
1. Over charging (pengecasan berlebih)
2. Over discharging (pemakaian berlebih)
3. Over current (arus berlebih)
4. Short circuit (korslet)

* Feature :
1. 1S 2S 3S 25A
Bisa dipakai utk berbagai jenis susunan batere lithium:
~ 1s (single battery = 3.7v)
~ 2s (seri 2 batere = 7.4v)
~ 3s (seri 3 batere = 11.1v)

* Spesifikasi :
1. 1S 2S 3S 25A
- Overcharge voltage range: 4.25-4.35v 0.05v
- Overdischarge voltage range: 2.3-3.0v 0.05v
- Working current: 0-25A
- Working temperature: -40 s/d +50C
- Instantaneous current: 35-40A
- Storage conditions: -40 s/d +80C
- Quiescent current: less than 30uA
- Effective life: more than 30,000 hours
- Internal resistance: less than 100miliOhm
- Short circuit protection: protection, delay self-recovery

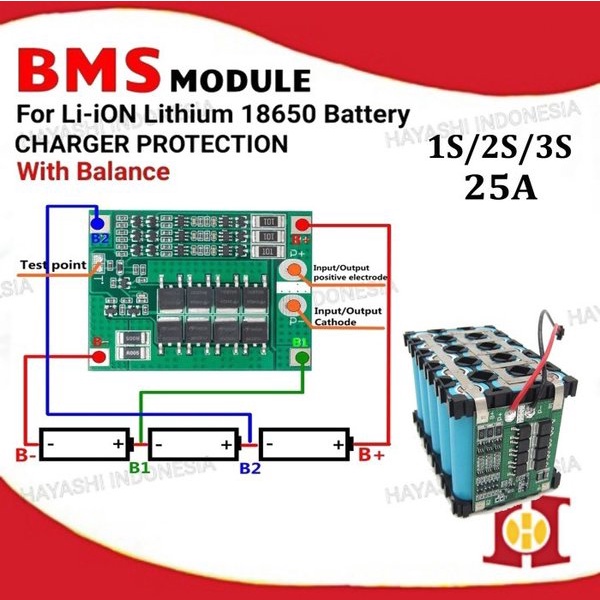

Gambar produk
