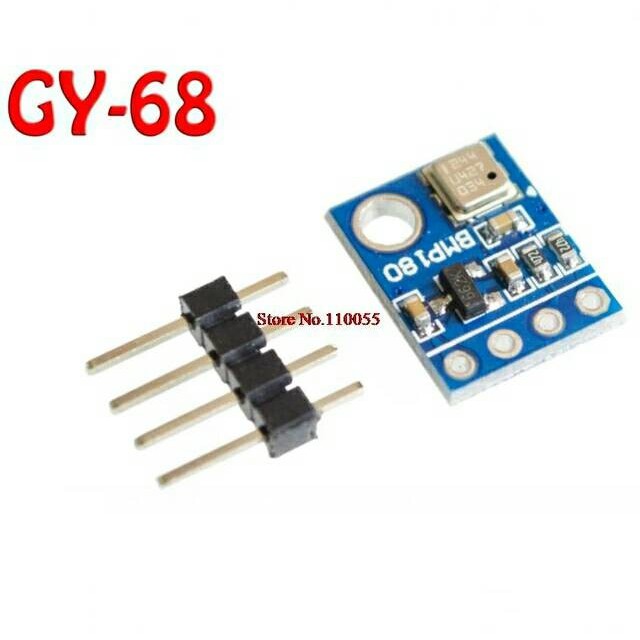

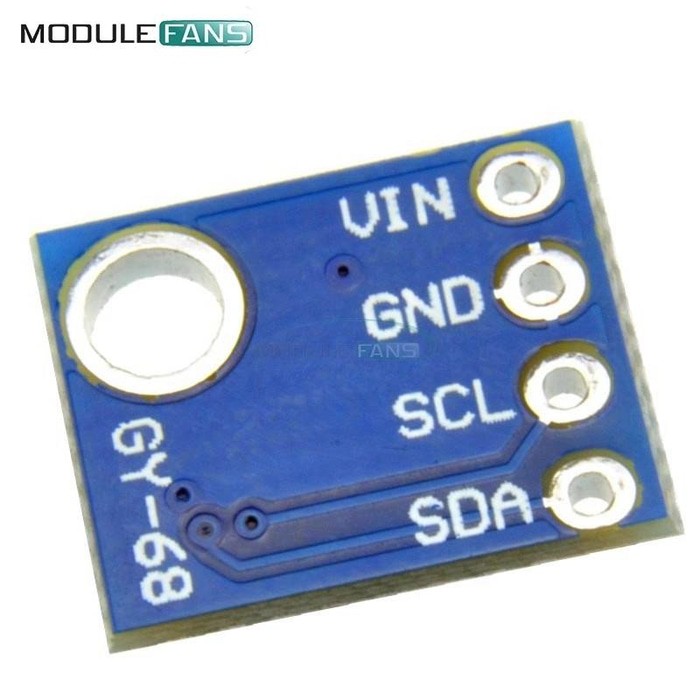

BMP180 Digital Barometric Pressure Sensor Module for Arduino

Detail BMP180 Digital Barometric Pressure Sensor Module for Arduino

hat can be directly connected to a variety of microprocessor via I2C bus.

Main features:
Pressure range: 300 ~ 1100hPa (altitude 9000 m ~ -500 m)
Power supply voltage: 1.8V ~ 3.6V (VDDA), 1.62V ~ 3.6V (VDDD)
LCC8 package: Lead-free ceramic package carrier (LCC)
Dimensions: 3.6mmx3.8x0.93mm
Low power consumption: 5uA, in standard mode
High precision : a low-power mode, the resolution of 0.06hPa (0.5 meters)
High linearity mode, a resolution of 0.03hPa (0.25 m)
I2C Interface
Temperature compensation
Lead-free, RoHS compliant
MSL 1 response time: 7.5ms
Standby current: 0.1uA
No external clock circuit

Typical applications:
GPS precision navigation (dead reckoning, and down the bridge detection, etc.)
Indoor and outdoor navigation
Leisure, sports and medical health monitoring
Weather forecast
Vertical speed indicator (rise / sink speed)
Fan power control

Gambar produk
