Detail Bluetooth Wireless Digital Power Amplifier Board PAM8403 Class D (153)

Description:

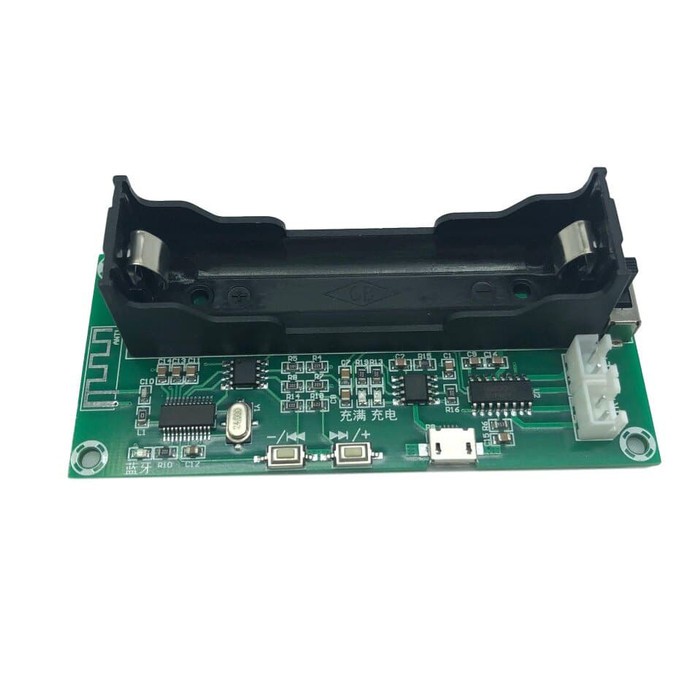

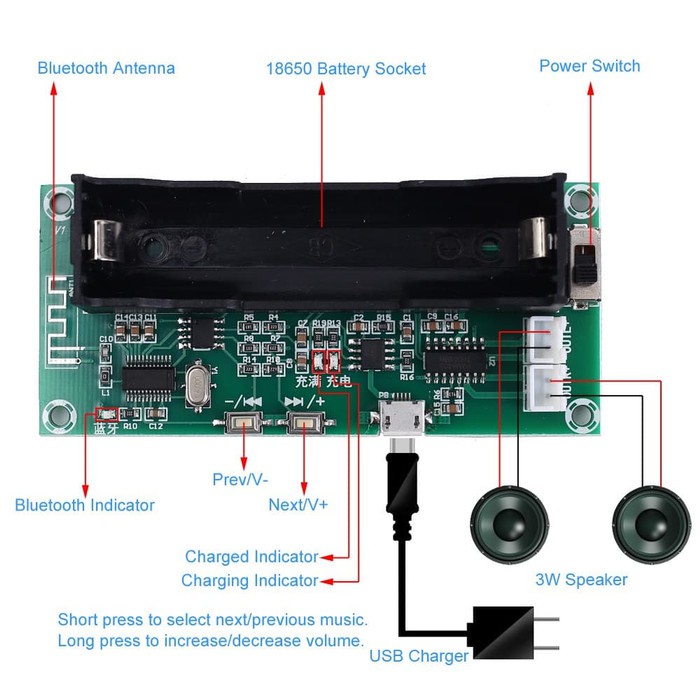

XH-A153 is a Low Power Wireless Bluetooth Digital Power Amplifier Moard.It can connect Bluetooth to play music.The product has a battery holder, which can be installed to charge the battery.

2.Feature:

18650 battery socket
Micro USB charge input
Low noise
Low power
Two-channel stereo
Built-in amplifier
Wireless Bluetooth


3.Parameter:
1>.Product Name:Low Power Wireless Bluetooth Digital Power Amplifier Board
2>.Model:XH-A153
3>.Input Voltage:DC 5V
4>.Input current:1A
5>.Stand-by Current:8~16mA
6>.Chip Model:PAM8403
7>.Chip Type:Class D
8>.Output Channel:Two-channel stereo
9>.Output Power:3W*2
10>.Output Resistance:4ohm
11>.Signal To Noise Ratio:80%
12>.Gain:4times
13>.Work Temperature:-25℃~85℃
14>.Work Humidity:5%~95%RH
15>.Size:93*42*25mm
