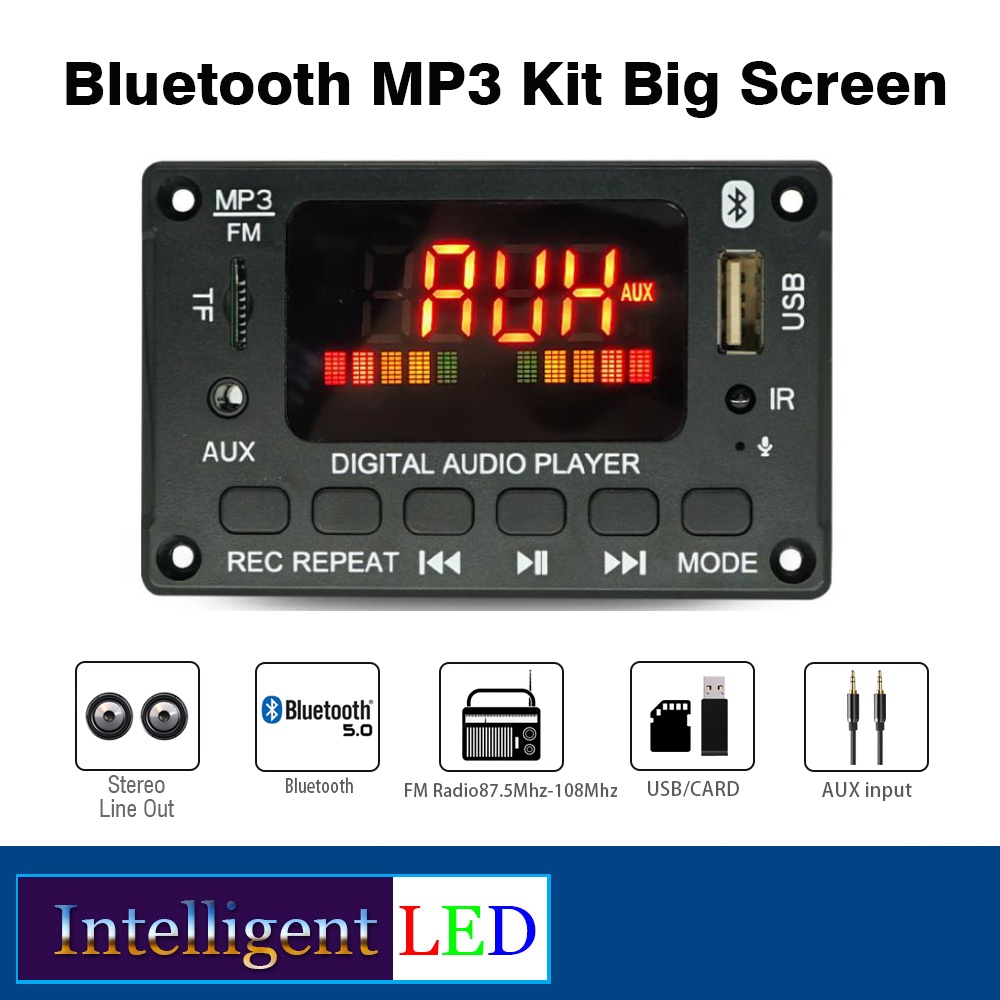

Bluetooth MP3 Player Kit USB TFT FM Radio Stereo Big Screen D118BT
Deskripsi singkat
Elektronik > Media Player > MP3 & MP4 Player > Bluetooth MP3 Player Kit USB TFT FM Radio Stereo Big Screen D118BT
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Bluetooth MP3 Player Kit USB TFT FM Radio Stereo Big Screen D118BT
Specifications :Power In : DC5V-12V
Support Audio Format : WMA, MP3, WAV, APE, FLAC

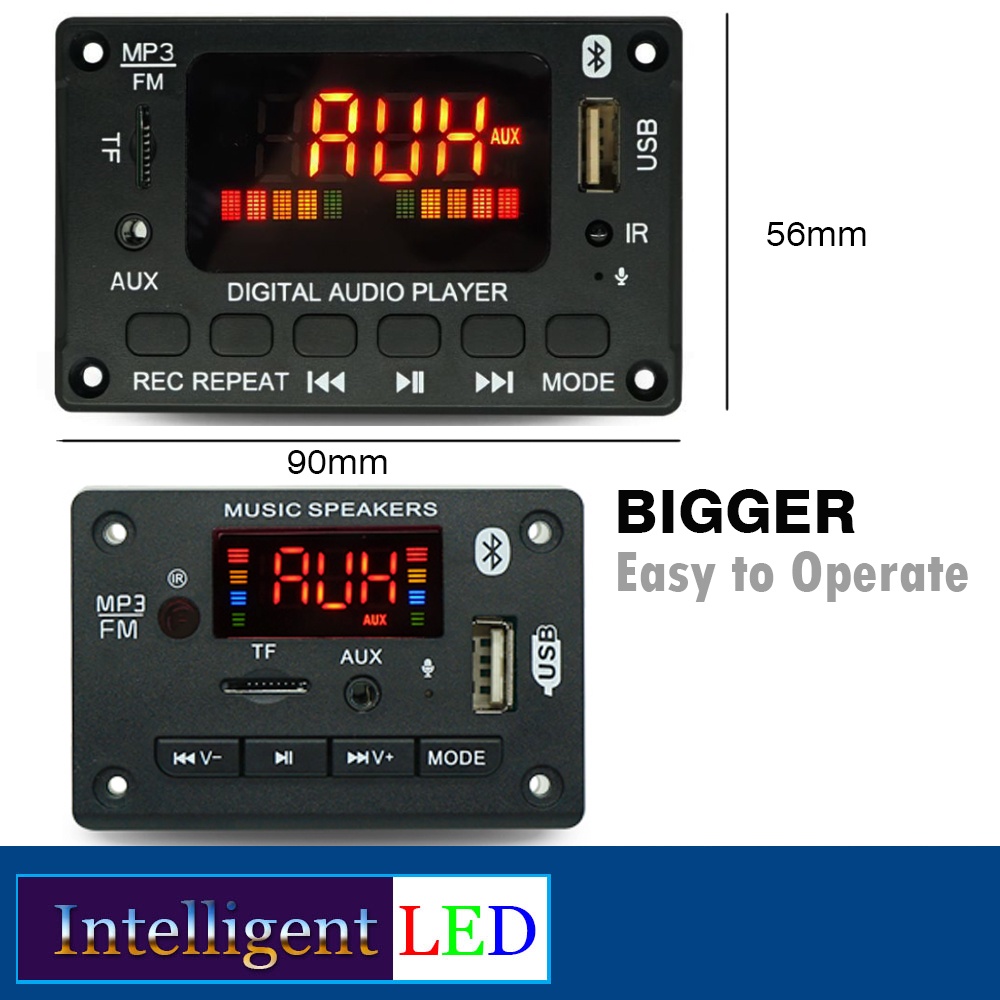

Size : 90*57mm
Material : Plastic + PCB Board
Major Functions:
1. Double decoding,support MP3/WMA/WAV format music
2. Support Wireless BT music and Wireless BT call function
3. Display with digital tube
4. Support USB/MMC/SD/MMA card
5. Power off memory function 24C02
6. Support 5-10 meters distance infrared remote control operation
7. Support FM(87.5MHZ-108.0MHZ)
8. Buttons : VOL-/ AUTO / VOL+ / MODE
9. Support LINE-IN/ LINE-OUT
10. Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working)
11. The highest volume level is 30
12. Support for pause / single loop play / replay all the repertoire
Button Operation Instructions:
1. REC button : Record bluetooth,aux in and FM radio into the USB device or TF card,and calling speaking.
2. Repeat button : Short pressing switching of repeat playback: single cycle and all songs cycle.
3. Vol- button (last song / volume reduction) : in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Bluetooth function, short press is Bluetooth one, long press is volume reduction.
4. Auto button (play / pause) : in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Bluetooth function, short press is playing / pause.
5. Vol+ button (next song / volume increase) : in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Bluetooth function, short press is Bluetooth next song, long press is volume reduction.
6.MODE button:switch between USB/SD/FM/AUX/BT functions in turn.Specifications :
Packing List :
1X MP3 Module
1X Remote + Battery
1X Power Cable
2X Speaker Cables
