Specification:

Model: JSD-520 Type

LCD display, LED safety lamp

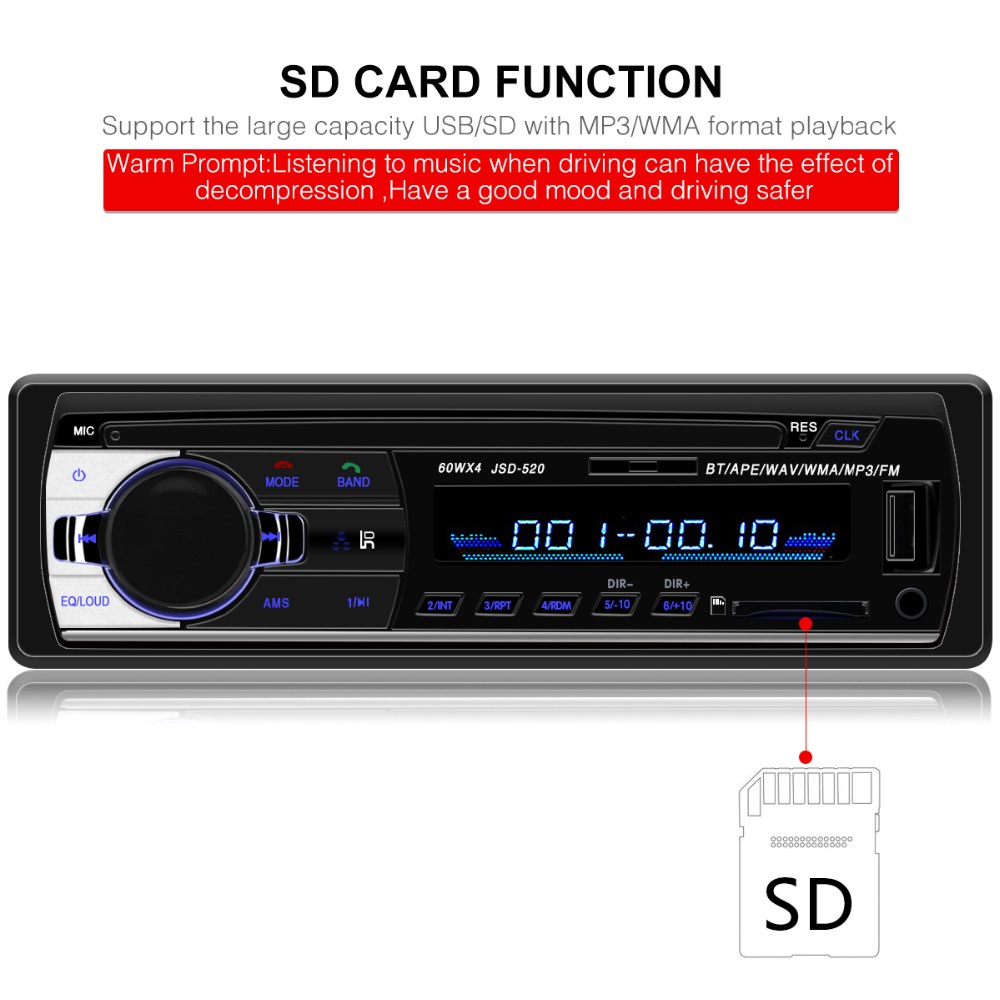

Supports playing MP3/WMA files from USB/SD card (maximum support 32GB)

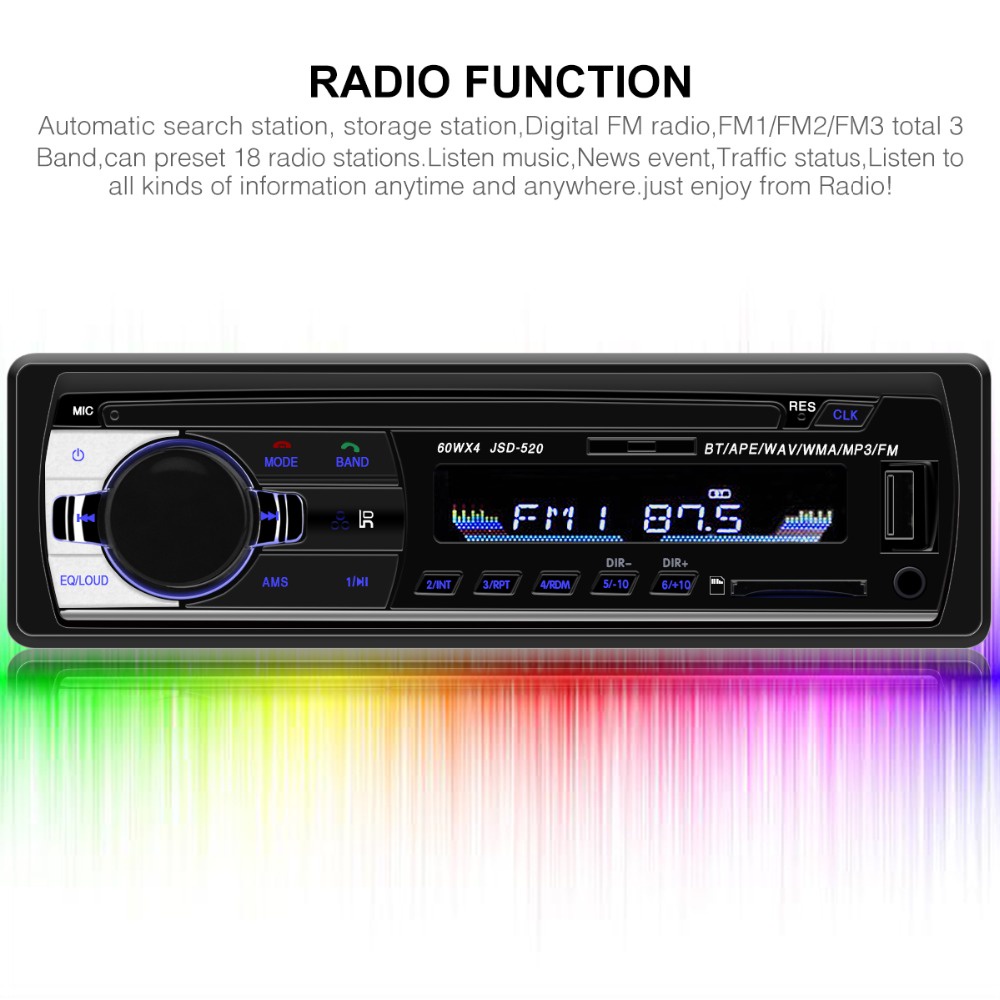

Support FM radio, automatic frequency adjustment

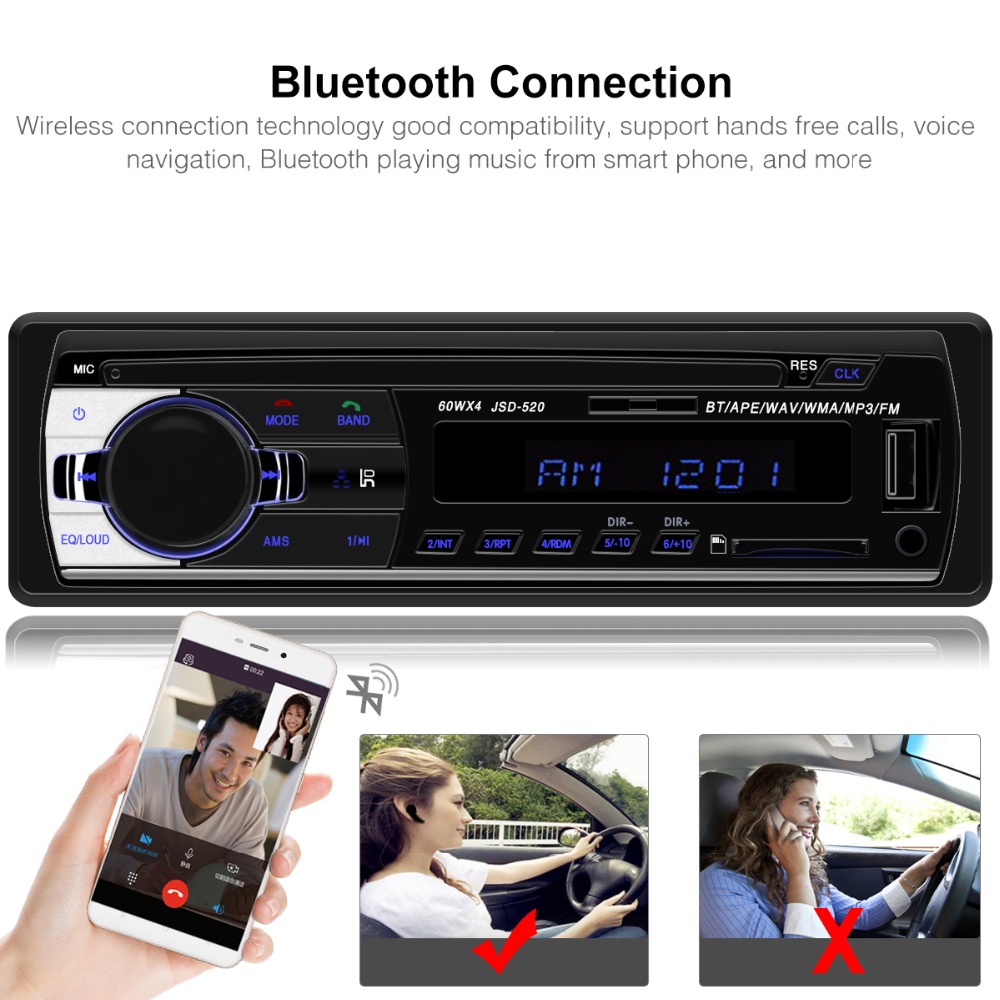

Support hands-free calling, answer or hands up on the phone after connecting the radio via

Function, play music from phone via

Volume Control/Real-time Clock Function/FM Radio/Electronic Preset Equalizer Control

AUX Audio Input

Pre-installed magazine with automatic memory

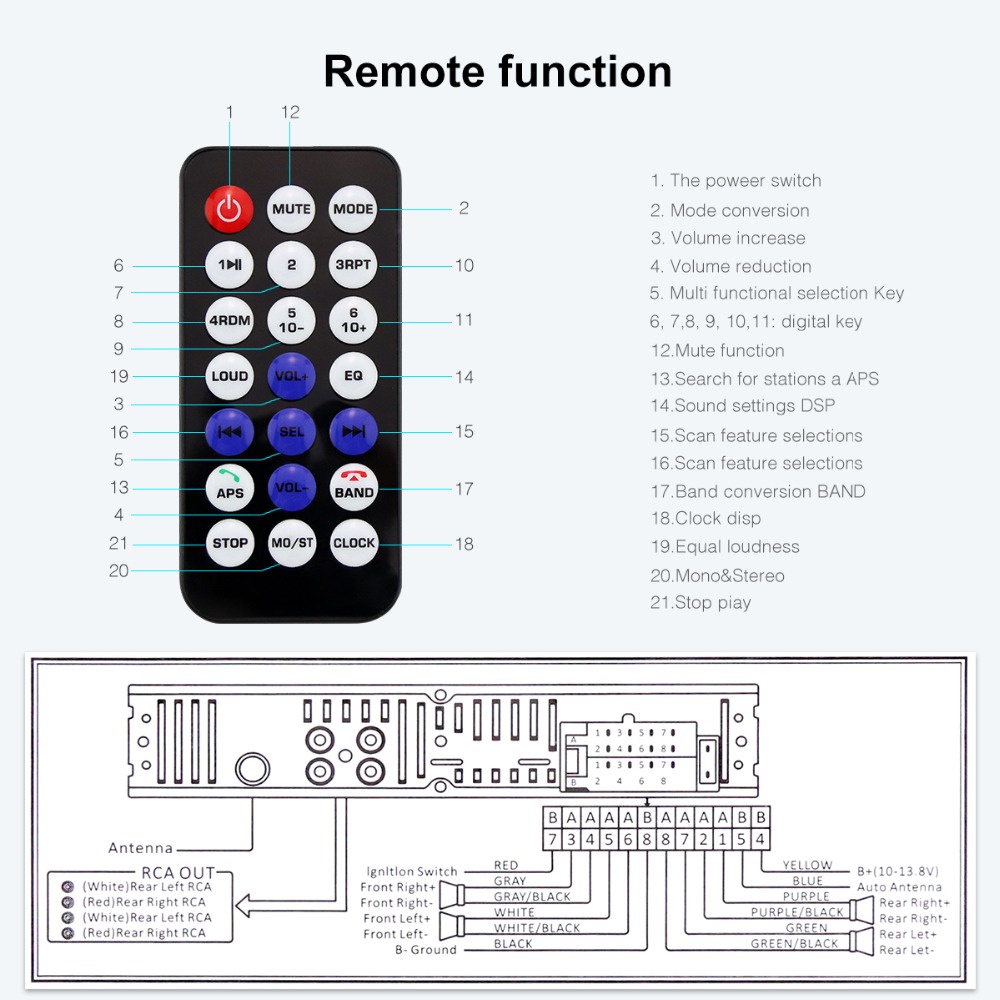

Remote Control

Power Supply: 12V - 24V

Max. Output Power: 60Wx4

FM Frequency Range: 87.5-108.0MHz

Panel Size: Approx. 18.8x5.8cm(L*H)

Installation size: approx. 17.8x12x5 cm (L * W * H)

Rear Lamp: Blue

Connection method:

Turn on the phone function, search and connect the item "CAR/btmp3"

Enter the password "0000" (if necessary)

Press the MODE button on the function

Then the MP3 player is now available for use.

Testing methods:

1) Twist the red and yellow wire together and connect to the anode. A black wire is connected to the cathode.

2) Connect one piece of wire to the horn, do not touch each other's wires.

Installation methods:

Please do not electrify the machine before connecting the wires, otherwise it will damage the machine.

A yellow wire connects to the battery anode and a black cathode.

A red wire is connected to the ignition of the car key.

If your cars have any subwoofers or external antennas, you also need to plug in a blue wire.

Others wise wrap blue wire with adhesive plaster for other car models.

The horn has a positive and negative electrode, connect them according to the methods.

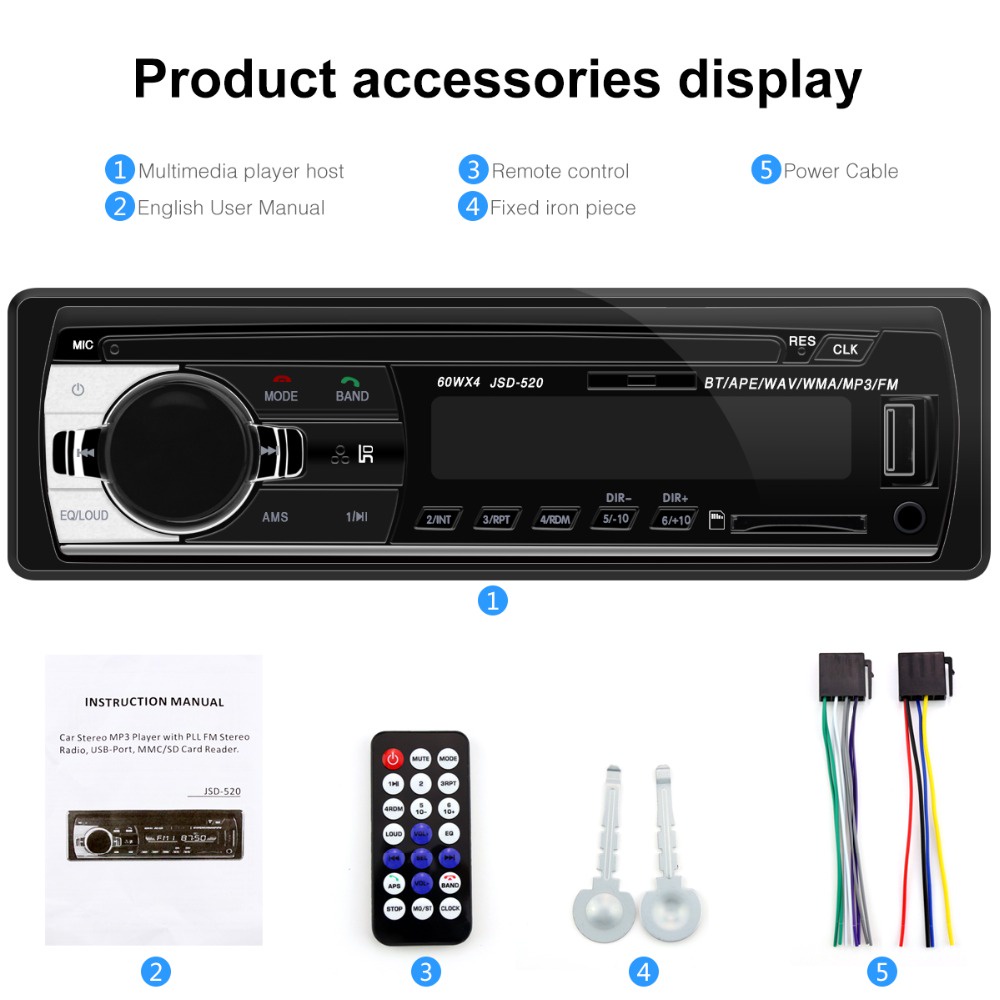

The parcel includes:

1 x MP3 player

1 x Remote Controller

1 x Cable

1 x Manual

Note:

If this stereo does not have power after installation, try connecting the red and yellow wire to the positive one.

2 antenna sockets will not affect the performance of the product.

Please check the size chart carefully before applying.

Deviations of 1-3 cm are possible due to manual measurements.

Because of the lamp monitor screen, the actual color of the item is exactly the same as the color of the item in the photo may be s the lamp ly differs due to the characteristics of the computer monitor.
