Bluetooth Car Diagnostic OBD2 V2.1 - ELM327 - OMTH9NBK Black
Deskripsi singkat
Otomotif > Perkakas & Perlengkapan Kendaraan > Peralatan Uji, Diagnosa, & Servis > Bluetooth Car Diagnostic OBD2 V2.1 - ELM327 - OMTH9NBK Black
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Bluetooth Car Diagnostic OBD2 V2.1 - ELM327 - OMTH9NBK Black
ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Works with all OBD-II compliant vehicles Wireless (Bluetooth) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL.FEATURES
Top Features
Works with all OBD-II compliant vehicles.
Wireless (Bluetooth) 5~10meters.
Software included for Palm, PDA, Mobile, Windows PC, Smartphone.Support Android systerm.
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Display current sensor data, including Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim. Long Term Fuel.Trim,Intake Manifold Pressure, Timing Advance,Intake Air, Temperature,Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associatedshort term fuel trims, Fuel System status, Fuel Pressure.
Support OBD-II protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2
Display current sensor data, including:
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...
Multi-Protocol Support:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
PACKAGE CONTENT:

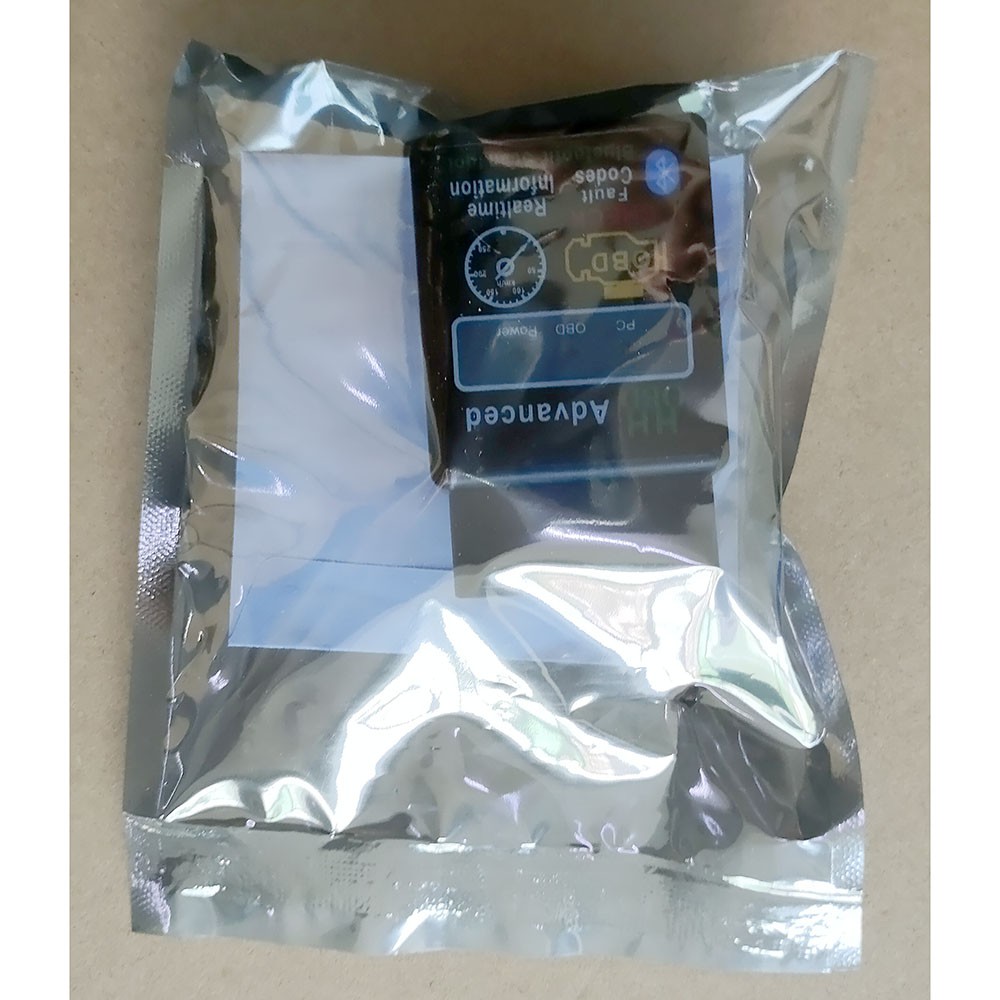

1 x Bluetooth Car Diagnostic OBD2 CAN BUS Scanner - ELM327
1 x CD Rom
