Bluetooth Car Diagnostic OBD2 V2.1 - ELM327 / Pembaca Kode Masalah ELM 327 Obd 2 bluetooth Penguji Kendaraan scanner / Alat Periksa Mobil / Diagnostic Tool Master Injeksi Semua Motor Universal Yamaha Honda / Diagnostic Diagnostik Scan Tool Murah Original

Detail Bluetooth Car Diagnostic OBD2 V2.1 - ELM327 / Pembaca Kode Masalah ELM 327 Obd 2 bluetooth Penguji Kendaraan scanner / Alat Periksa Mobil / Diagnostic Tool Master Injeksi Semua Motor Universal Yamaha Honda / Diagnostic Diagnostik Scan Tool Murah Original

SELAMAT DATANG DI CUANZO
BARANG YANG KAMI JUAL 100% ORIGINAL
🙋‍♂ BAYAR DITEMPAT (COD) 👉 Via Kurir J&T
=====================================
🙋‍♂ FREE / SUBSIDI ONGKIR By Shopee :
=====================================
ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Works with all OBD-II compliant vehicles Wireless (Bluetooth) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL.

Fitur
Banyak Keunggulan
Bekerja dengan semua kendaraan yang sesuai dengan OBD-II.
Nirkabel (Bluetooth) 5 ~ 10 meter.
Software disertakan untuk Palm, PDA, Mobile, Windows PC, Smartphone. Mendukung systerm Android.
Baca kode masalah diagnostik, baik generik maupun khusus pabrikan, dan tampilkan artinya (lebih dari 3000 definisi kode generik dalam database).

Hapus kode masalah dan matikan MIL (lampu "Periksa Mesin").
Menampilkan data sensor saat ini, termasuk RPM Engine, Nilai Beban Terhitung, Temperatur Pendingin, Status Sistem Bahan Bakar, Kecepatan Kendaraan, Trim Bahan Bakar Jangka Pendek. Bahan Bakar Jangka Panjang, Tekanan Manifold Intake, Waktu Maju, Udara Masuk, Suhu, Laju Aliran Udara, Posisi Throttle Mutlak, Tegangan sensor oksigen / trim bahan bakar jangka pendek terkait, status Sistem Bahan Bakar, Tekanan Bahan Bakar.

Mendukung protokol OBD-II: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2
Menampilkan Data Sensor Saat Ini, Seperti:
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Dan Masih Banyak Lagi

Mendukung Multi-Protocol
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
=====================================
Kelengkapan Produk
Rincian yang Anda dapatkan untuk pembelian produk ini:
1 x Bluetooth Car Diagnostic OBD2 CAN BUS Scanner - ELM327
1 x CD Rom
=====================================
Spesifikasi Bluetooth Car Diagnostic OBD2 V2.1 - ELM327
Material Plastik
Lain-lain Koneksi: OBD-II
Bluetooth


💻 Jika ada pertanyaan silahkan chat toko kami
=====================================

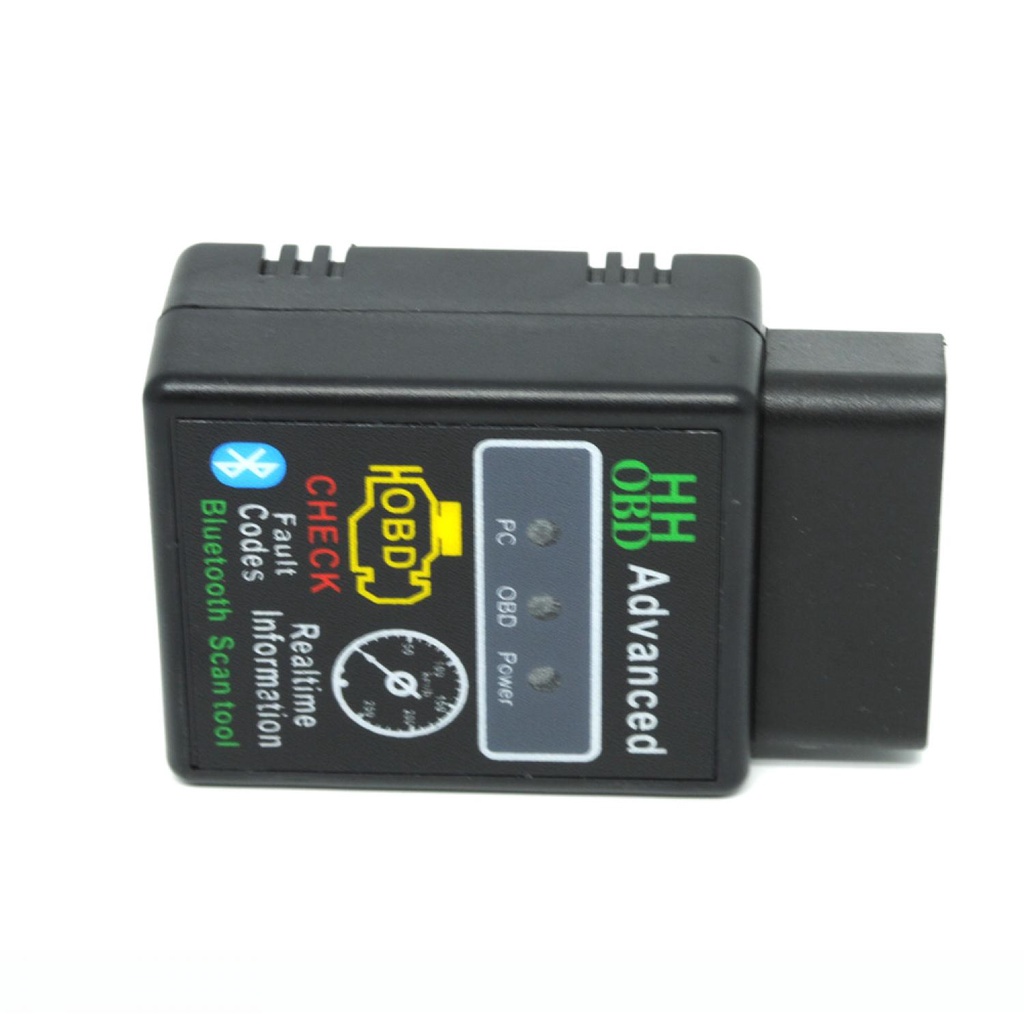

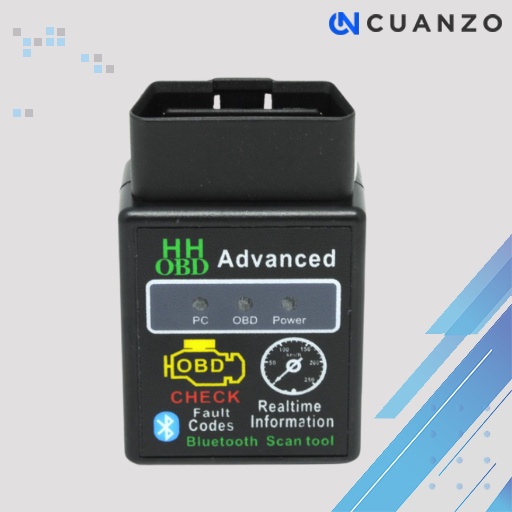

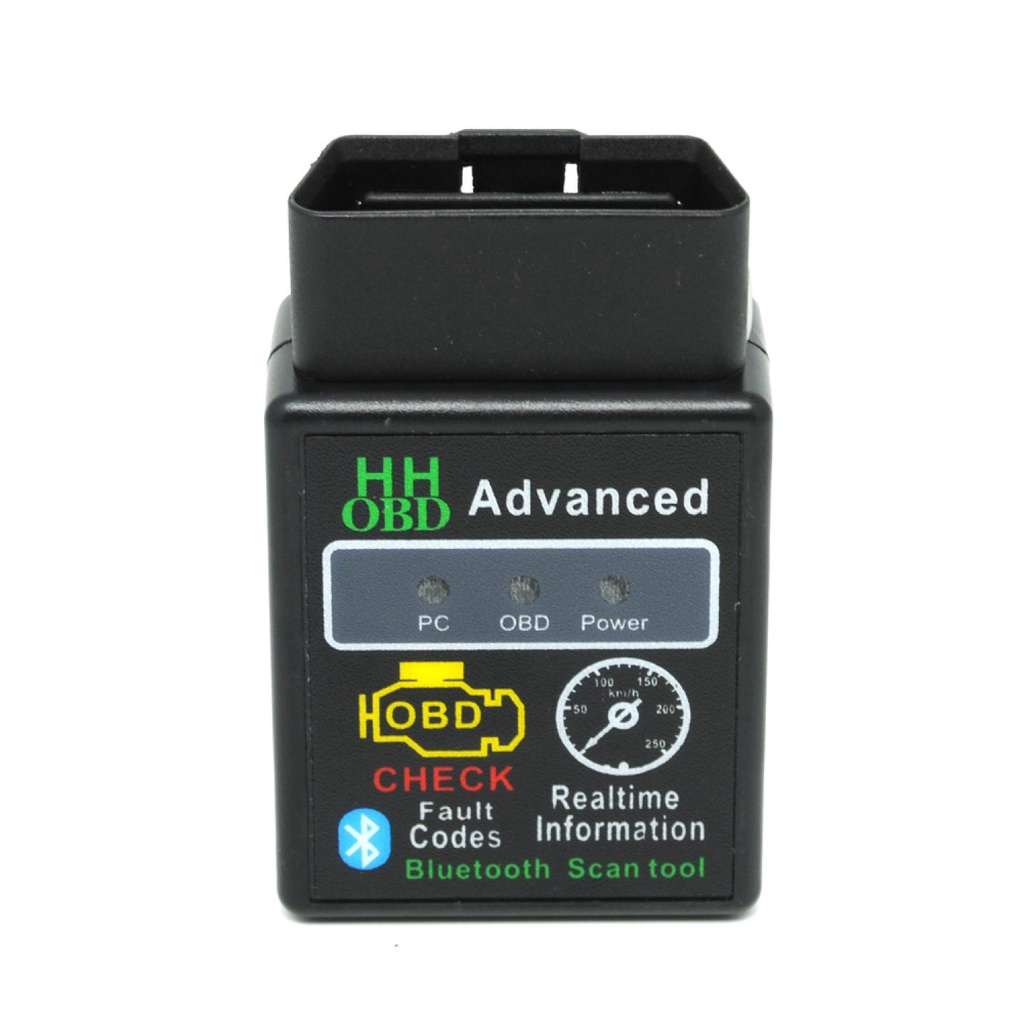

Gambar produk
