Bluetooth 5.0 Papan Dekoder MP3 Modul Audio Radio FM DC 5V-12V dengan Amplifier 2*3W untuk Perekaman Speaker Musik Jarak Jauh Mobil 3 orders

Detail Bluetooth 5.0 Papan Dekoder MP3 Modul Audio Radio FM DC 5V-12V dengan Amplifier 2*3W untuk Perekaman Speaker Musik Jarak Jauh Mobil 3 orders

Product details

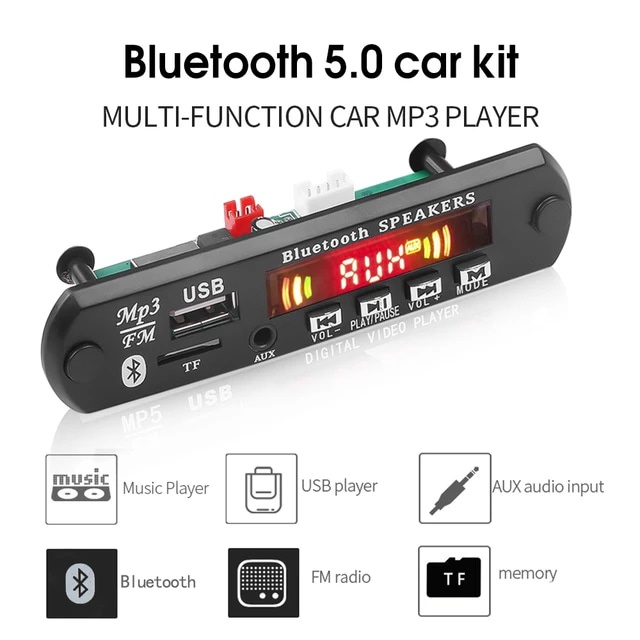

I. Main Functions

1. Dual decoding supports MP3/WMA/WAV/FLAC/APE lossless format music;

2. Support Bluetooth-compatible function, Bluetooth-compatible version 5.0;

3. Support call function;

4. With power amplifier 2*3W, connect two 3W speakers at the same time;

5. Digital color screen display;

6. Support MMC/SD/MMA and other cards, support USB interface (U disk);

7. Power-off memory function;

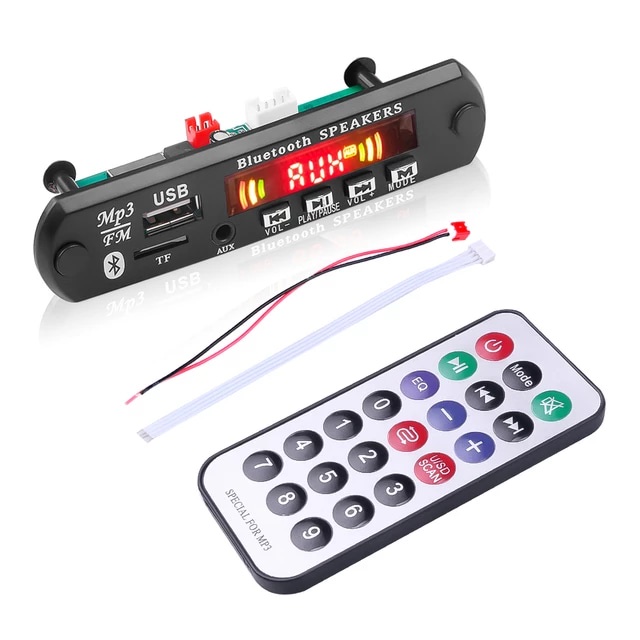

8. Support infrared remote control operation at a distance of 10 meters;

9. Support external audio source input LINE IN;

10. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);

11. Buttons: four-button multi-directional control, VOL-/AUTO/VOL+/MODE;





II. Key Operation

1. VOL-: Short press to choose the previous song; long press to decrease the volume

2. PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station

3. VOL+: Short press to choose the next song; long press to increase the volume

4. MODE: Switch of USB/TF/FM/LINE IN/Bluetooth-compatible sound

5. VOL-button (previous song/volume down): in MP3 state, VOL-short press is the previous song, long press is the volume down; in FM state, short press is up a channel number; in bluetooth-compatible under the function, a short press is the previous song on Bluetooth-compatible, and a long press is the volume down.

6. AUTO button (play/pause): in MP3 state, short press AUTO to play/pause; in FM state, short press to play/pause, short press to automatically close and save the station; short press to play in Bluetooth-compatible function /pause.

7. VOL+ button (next song/volume up): in MP3 state, short press VOL+ for the next song, long press to increase the volume; in FM state, short press to down a channel number; in the Bluetooth-compatible function Short press for the next bluetooth-compatible song, long press for volume down.

8. MODE button: switch between USB / TF / FM / audio input / Bluetooth-compatible function in turn.







III. Description of Recording Function

1. Long press the MODE button to start recording, and long press the MODE button again to cancel the recording function;

2. Long press the PLAY/PAUSE button to play the recording file;

3. When recording, it is necessary to connect a storage device, such as: U disk or TF card;



IV. Specifications

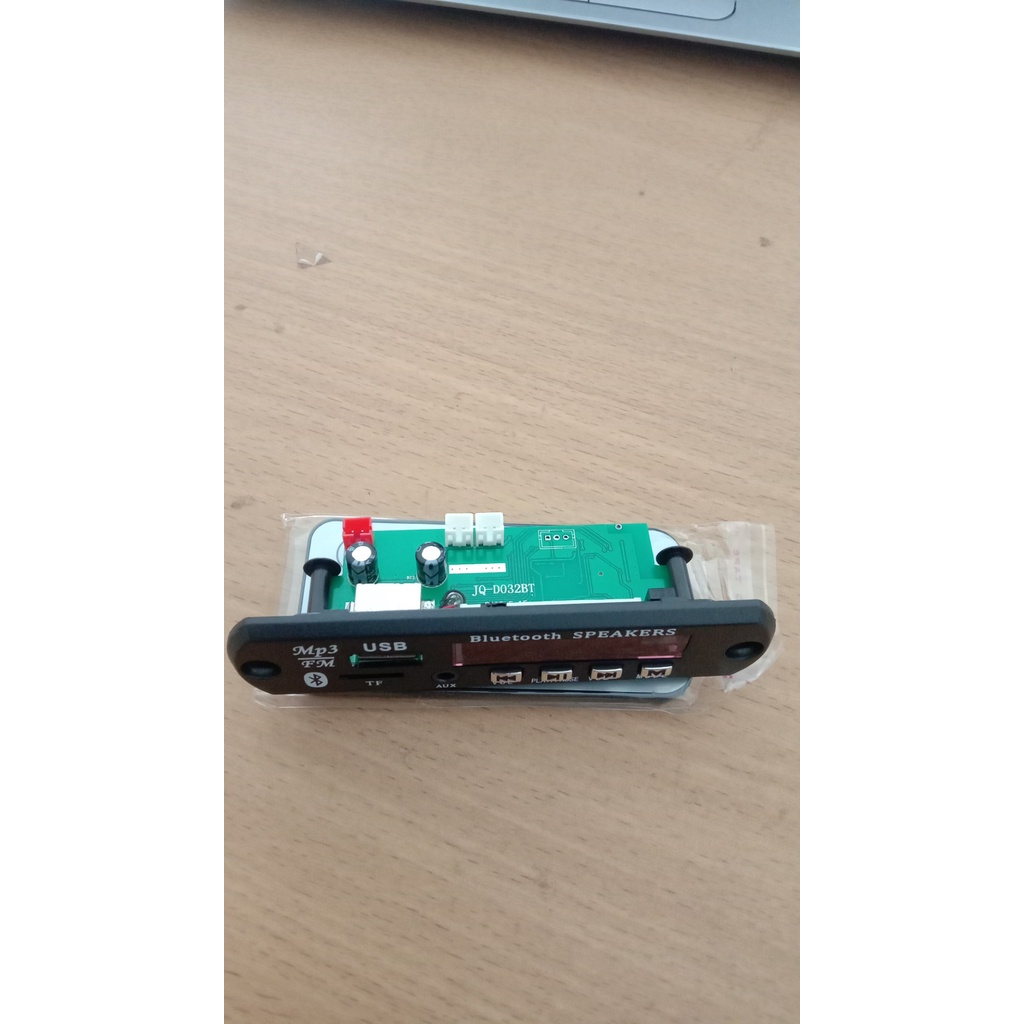

Model: JQ-D032BT with call recording 12V power supply amplifier 2*3W
