Detail BLDC 3 phase DC Brushless 380W PLC PWM Driver (1699)

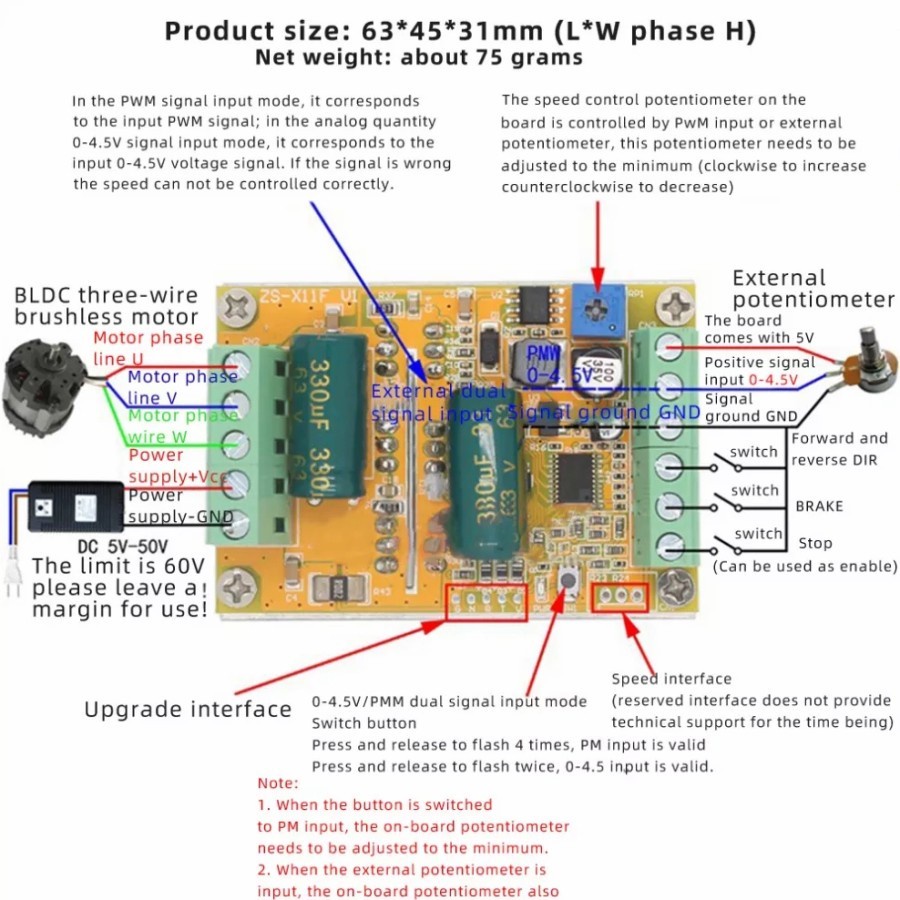

BLDC 3 phase DC Brushless 380W PLC PWM Driver (1699)- Interface Description:MA MB MC phase line output motor;
- 5V GND motherboard with its own power supply (current does not exceed 30 mA);
- VDC GND main motor power supply (external DC power supply);
- SC speed pulse signal output;Control interface forward and backward (can also drive external switch);
- VR speed signal input (the integrated potentiometer speed control can also be connected to the external 0-5V speed control;brake
- Overheat protection: Yes (more than 100, half the power is reduced)
- Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000 RPM (14-pole motor)
Motherboard specifications:
- Product Name: 380W Brushless DC Motor Driver
- type : no hall
- Operating voltage: 6.5-50V
- Maximum current: Nominal peak from 16 to 20A
- Maximum power: 380 W
- Overcurrent protection: no (external fuse required)
- Blocking protection: Yes (the current will be lowered automatically after blocking)
- Colour:yellow
- Material:plastic

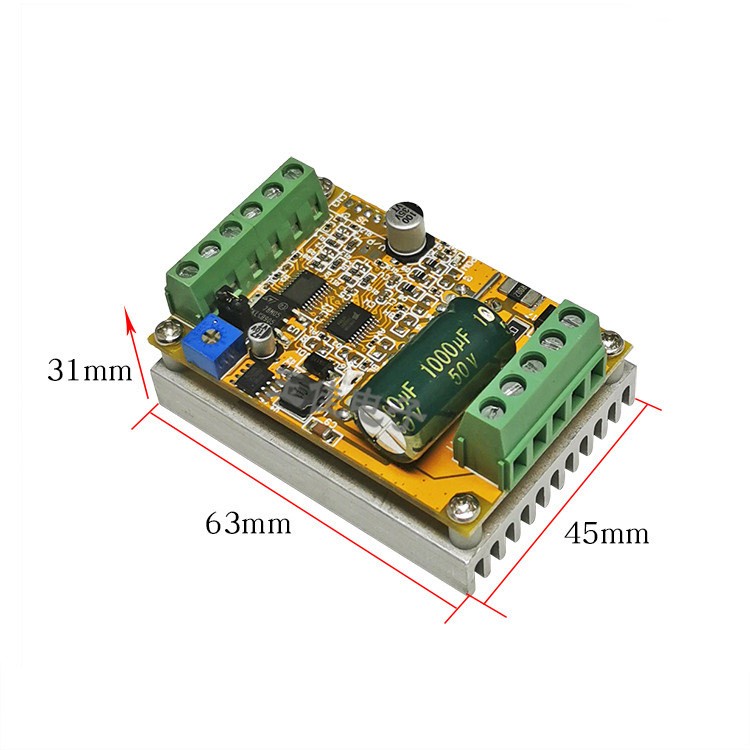

- Size:length 63 MM * width 45 MM * height 30 MM

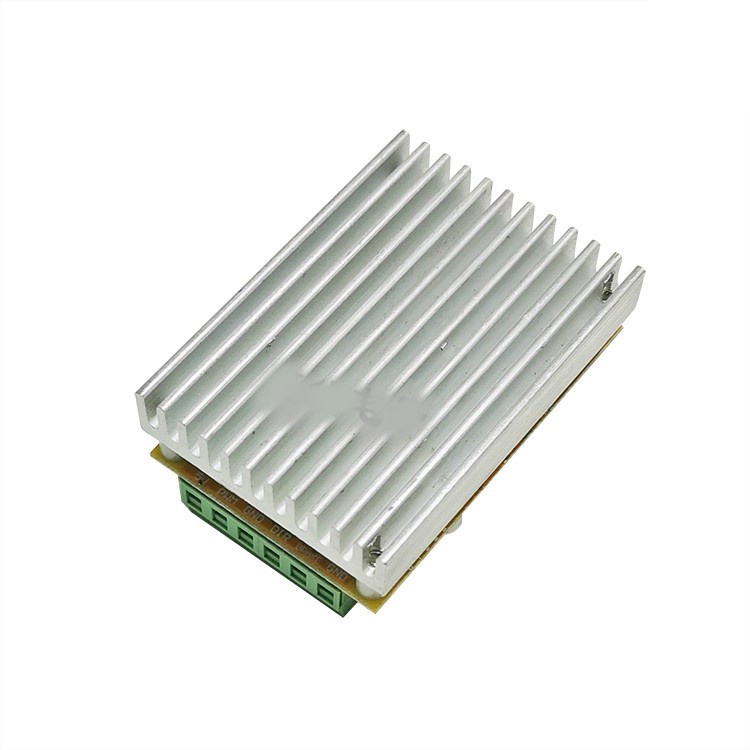

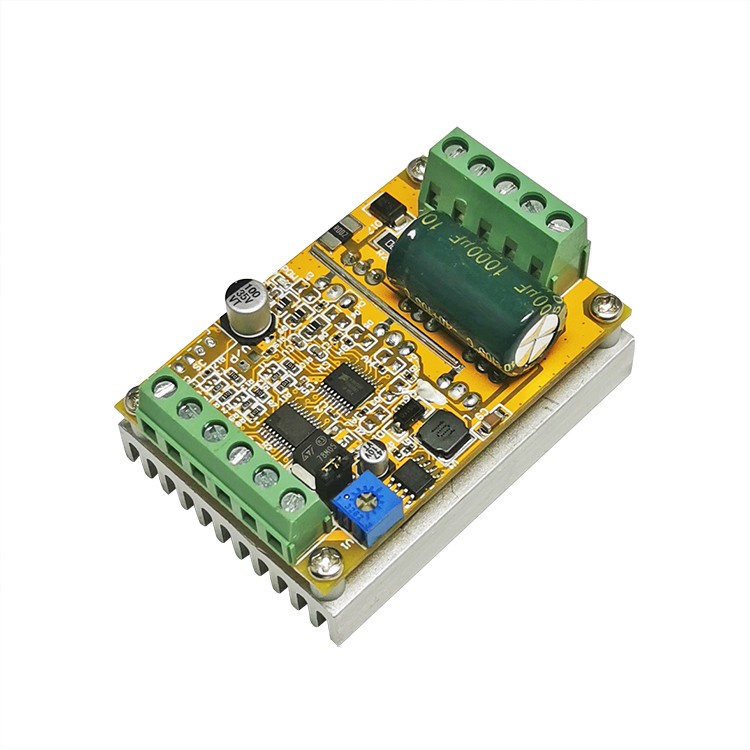

Gambar produk
