BLACKMAGIC Design Micro Converter HDMI to SDI 3G

Detail BLACKMAGIC Design Micro Converter HDMI to SDI 3G

BLACKMAGIC Design Micro Converter HDMI to SDI 3G

Description
This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.

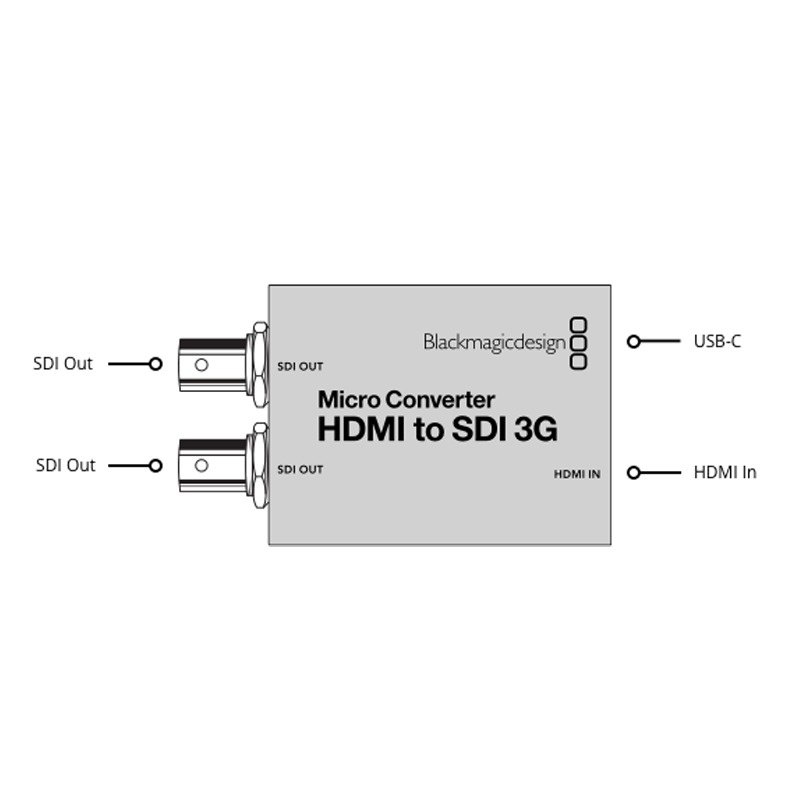

Connections
SDI Video Outputs
2 x SD, HD or 3G‑SDI.
Automatically matches the HDMI input.

HDMI Video Inputs
HDMI Type A in.

Multi Rate Support
Auto detection of SD or HD.

Updates, Configurations and Power
USB Type‑C.

Reclocking
Yes

Micro Converter HDMI to SDI 3G
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M

SDI Video Rates
SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.

SDI Color Precision
4:2:2

SDI Color Space
YUV

SDI Auto Switching
Automatically detects SD, HD and 3G-SDI

HDMI Video Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI Color Precision
4:2:2

HDMI Color Space
YUV
