Black Panther H61 Socket 1155

Detail Black Panther H61 Socket 1155

Deskripsi Black Panther H61 Socket 1155
Garansi resmi 2 tahun.
Motherboard ini "Hanya support" sampai dengan Processor Intel SandyBridge 32nm.
(Tidak support Processor Intel Pentium IvyBridge 22nm seperti G2030).

Jadi sebelum memesan motherboard ini pastikan processor anda bukan IvyBridge 22nm (spt G2020, G2030, i3 3220, i3 3240, i5 3470 dst).

Untuk spek jelasnya bisa membuka web dr motherboard Black Panther

CPU
INTEL LGA 1155 Socket
Support INTEL®Sandy Bridge
INTEL®Series Processors(32nm).
Chipset INTEL ®H61 Express Chipset.
Memory Dual Channel DDR3 memory technology
2*240-pin DDR3 DIMM slots
Supports DDR3 1333/1066
non-ECC,un-buffered
memory Max 8GB.
Expansion Slots 1*PCI Express x 16 slot
2*PCI Express x1 slots
Storage Embedded INTEL®H61 Chipset:
4*Serial ATA2 3GB/s coonectors.
Audio 6-channel HD Audio CODEC
Ethernet LAN PCI-E Gigabit LAN
USB Embedded 8*USB 2.0/1.1
Special Feataures 3+1+1 Phase CPU Power Support
INTEL® H61 Express Chipset
Rear Panel I/O 4*USB 2.0/1.1 ports
1*PS/2 keyboard/MS port
1*RJ-45 port
1*Audio I/O port
1*Coaxial Output
1*DVI Port & 1*VGA port
Internal I/O 4*USB 2.0/1.1 headers for 4
USB 2.0/1.1 port
CPU / Chassis Fan connectors
1*8-pin ATX 12v power connector
1*24 pin ATX Power connector
1*COM port
1*HDMI_SPDIF header
BIOS AMI 32MB SMT Flash ROM
Form Factor Micro-ATX Form Factor (245mm X 180mm)

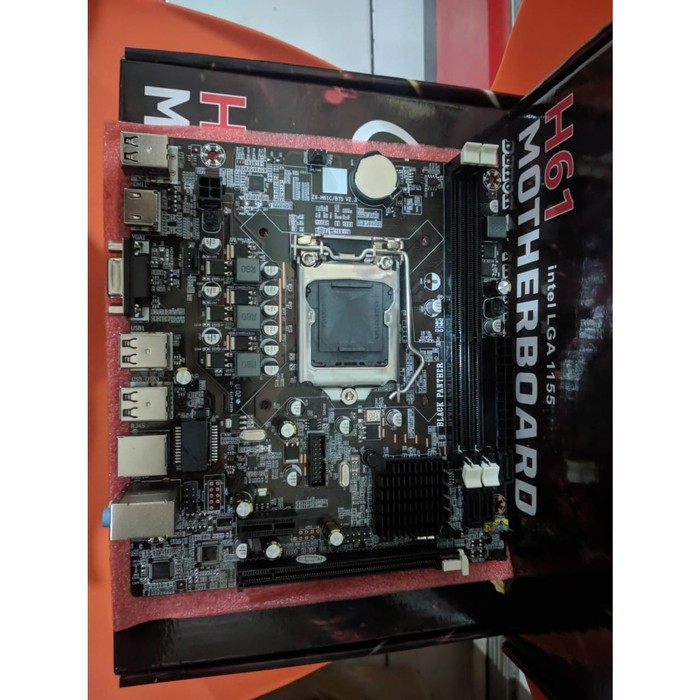

Gambar produk
