Black housing dupont connector 4P 4 pin housing connector 2.54mm

Elektronik > Elektronik Lainnya > Black housing dupont connector 4P 4 pin housing connector 2.54mm
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Black housing dupont connector 4P 4 pin housing connector 2.54mm

Hi #RekanEasyWare ...
EasyWare Part#: EP001035

Catatan:
- Foto asli stok EasyWare Electronics.
- Harga untuk 1pcs dan belum termasuk Metal Pin Terminal (dijual terpisah)
- Kualitas dijamin high quality, datasheet tersedia, mangga bisa dibandingkan dengan konektor yang dijual ditempat lain dengan harga yang setara.

Spesifikasi:
- Poles: 4 Pin
- Pitch: 2.54mm
- Current Rating: 3A AC, DC
- Voltage Rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Withstand voltage: 1500V AC/minute
- Applicable wire: AWG #26 to #22
- Applicable PCB thickness: 1.6mm

Kelengkapan:
- 1x 2.54mm 4P Dupont Connector

Gambar produk

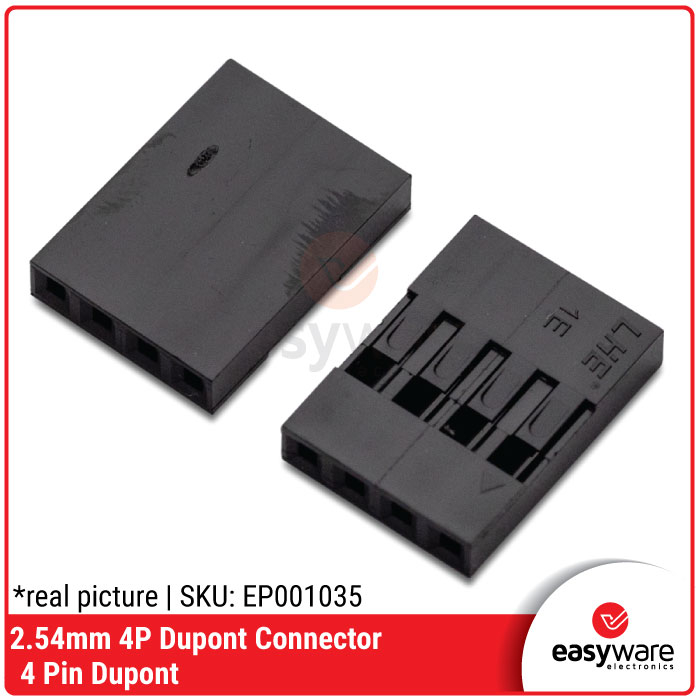

Black housing dupont connector 4P 4 pin housing connector 2.54mm
Black housing dupont connector 4P 4 pin housing connector 2.54mm
Black housing dupont connector 4P 4 pin housing connector 2.54mm
Black housing dupont connector 4P 4 pin housing connector 2.54mm
