Detail ⚡⚡Hidrolik Elektrik Linear Actuator Putter Electric putter Actuator Linear Motor Moving Stroke Linier Aktuator 12V DC 900N/1500N Kerro


Video perkenalan produk ⚡BISA COD⚡12V DC 900N/1500N Linear Actuator Putter Electric putter Actuator Linear Motor Moving Stroke Linier Aktuator MMY. Sumber: Shopee.

Linier Actuator Putter dengan pengerak Motor 12V DC
Bisa maju mundur dengan perubahan polaritas pada motor penggerak
dapat di-drive menggunakan Motor Driver L298N/L293D atau driver type lain

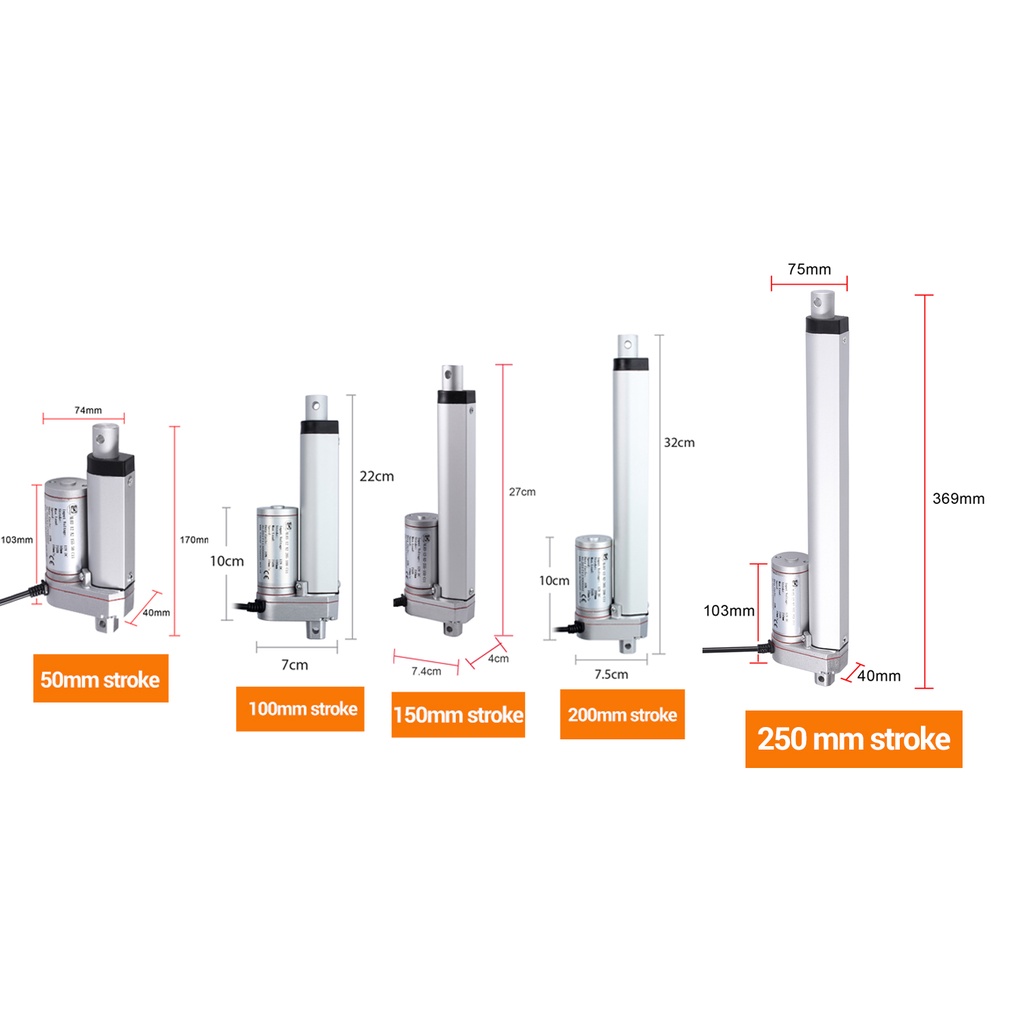

👑 Tersedia 4 Varian jarak Stroke

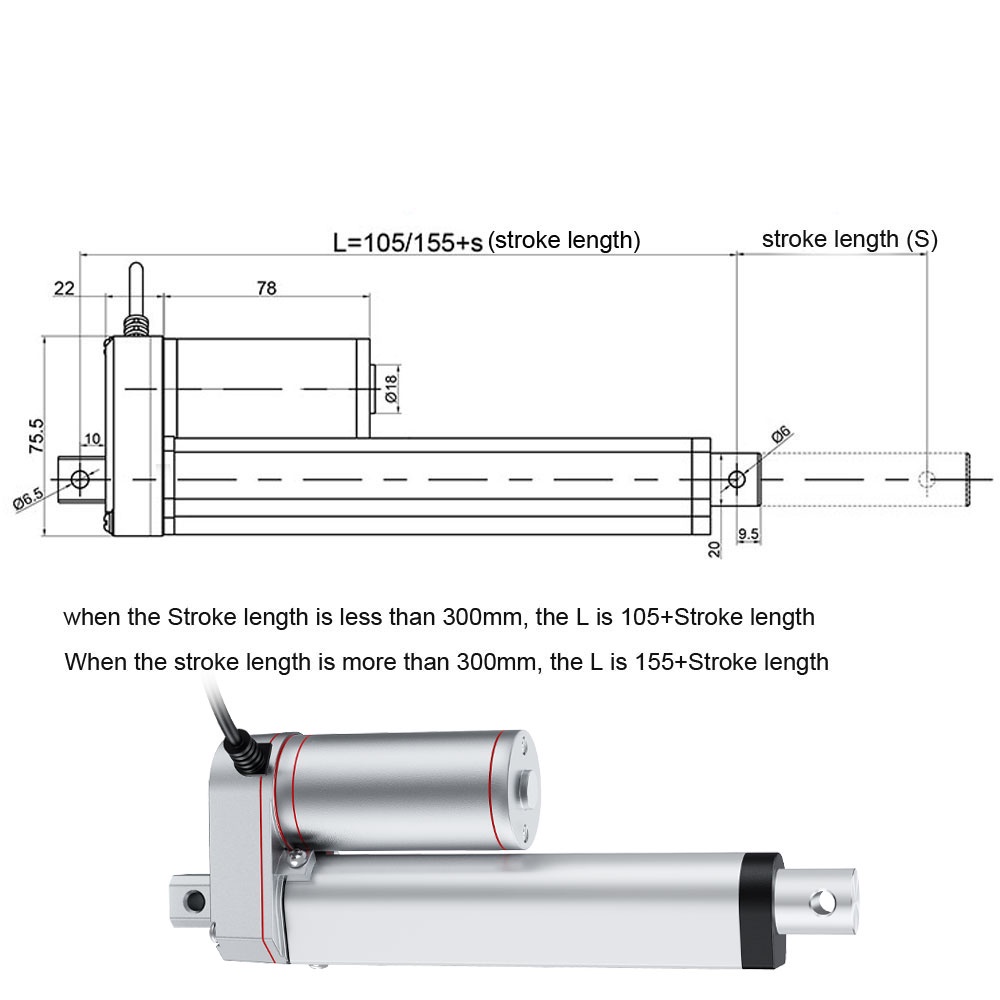

10cm (900N 10mm/s) : Panjang awal : 21cm, Panjang full stroke : 30cm
20cm (900N 10mm/s) : Panjang awal : 30cm, Panjang full stroke : 51cm
30cm (900N 10mm/s) : Panjang awal : 42cm, Panjang full stroke : 70cm
10cm (1500N 7mm/s) : Panjang awal : 21cm, Panjang full stroke : 30cm
20cm (1500N 7mm/s) : Panjang awal : 30cm, Panjang full stroke : 51cm

*Panjang awal = panjang dari bawah hingga atas saat posisi as stroke masuk ke dalam seluruhnya.
*Panjang Full Stroke = panjang dari ujung bawah ke atas saat as stroke keluar maksimal.
*Ukuran Body aktuator : PxL = 2.5x3.5cm

👑 Specification:
Motor type: permanent magnet dc motor drive
Rated voltage :12VDC
Maximum thrust/pull: 900N
Self-locking force: 200KG
Speed:10mm/s
Effective stroke :100/200
Standard protection level: IP54
Base noise design, noise level below 42dB
Ambient temperature:-26 to 50℃

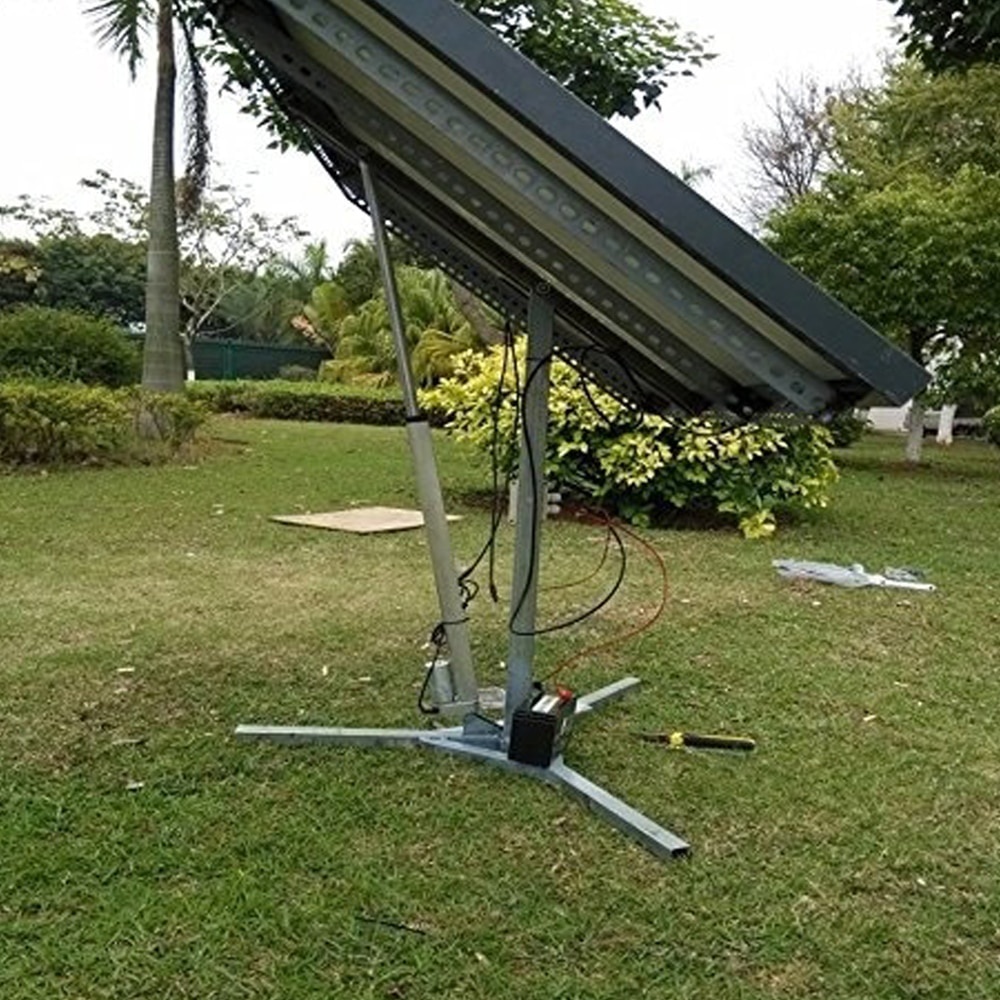

Applicable machinery: electric car, doors and Windows, etc

Technical Parameters:

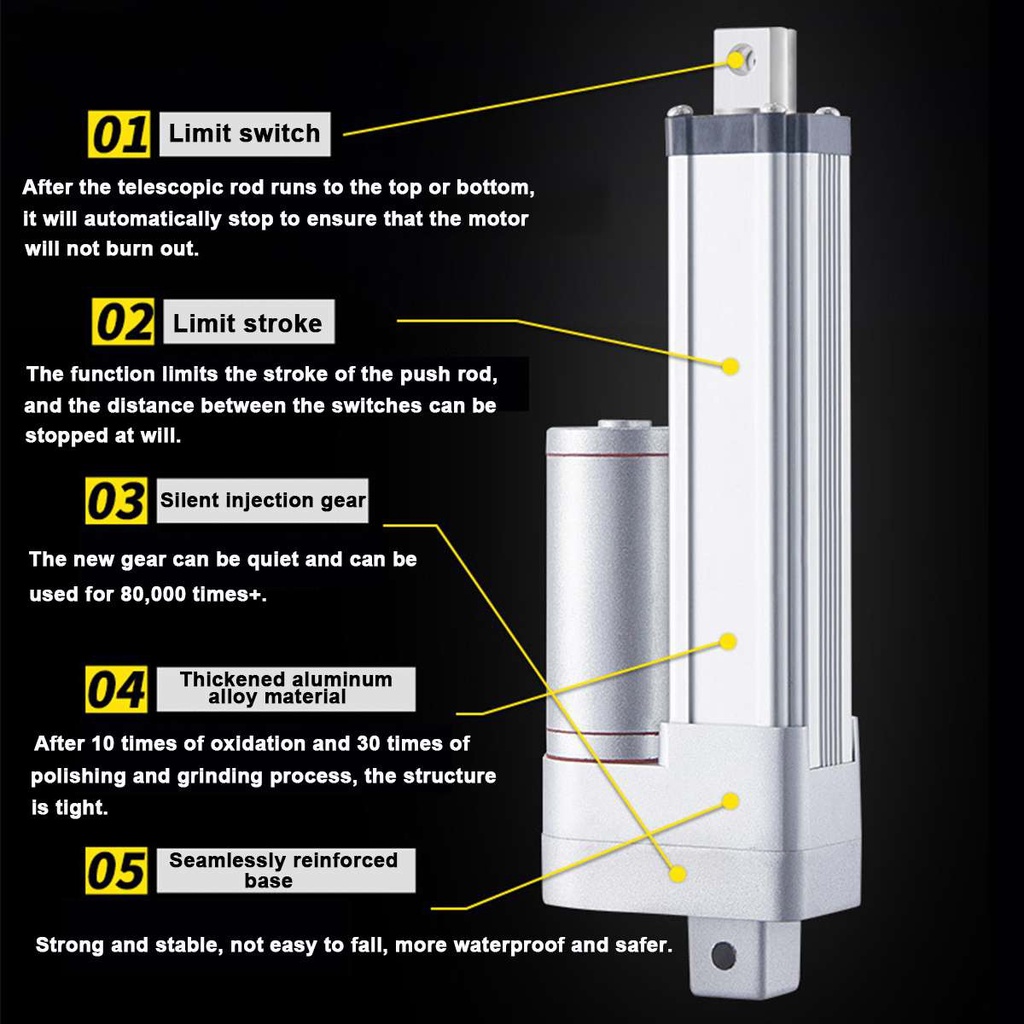

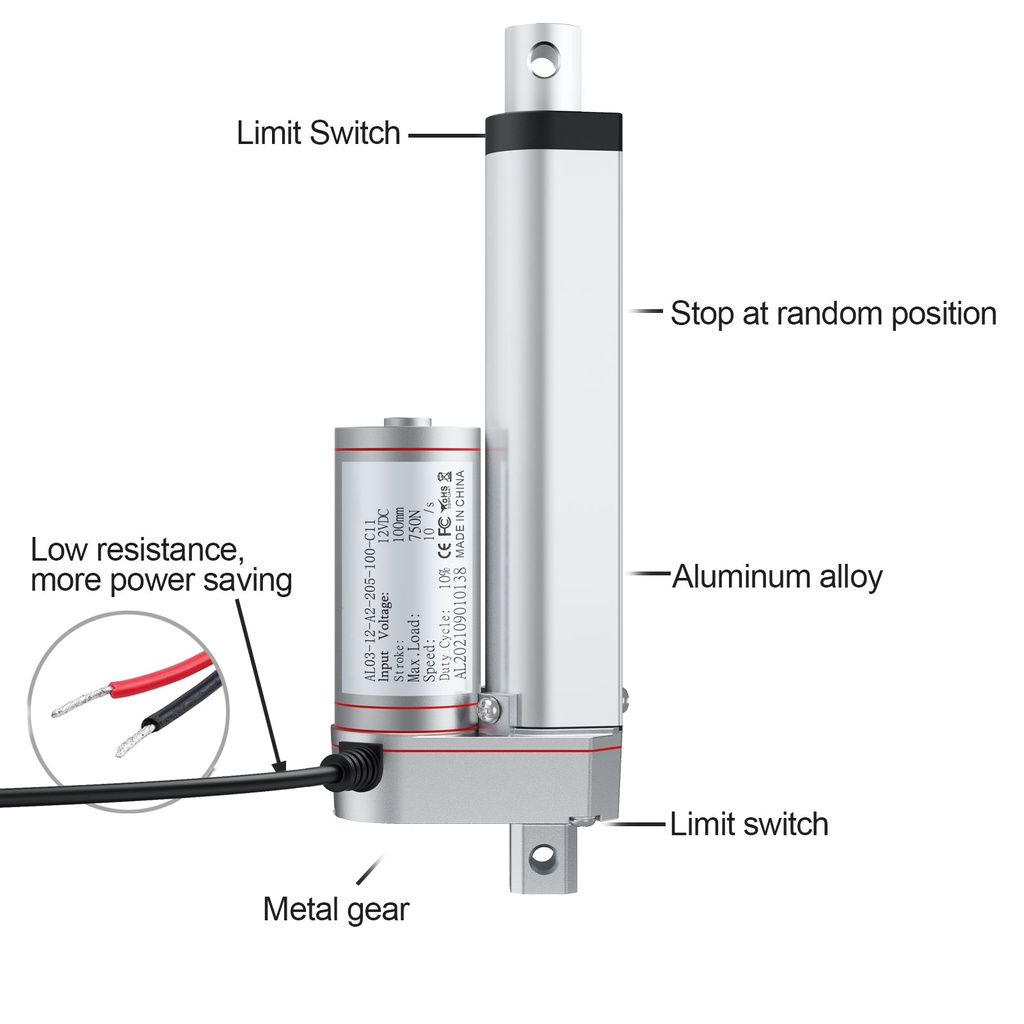

Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity.
The motor will not idle. Cut off the power, it can be stop at any position, with self-locking function.
The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
Ambient temperature -25°C to +65°C.
Standard protection class: IP54.
Low noise design, noise level less than 50dB.
Please do not disassemble the machine.
Product features: drive other objects to push, pull, rise, drop.
Product Applications: TV lift tables, Massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

Notice:
Before use, first recognize whether the motor voltage is correct. If it is a DC motor, then also consider that the power supply current is sufficient.
Do not store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
When soldering is required on the positive and negative power supply's motor
terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time.
Do not deform the plastic.
When installing the motor, pay attention to whether the screws are too long and the
company must not over-press the long screws to the parts inside the motor.
