[birth] TYPE-c poe splitter usb 48v to 5v power over ethernet 802.3af for raspberry [ID]

Detail [birth] TYPE-c poe splitter usb 48v to 5v power over ethernet 802.3af for raspberry [ID]

Note:
The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.

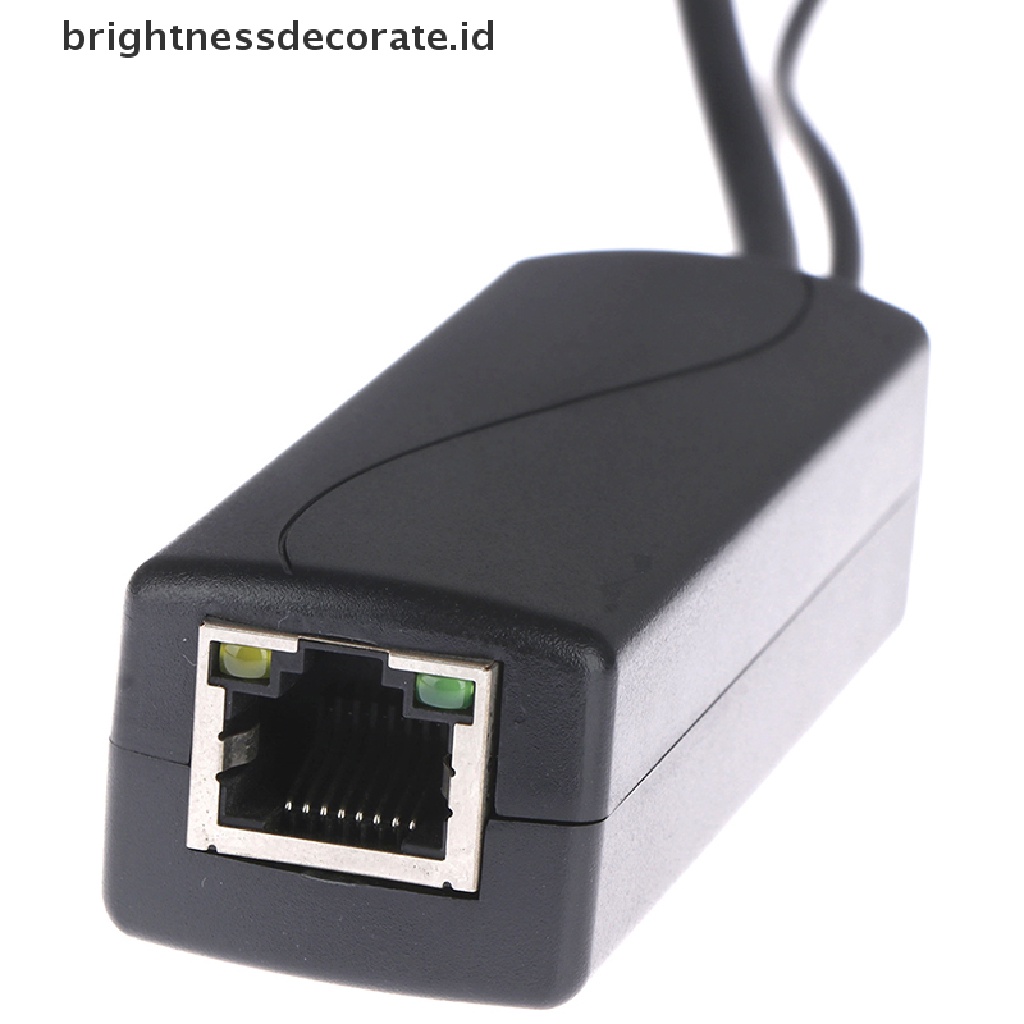

RJ45 female INPUT Port:
Support the IEEE 802.3af/at the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter
Specification:
Compliant with IEEE802.3af/at
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male

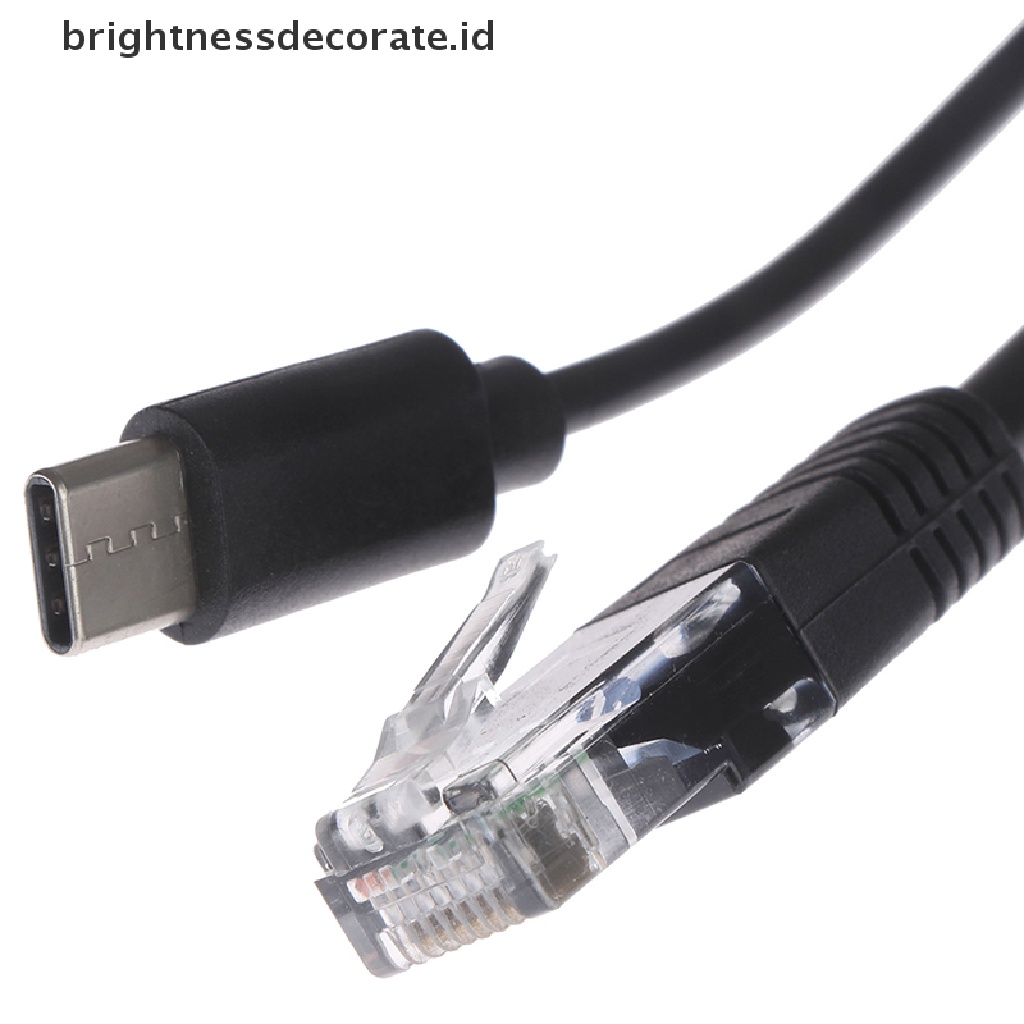

Power Output Port: USB TYPE-C Power Plug
Data Transfer Rate: 10/100Mbps
Data Pin: RJ45 pin 1236
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃
Item Included:

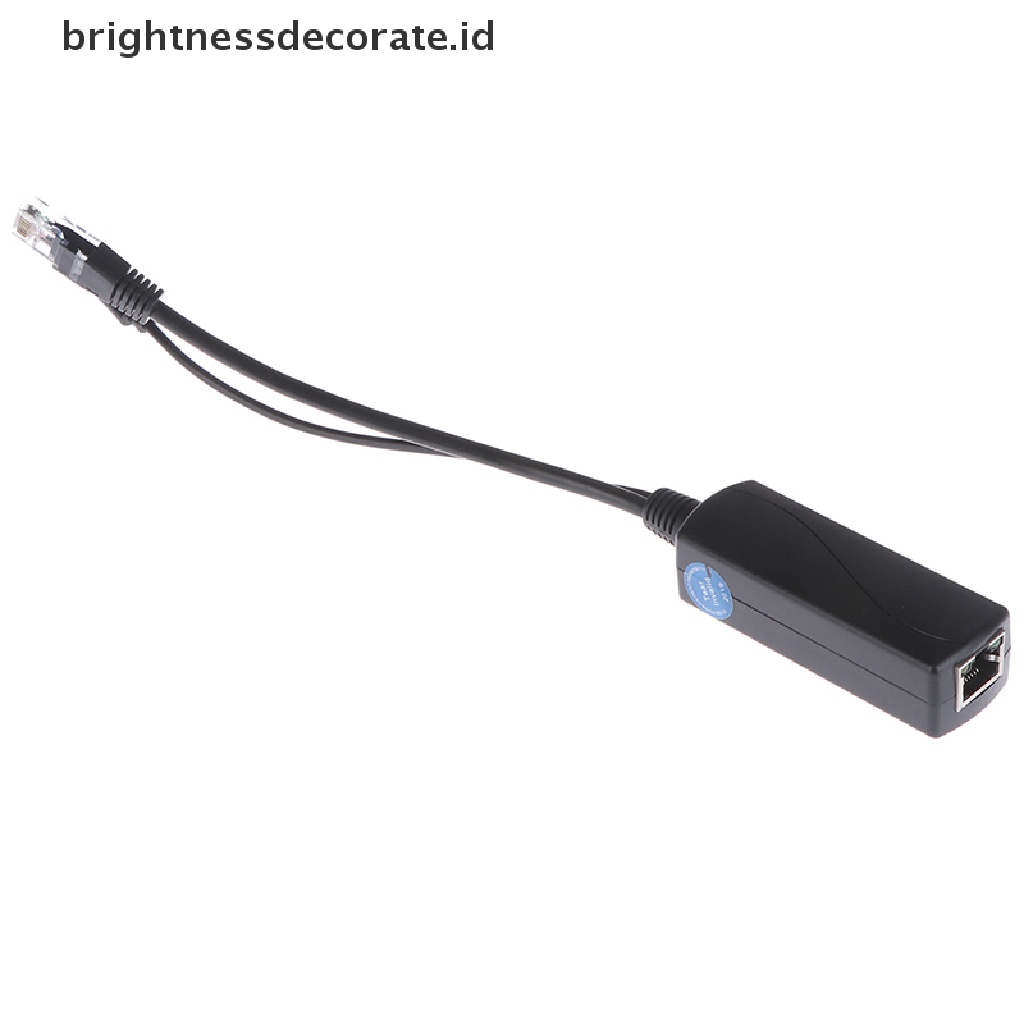

10/100Mbps Active PoE Splitter(USB type-C Power Plug) x1
