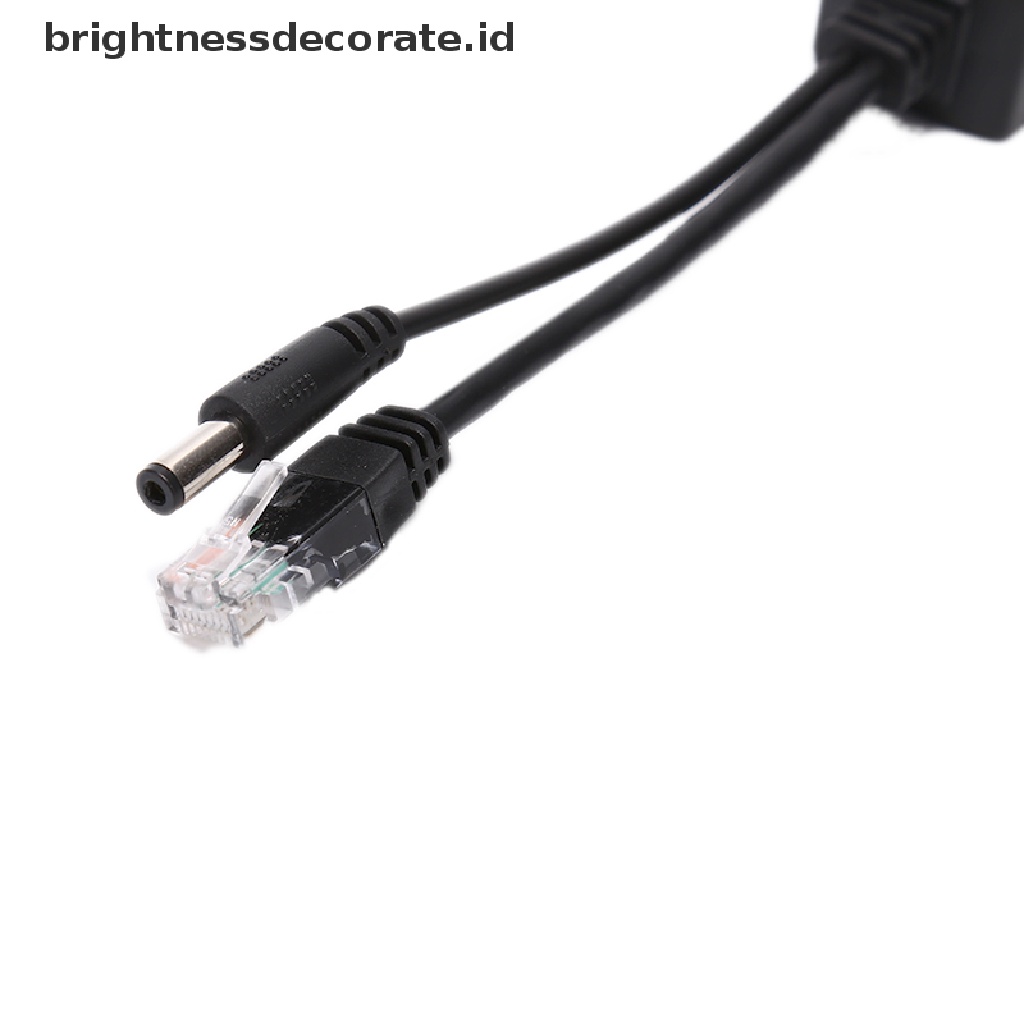

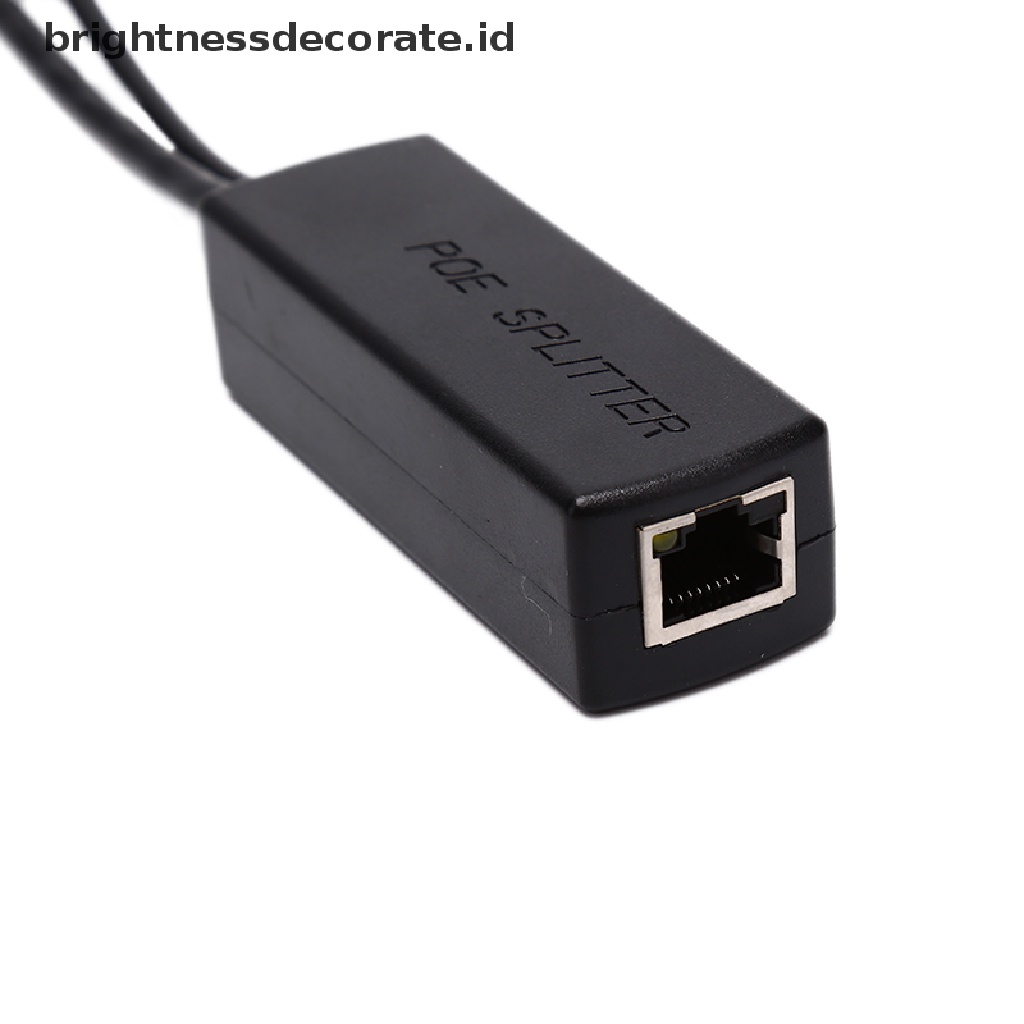

[birth] Gigabit Active PoE Splitter Power Over Ethernet 48V to 12V 1A-2A 10/100/1000Mbps [ID]

Detail [birth] Gigabit Active PoE Splitter Power Over Ethernet 48V to 12V 1A-2A 10/100/1000Mbps [ID]

Description

RJ45 female INPUT Port:

Support the IEEE 802.3af/802.3AT the Power over Ethernet PoE Switch

Support 48V-12V Unsolicited Power Over Ethernet PoE Switch

Support 48V-12V Unsolicited Power Over Ethernet PoE Adapter



Specification:

Compliant with IEEE802.3af 14W

Isolation: 1.5kV

Power Input: DC38~57V

Power Output: DC12V 1A~2A(Rated 1.3A, max. 2A)

Data&Power INPUT Port: from RJ45 female

Data Output Port: RJ45 Male

Power Output Port: 5.5x2.1mm DC Power Plug

Data Transfer Rate: 10/100Mbps

Devices will be detected before poe input

Power Pin:support both 1/2(+),3/6(-) or 4/5(+),7/8(-)

Body size: 83 x 29x 23 mm

DC cable length：135mm

RJ45 Modular Plug cable length：155mm

Weight : 48g

DC Out Power Pin: inside positive (+) outside negative (-)

Operation Temperatue:-20℃ ~ 45℃

Storage Temperature:-30℃ ~ 70℃

Item Included:

Ethernet Gigabit Active PoE Splitter x1
