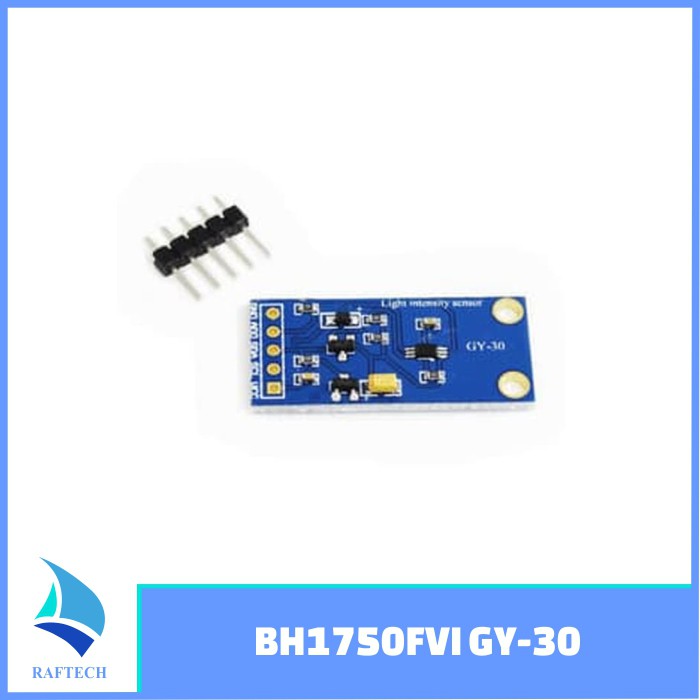

BH1750FVI Digital Light intensity Sensor Arduino Module AX85
Descripiton:
BH1750FVI is a digital Ambient Light Sensor having I2C interface. This IC is the suitable for obtaining the ambient light data. It is possible to detect wide range at high resolution.

SPEC:
Chip: BH1750FVI
Power Supply: 3.3V - 5V
Light Range0 - 65535 lx(Lux)
Sensor Built-in: 16 bit AD converter
Size(L x W): Approx. 3.2cm x 1.5cm
Direct digital output, bypassing the complex calculation, bypassing the calibration
Close to the spectral characteristics of visual
Widely used to 1-lux high precision measurement
Standard NXP IIC communication

For example:
Night: 0.001--0.02;
moonlightnight:0.02--0.3;
cloudy indoor:5--50;
cloudy outdoor:50--500;
Sunny indoor:100--1000;
under the sunlight in summer afternoon: about 10*6 power;
reading books for intensity of illumination:50--60;
home video standard intensity of illumination:1400.

Board Schematic
J1 is interfacing connector
U1 is voltage regulator which gives out 3V to board from 3.3-5V supply input
Q1 is bidirectional data level translator for 5V to 3V level conversion
D1 is unidirectional clock level translator for 5V to 3V level conversion
Please note that the "addr" Pin is to assign a different I2C address to the sensor.
