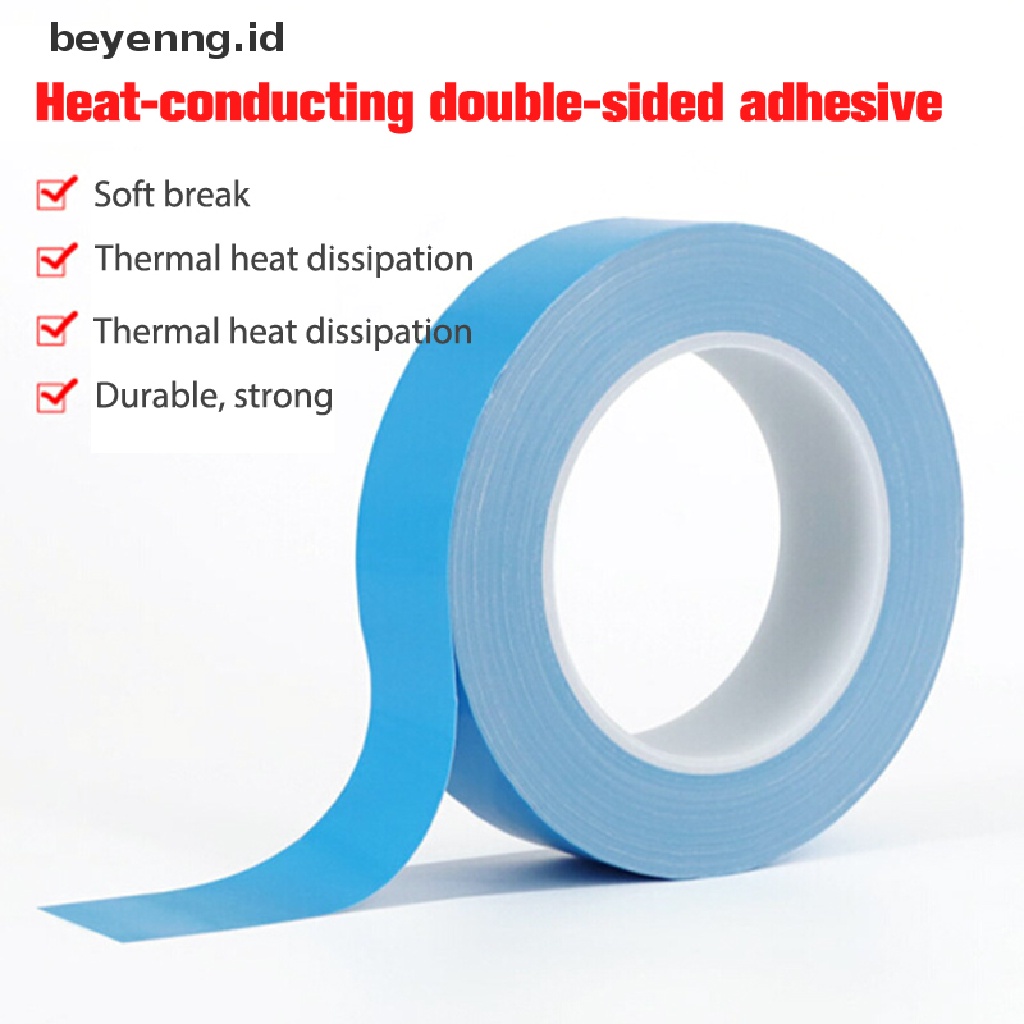

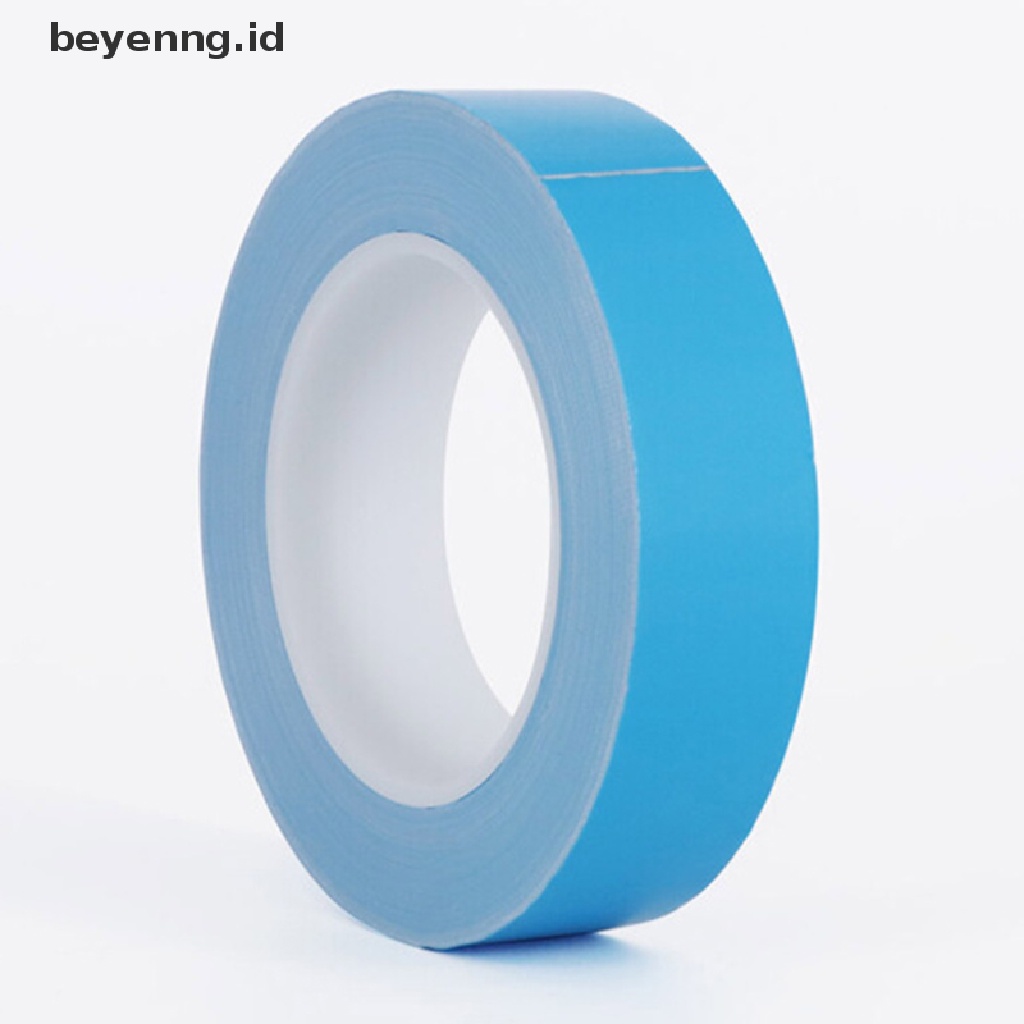

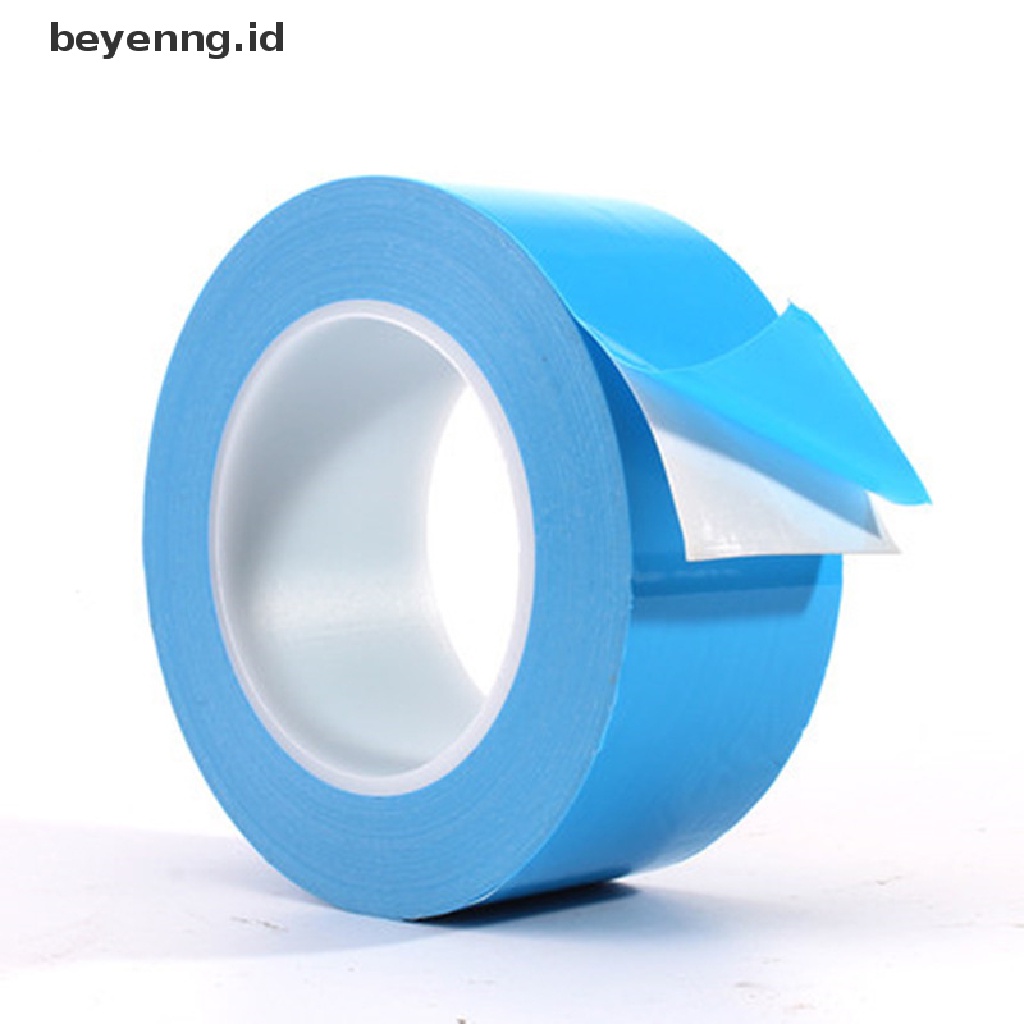

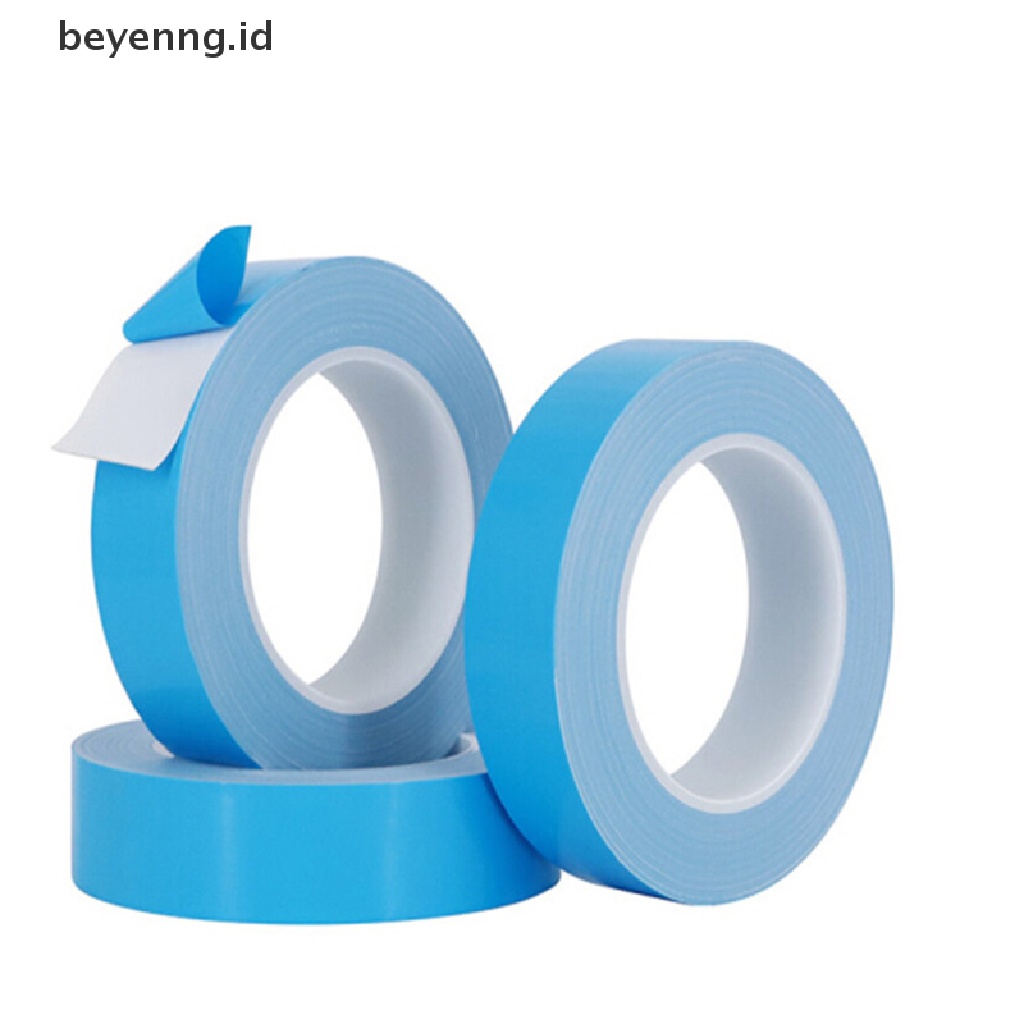

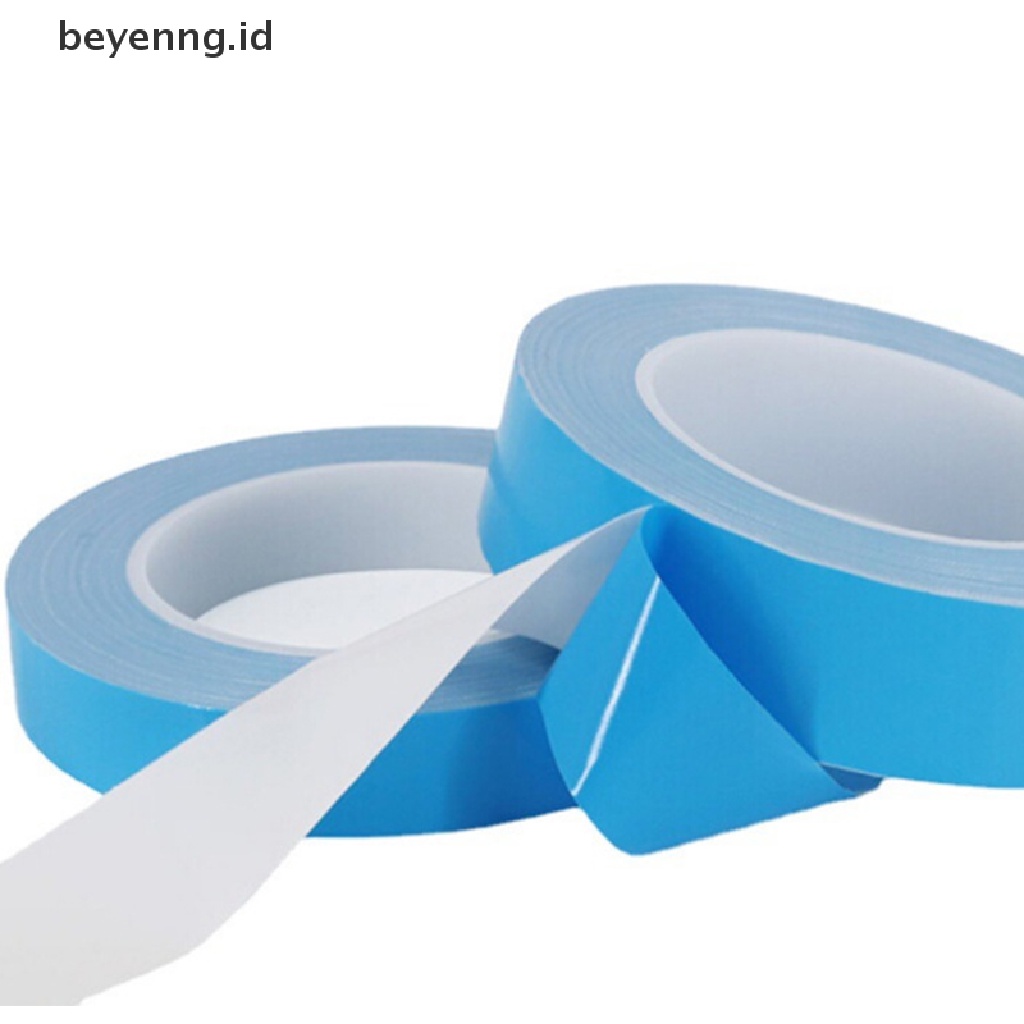

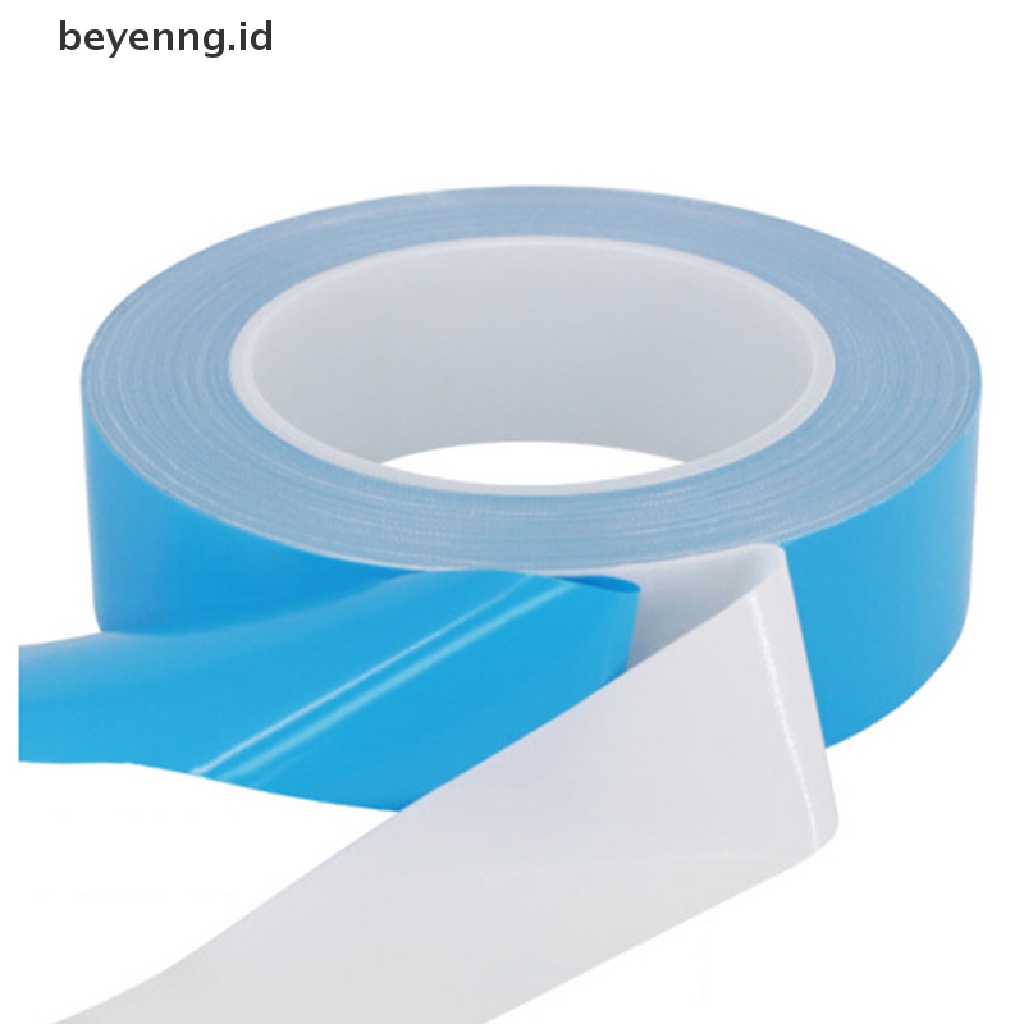

Beyen 25m / roll Tape Konduktif Thermal Dua Sisi Untuk Chip PCB LED Strip Heatsink
Deskripsi singkat
Perlengkapan Rumah > Renovasi Rumah > Perekat & Tape > Beyen 25m / roll Tape Konduktif Thermal Dua Sisi Untuk Chip PCB LED Strip Heatsink
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Beyen 25m / roll Tape Konduktif Thermal Dua Sisi Untuk Chip PCB LED Strip Heatsink
Name: Thermally conductive double-sided insulating tapeMaterial: acrylic polymer + thermally conductive ceramic powder + high adhesive
Length: 25m
Width: 5mm/8mm/10mm/15mm/20mm
Thickness: 0.3mm
Thermal conductivity: 1.2W/m-k
Adhesion: 12~18N/25mm
Withstand voltage: 3.5~8.0KV/mm
Temperature resistance (short term): 120°/248°
Temperature resistance (long term): 80°/176°
Application:
LED Trip, Cooler, MotherBoard, LED strip module and metal frame assembly. DDR-RAM module and heatsink assembly. Electronic components: IC, COP, CPU, MOS, etc. M/B, PS, PCB, LCD , PDP , PC etc.
Gambar produk
