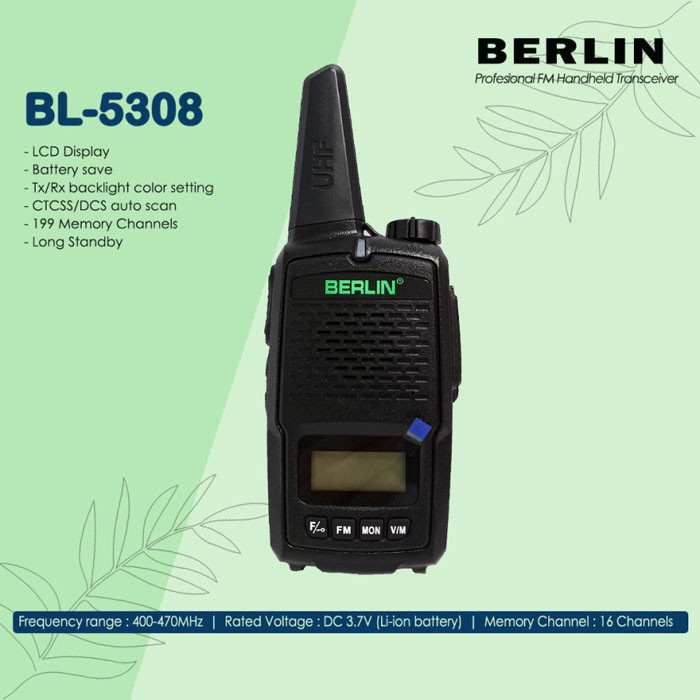

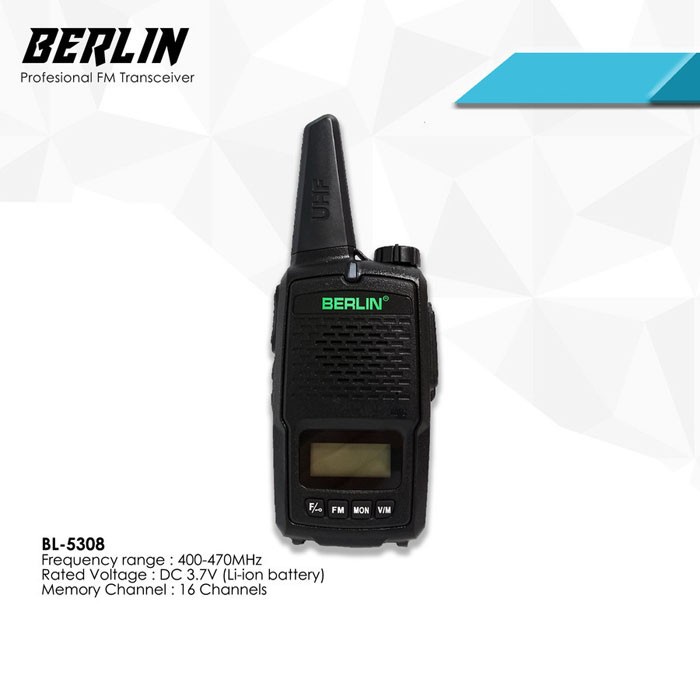

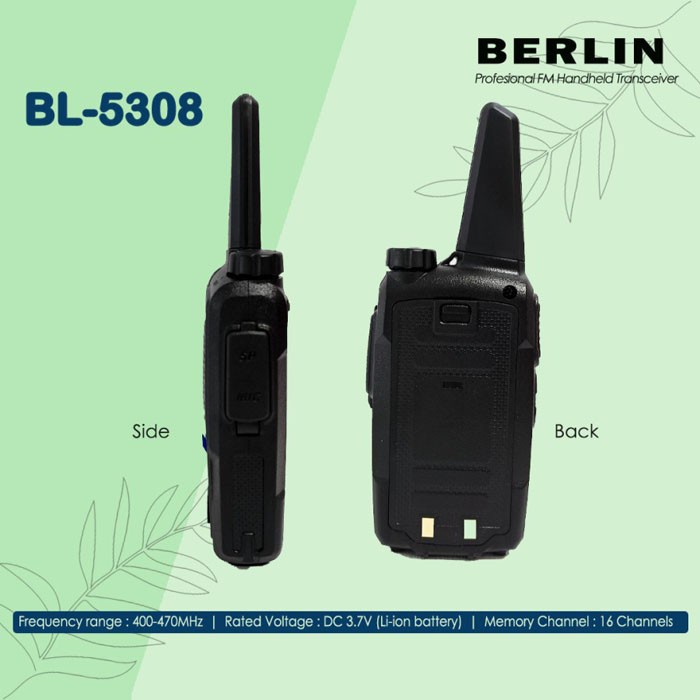

Berlin Walkie Talkie HT LCD Display BL-5308 BL 5308 BL5308

Detail Berlin Walkie Talkie HT LCD Display BL-5308 BL 5308 BL5308

LCD Display
Battery Save
Tx/Rx backlight color setting
CTCSS/DCS auto scan
199 Memory Channels
Long standby

Spesifikasi :
Unity Section
Frequency range : 136-174MHz / 400-470MHz
Rated Voltage : DC 3.7V (Li-ion batery)
Memory Channel : 16 Channels
Antenna Disposition : Inductively loaded antenna
Antenna Impedance : 50
Working Manner : Same frequency single operation or different frequency single operation
Ground Method : Negative pole
Volume : 96x55x22mm

Launching Parts
Output power : 2W/5W
Modulation Mode : Frequency modulation
Maximum frequency debiation : <+- 5KHz
Remanent Radiation : <- 60dB
Preemphasis Character : per fold frequendy patch 6dB
Emission Current : <- 1000mA

Receiving Parts
Sensitivity : <0.1 u V (12dB SINAD)
Silent Sensitivity : <0.2 u V
Intel modulation anti-interference : 50dB
Audio Frequency Power : >- 300mW
Receiving Current :<- 100mA
Silent Waiting : 20mA

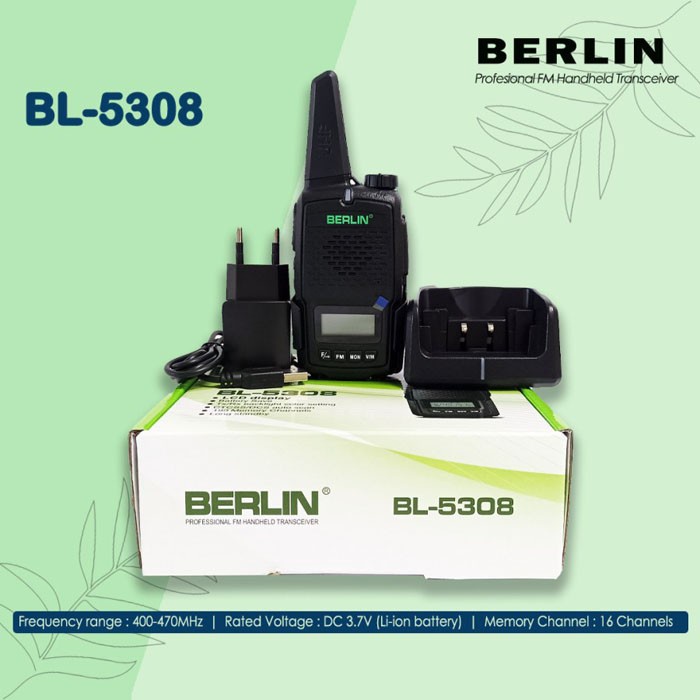

Content Package :
- Battery charger
- Li-ion battery pack
- Belt clip
- Cable
- Hang a rope
- Instruction manual
