BELDEN KABEL UTP CAT6 KABEL LAN CAT 6

Detail BELDEN KABEL UTP CAT6 KABEL LAN CAT 6

Description:
Media Twist, Cat 6 Cable, 4 Pairs, 23 AWG UTP Cable, Crescent Shape ( pipih / gepeng) , Bonded

24 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, central spline, rip cord, see color code chart
(below), PVC jacket (blue or grey).

SUITABLE APPLICATIONS:
Suitable Applications Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG
ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video,
AES/EBU, Digital Video, RS-422, 250MHz Category 6

PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Pairs 4
Total Number of Conductors 8

AWG 24
Stranding Solid
Conductor Material BC - Bare Copper

INSULATION:
Insulation Material PO - Polyolefin

Pair Color Code Chart:
Pair Number Insulation Color
Wire 1 Wire 2
1. Blue White with Blue Stripe
2. Orange White with Orange Stripe
3. Green White with Green Stripe
4. Brown White with Brown Stripe

OVERALL CABLING:
Overall Cabling Fillers Central Spline

OUTER SHIELD:
Outer Shield Material Unshielded
Detailed Specifications &
Technical Data
7814A Paired - Category 6 Unbonded - Pair Cable

OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Outer Jacket Ripcord Yes

OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter 5.8 mm

MECHNICAL CHARACTERISTICS:
Operating Temperature Range - 20 To + 75
Bulk Cable Weight 45 kg/km
Max. Recommended Pulling Tension 150 N
Min. Bend Radius (Install) 12.7 mm

APPLICABLE SPECIFICATION AGENCY COMPLIANCE:
APPLICABLE STANDARDS:
NEC/(UL) Specification CM
NEC Articles 800
CEC/C(UL) Specification CM
IEC Specification 11801 Category 6
EU RoHS Compliant (Y/N) Y
EU RoHS Compliance Date Sept 2007
TIA/EIA Sp
Others Genuine Made in USA

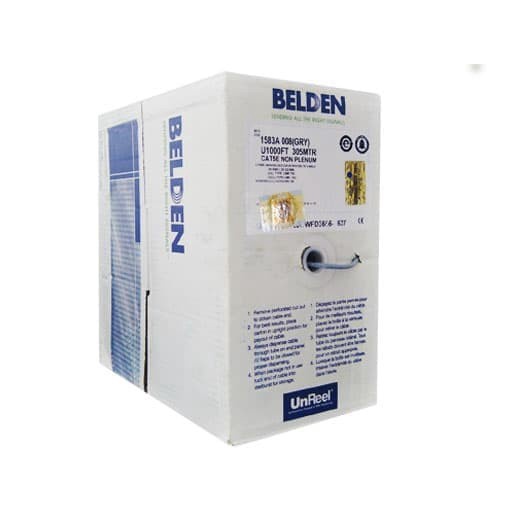

Gambar produk
