Detail Belden Kabel CCTV Rg 59 RG59 plus Power 305meter 75ohm Indoor Outdoor 9105SL2P

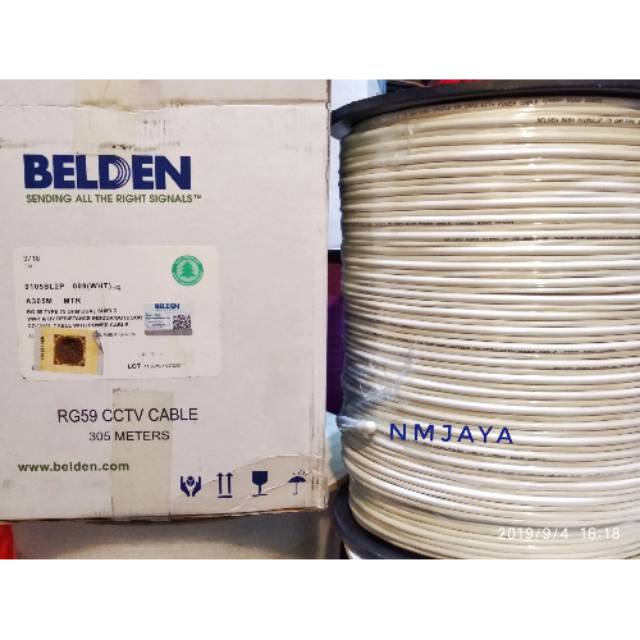

Kabel Belden CCTV Coaxial RG59+Power Original 305meter

Tipe: 9105SL2P
Warna: putih

Spesifikasi :
Pusat Konduktor Solid CCS (24% Conductivity) 0.810.0005mm
Dielectric Foamed Polyethylene 3.660.05mm
Braid Coverage 16X90.12 0.005mm CCA Wire (95% Coverage)
Jacket 6.000.10mm PVC90%
Jacket Thickness 0.80mm
2C power wire 7*0.38mm strand BC + 1.7mmBlack PE
Jacket (coax) 4.40mm 0.20mm PVC
Jacket Thickness 0.50mm
Cetakan Pada Kabel
Belden Cable 95% 20AWG2C 0000M --- 0305M
Paket
1000FT/Plywood Reel/Carton
Reel Size R35 X H30.5CM
Pallet Size 105 x 105 x 105 cm, L3XW3XH3, 27 Reels/Pallet
44 Pallets / 1.188 Reels / 40 Container
Karakteristik
Core ovality maximum 0.33
Center konduktor bond to dielectric 2.3 min.kgs
Karakteristik Elektrik
Impedance 75 Ohm
Kapasitas 553 pF/m
SRL 20dB (5-1000MHz) 28.9 lb/kft
