Belden Kabel CCTV RG 59 RG59 plus Power 100 meter 75ohm Indoor Outdoor9105SL2P

Detail Belden Kabel CCTV RG 59 RG59 plus Power 100 meter 75ohm Indoor Outdoor9105SL2P

Kabel Belden CCTV Coaxial RG59+Power Original

Tipe: 9105SL2P
Warna: putih
Panjang: 100meter

Spesifikasi :
Pusat Konduktor Solid CCS (24% Conductivity) 0.810.0005mm
Dielectric Foamed Polyethylene 3.660.05mm
Braid Coverage 16X90.12 0.005mm CCA Wire (95% Coverage)
Jacket 6.000.10mm PVC90%
Jacket Thickness 0.80mm
2C power wire 7*0.38mm strand BC + 1.7mmBlack PE
Jacket (coax) 4.40mm 0.20mm PVC
Jacket Thickness 0.50mm
Cetakan Pada Kabel
Belden Cable 95% 20AWG2C 0000M --- 0305M
Paket
1000FT/Plywood Reel/Carton
Reel Size R35 X H30.5CM
Pallet Size 105 x 105 x 105 cm, L3XW3XH3, 27 Reels/Pallet
44 Pallets / 1.188 Reels / 40 Container
Karakteristik
Core ovality maximum 0.33
Center konduktor bond to dielectric 2.3 min.kgs
Karakteristik Elektrik
Impedance 75 Ohm
Kapasitas 553 pF/m
SRL 20dB (5-1000MHz) 28.9 lb/kft

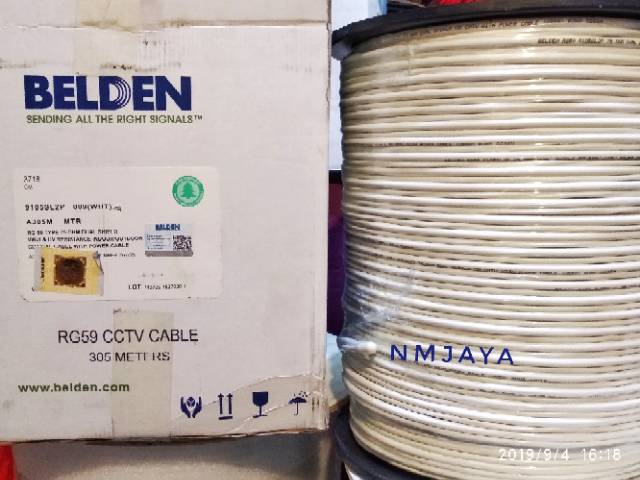

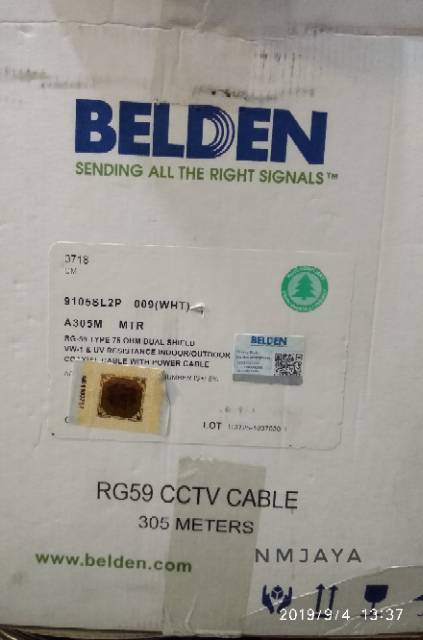

Gambar produk
