Belden Connector RJ45 Cat6 Original

Detail Belden Connector RJ45 Cat6 Original

Sudah terkenal dimana2 kwalitas Conector Rj45 Cat6 Belden Original
isi kemasan 50 pcs


Description:
RJ45-Connector, Cat6, 100 ohms, Straight male (plug)

PHYSICAL CHARACTERISTICS:
Plug Housing PC - Polycarbonate, UL 94V-2 rated
Contact Blade Phosphor bronze plated with 50u gold over 100u nickel undercoat

ELECTRICAL CHARACTERISTICS:
Current Rating 1.5 A maximum
Characteristic Impendence 100 ohms
Insulation Resistance 100 Mohms Min
Contact Resistance 20mohms Max
Voltage Rating 30 VAC maximum

MECHNICAL CHARACTERISTICS:
Cable Retention Force 40 lbs Max
Max Insertion and Withdrawal Force 22 N
Humidity 10% to 90% R.H.

WIRE RANGE:
Conductor Diameters: 0.41mm to 0.51mm (26AWG to 24AWG)
Conductor Type Solid; Stranded
Insulation Diameters: 0.98mm to 1.05mm
Cable Diameters: 5.0mm to 7.0mm

ENVIRONMENTAL CHARACTERISTICS:
Temperature Range - 10 to + 60

APPLICABLE STANDARDS:
UL Specification UL 1863
EIA Specification EIA-364
EU RoHS Compliant (Y/N) Y

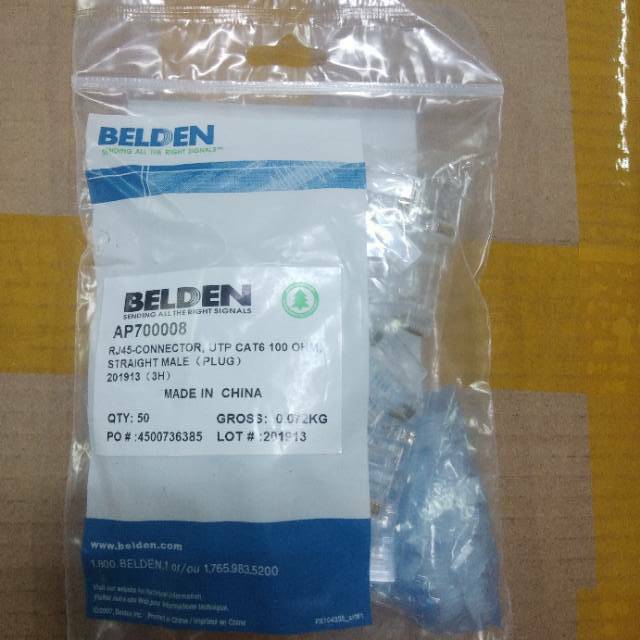

Gambar produk
