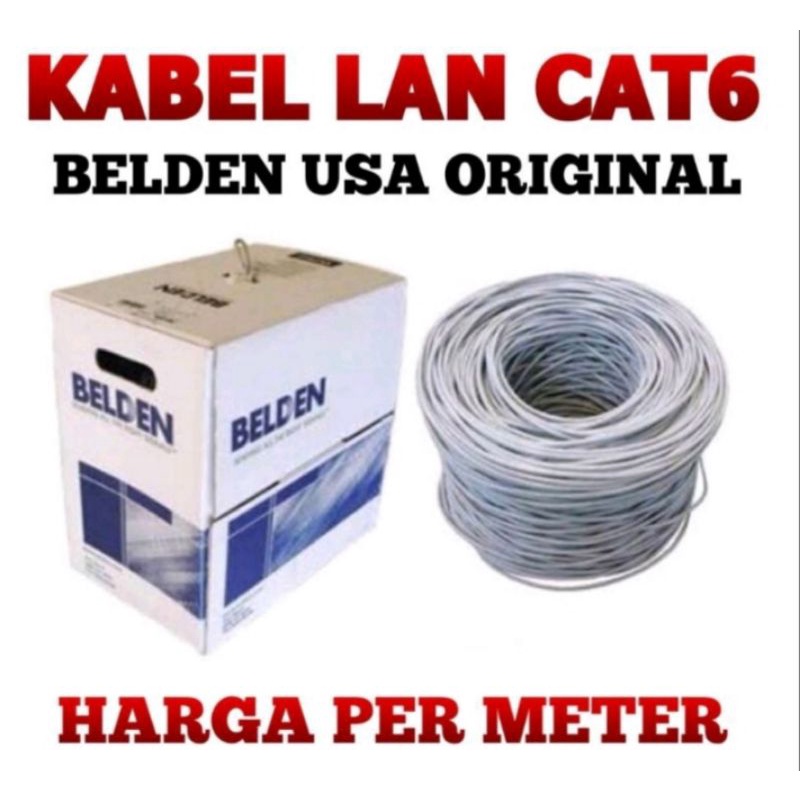

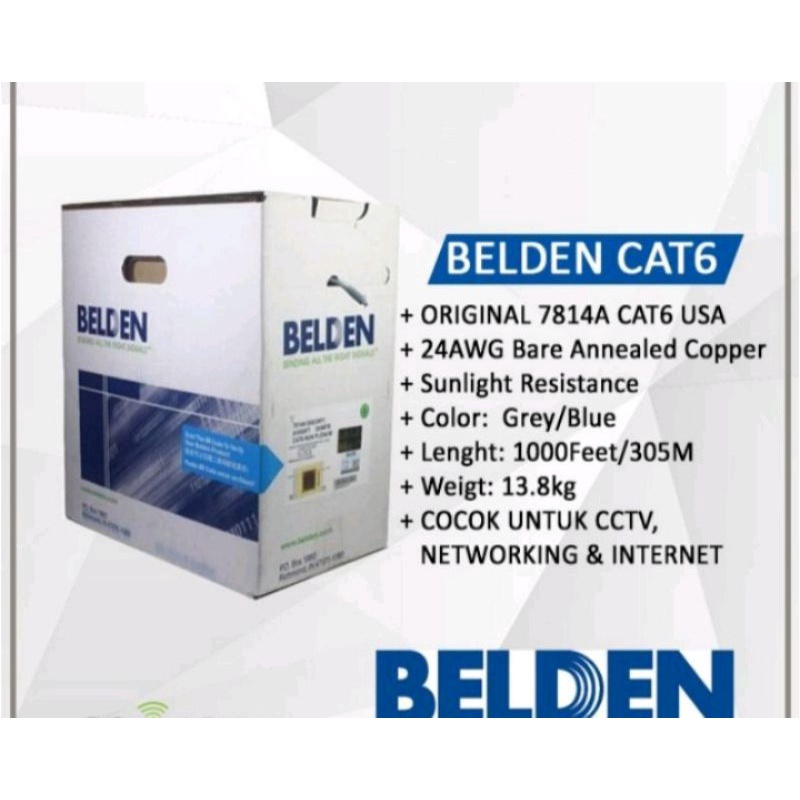

Belden Cat 6 Original Kabel LAN UTP 1Roll Cat6 305 Meter 24AWG

Description
24 AWG solid bare annealed copper conductors, non-plenum, Thermoplastic Polyolefin insulation, centre spline, rip cord, twisted pairs, see color
code chart (below), PVC jacket (blue or gray).
SUITABLE APPLICATIONS:
Suitable Applications
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Pairs : 4
Total Number of Conductors : 8
AWG : 24
Stranding : Solid
Conductor Material : Bare Annealed Copper

INSULATION:
Insulation Material : Thermoplastic Polyolefin

Pair Color Code Chart :
Number Color Number Color
1 White/Blue Rings & Blue 3 White/Green Rings & Green
2 White/Orange Rings & Orange 4 White/Brown Rings & Brown

OUTER SHIELD : Outer Shield Material Unshielded
OUTER JACKET:
Outer Jacket Material : PVC
Outer Jacket Ripcord : Yes

NEC/(UL) Specification CM
CEC/C(UL) Specification CM
IEC Specification ISO 11801
TIA/EIA Specification 568-B.2-1 Category 6
Other Specification Category 6, UL verified to Category 6, ETL, ANSI/TIA/EIA-568B.2-1

OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter 5.80 0.50mm
MECHANICAL CHARACTERISTICS:
Operating Temperature Range -20C To +80C
Bulk Cable Weight 36.3Kg/Km
Max. Recommended Pulling Tension 110N
Min. Bend Radius (Install) 25.4mmj
