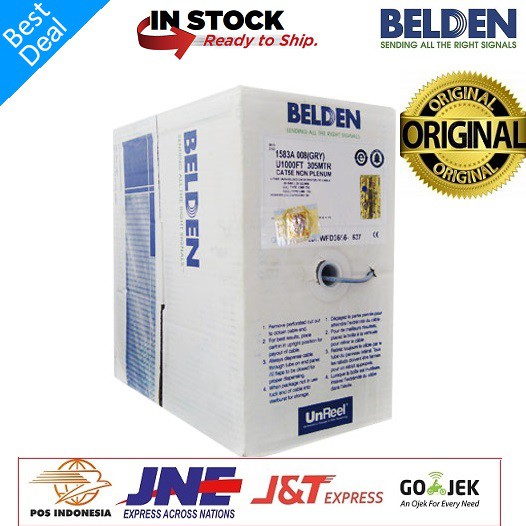

BELDEN Cable UTP - Kabel UTP Cat-5E 305meter 1 Roll ORIGINAL BL 1583A Gray 1 box
Merek: HP | Lihat selengkapnya produk Komputer & Aksesoris dari HPDeskripsi singkat
Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > BELDEN Cable UTP - Kabel UTP Cat-5E 305meter 1 Roll ORIGINAL BL 1583A Gray 1 box
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail BELDEN Cable UTP - Kabel UTP Cat-5E 305meter 1 Roll ORIGINAL BL 1583A Gray 1 box

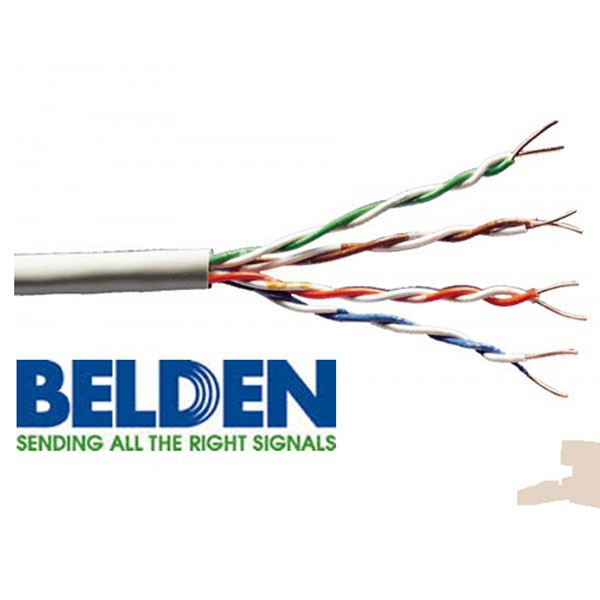

General Description:CAT5e (200MHz), 4-Pair, U/UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 24 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Ripcord, PVC Jacket.
Usage (Overall)
Suitable Applications: Horizontal, 1000BaseT, Gigabit Ethernet, POE, POE+,100BaseTX, Fast Ethernet, 100BaseVG ANYLAN,
155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Video, RS-422
Physical Characteristics (Overall)
Conductor
AWG:
# Pairs AWG Stranding Conductor Material
4 24 Solid BC - Bare Copper
Total Number of Conductors: 8
Insulation Material:
PO - Polyolefin
Outer Shield Material:
Unshielded
Outer Jacket Material:
PVC - Polyvinyl Chloride
Outer Jacket Diameter:
Nom. Dia. (in.)
0.190
Outer Jacket Ripcord: Yes
Pair
Pair Color Code Chart:
Number Color
1. White/Blue Stripe & Blue
2. White/Orange Stripe & Orange
3. White/Green Stripe & Green
4. White/Brown Stripe & Brown
