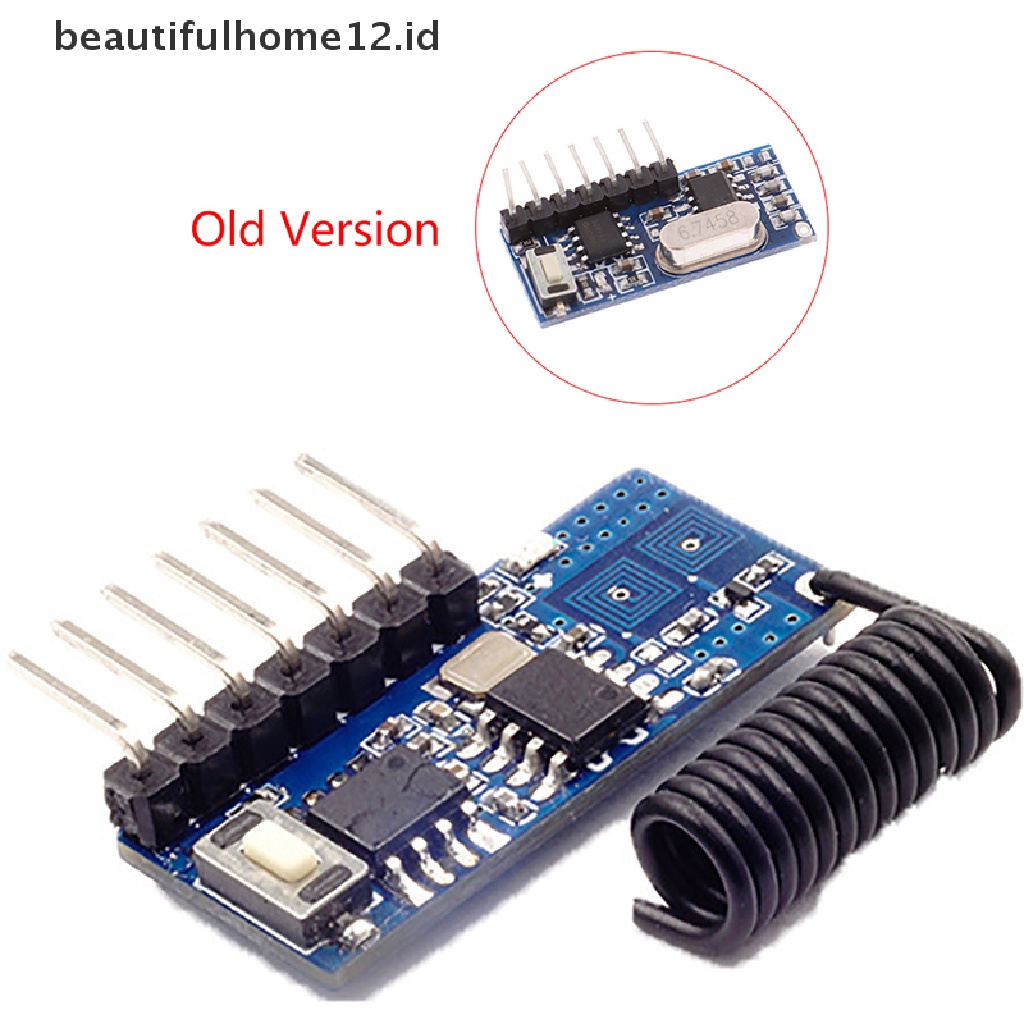

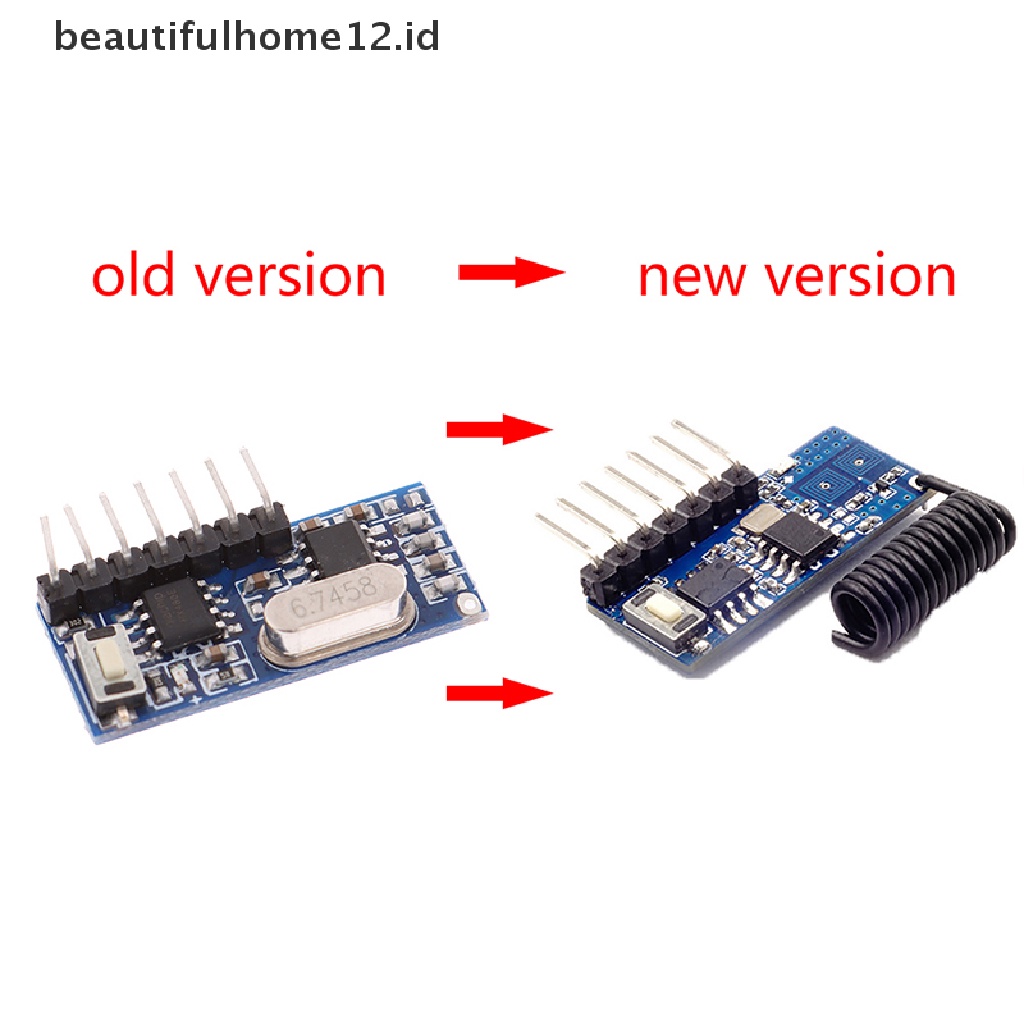

[Receiver module ] Product Model: RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : ≤5mA
Output current : 10 mA
Working Frequency: 433MHz
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Working mode: Momentary Mode , self-locking (Toggle-Mode of the 4 Channels) , interlocking
The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

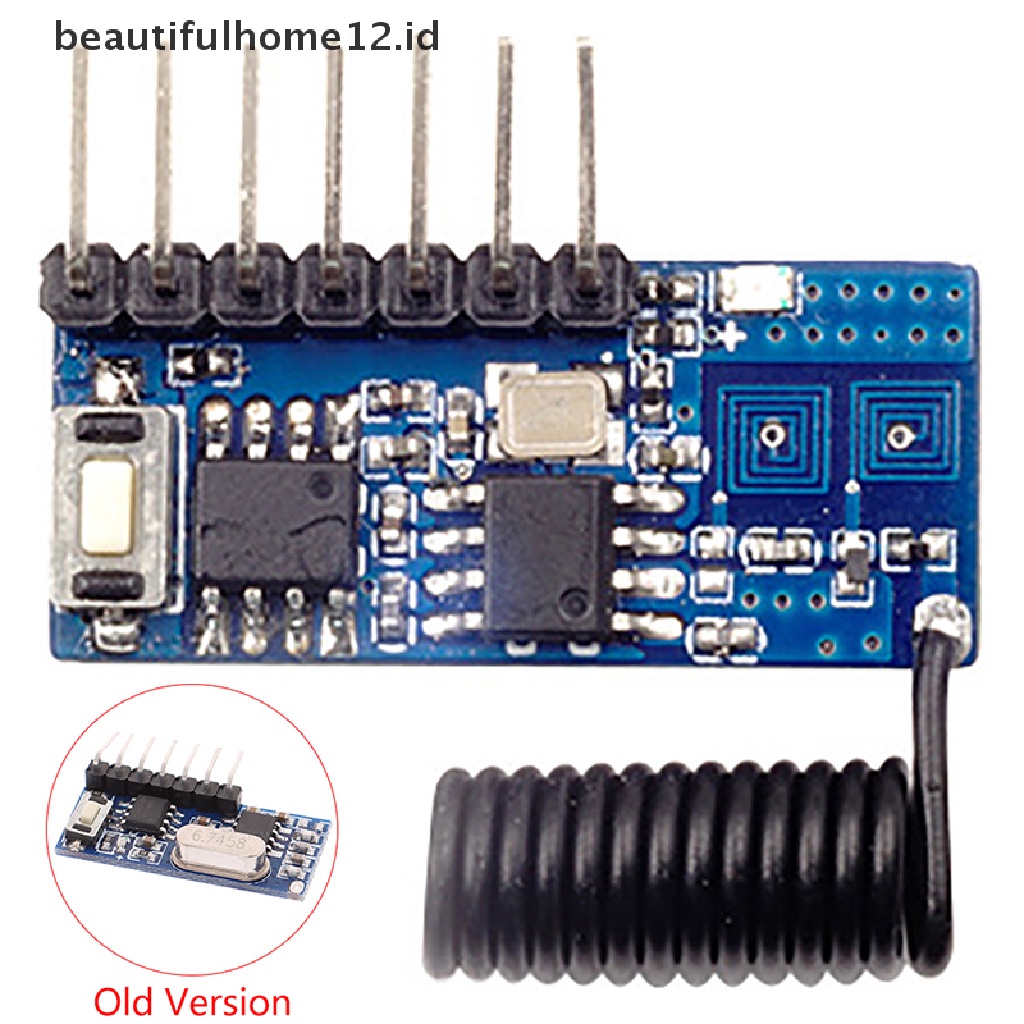

Pins Instruction
GND : ground or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output
Package included:1pcs
How To Programming:
1. Delete existing data: Press learning button 8 times (on the receiver）. Response: LED flashes 7 times.
2. Learning remote code: press learning key (on the receiver） once, twice or three times (see below).
LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
3. Test: after the above operation , the receiver board can be controlled by the remote control .
More transmitters with different IDs can be learned and stored additionally, starting with step 2.
A mixture of different modes is possible.
Button usage (sets mode and starts pairing process):
Press once (on the receiver） : Inching mode (Momentary Mode)
Press twice (on the receiver） : self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times (on the receiver） : interlocked mode (selected channel active and be cleared, if another channel becomes active)
(This instructions is provided by Manfred, thanks to Manfred)
