be quiet! SYSTEM POWER 9 700W - 80+ Bronze Certified - Garansi Resmi

Detail be quiet! SYSTEM POWER 9 700W - 80+ Bronze Certified - Garansi Resmi

General data
Model System Power 9 700W
Continuous power (W) 700
Peak power (W) -
Form factor ATX 12V Version 2.4
Form factor EPS 12V Version 2.92
Modular Cable management -
Topology DC/DC
Wire-free design (DC-side) -
Voltage (Vac) 200 - 240
Frequency (Hz) 50
Input current (A) 6
PFC active
Power factor at 100% load >0.95
Compliant to Intel C6/C7 ✓
Power consumption in standby (W) <0.15
Average life time (h / 25°C) 100,000
Operating temperature up to (°C) 40

Output
12V rails (multi-rail operation) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 24
+5V (A) 15
+12V1 (A) 33
+12V2 (A) 25
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 672
Max. combined power 3.3V + 5V (W) 130
Hold-up time (ms @ 100%) 17 (@75% load)
Power good signal 100 - 500ms

Fan / Cooling technology
Fan type High quality fan
+SilentWings -
Motor technology 4-pole fan motor
Bearing technology Sleeve
Fan size (mm) 120
Max. fan speed (rpm), temperature-dependent 2100
Temperature control for case fans -

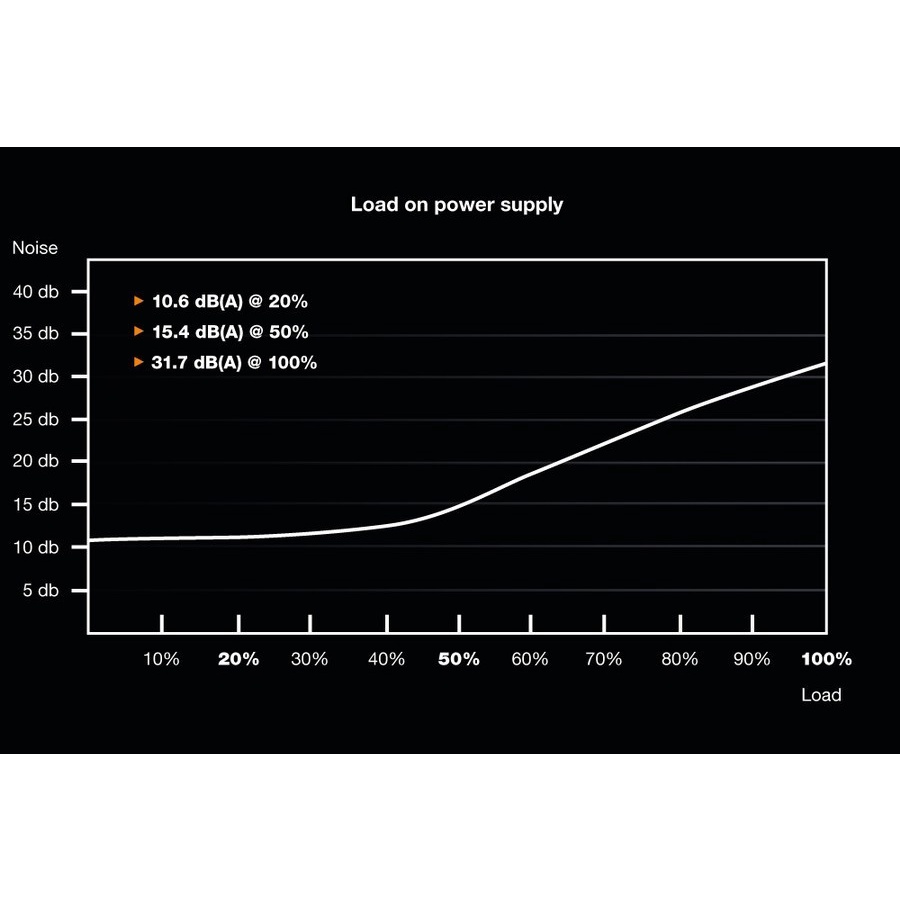

dB(A) at 20% load 10.6
dB(A) at 50% load 15.4
dB(A) at 100% load 31.7

Eco / Efficiency
80 PLUS certification Bronze (230V EU internal)
Efficiency (%) at 230V, 20% load 88
Efficiency (%) at 230V, 50% load 89
Efficiency (%) at 230V, 100% load 86

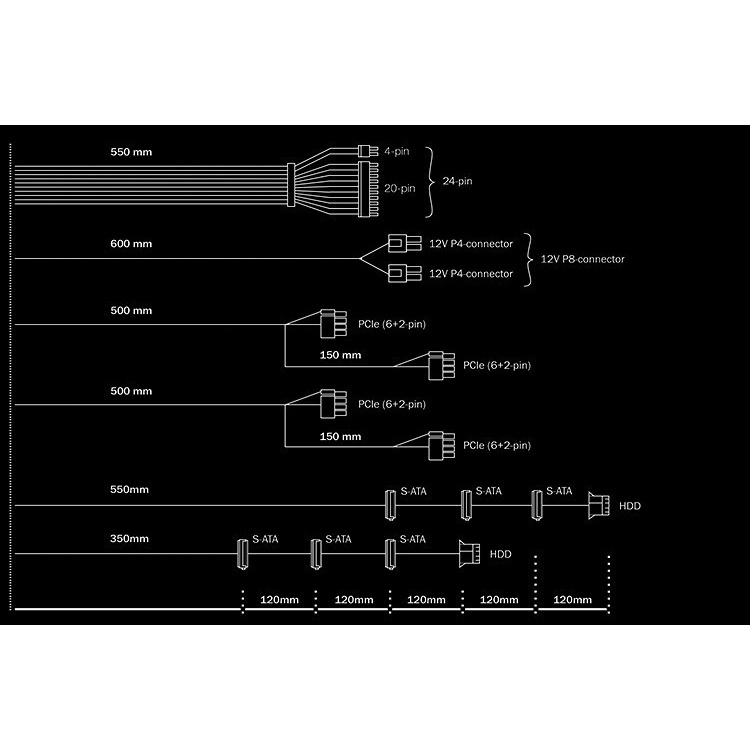

Cables / Connectors
Nvidia® SLI (RTX 3090) ready -
Cable management Fixed
Sleeved cables Sleeved cables
Flat cables -
Cable length to mainboard (cm) 55
Cable length to first connector (cm) 35
Maximum cable length (cm) 91
All-in-one cable (SATA/PATA/FDD) -
No. of cables 6
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) 1
P4 (CPU) -
PCI-e 6-pin (GPU) -
PCI-e 6+2-pin (GPU) 4
PATA 4-pin 2
SATA 15-pin (HDD, Drives) 6
FDD (Floppy) -
External fan connectors -

Casing
Dimensions without cable (L x W x D), (mm) 140 x 150 x 86
Weight (kg) 2.07
Color Black


3 Years Warranty Cahaya Distribusi

Gambar produk
