be quiet! PURE POWER 11 550W FM - Fully Modular - 80+ Gold Certified

Detail be quiet! PURE POWER 11 550W FM - Fully Modular - 80+ Gold Certified

General data
Model Pure Power 11 FM 550W
Continuous power (W) 550
Peak power (W) 600
Form factor ATX 12V Version 2.52
Form factor EPS 12V Version 2.92
Modular Cable management ✓
Topology LLC + SR + DC/DC
Wire-free design (DC-side) ✓
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 10 / 5
PFC active
Power factor at 100% load >0.98
Compliant to Intel C6/C7 ✓
Power consumption in standby (W) <0.14
Average life time (h / 25°C) 100,000
Operating temperature up to (°C) 40

Output
12V rails (multi-rail operation) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 28
+12V2 (A) 24
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 550
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 17.6
Power good signal 100 - 150ms

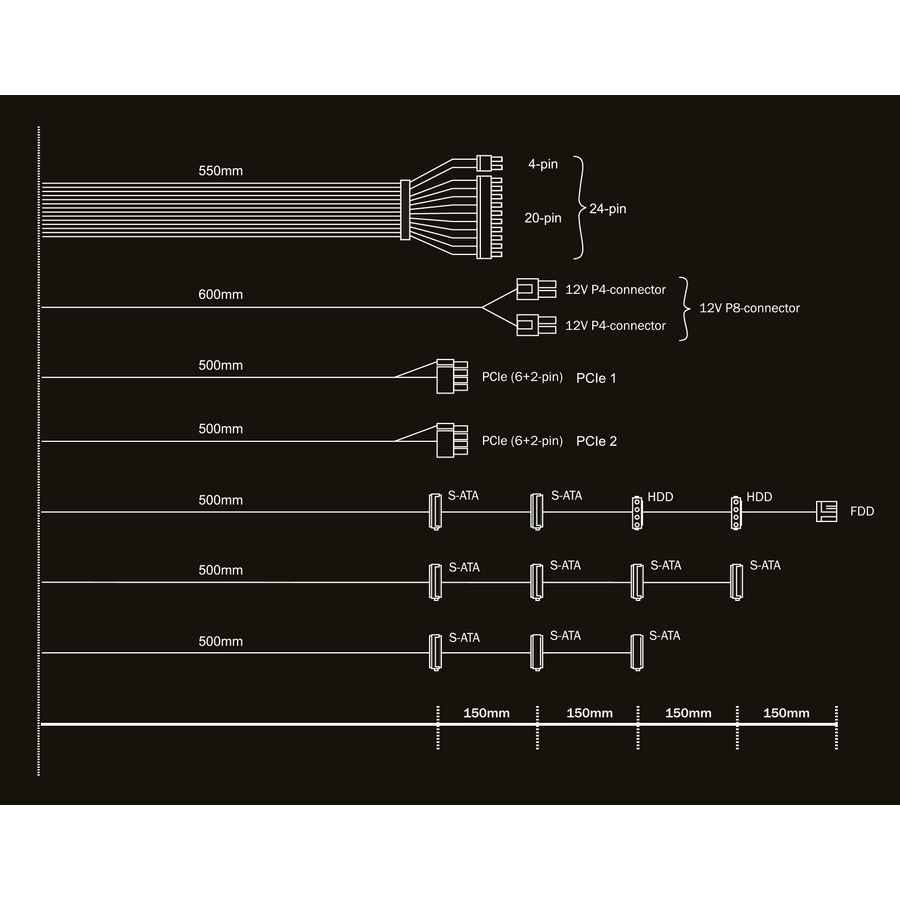

Cables / Connectors
Nvidia® SLI (RTX 3090) ready -
Cable management Modular
Sleeved cables Sleeved cables
Flat cables P8 / PCIe / drives
Cable length to mainboard (cm) 55
Cable length to first connector (cm) 50
Maximum cable length (cm) 110
All-in-one cable (SATA/PATA/FDD) ✓
No. of cables 7
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) 1
P4 (CPU) -
PCI-e 6-pin (GPU) -
PCI-e 6+2-pin (GPU) 2
PATA 2
SATA 9
FDD (Floppy) 1
External fan connectors -

Casing
Dimensions without cable (L x W x D), (mm) 160 x 150 x 86
Weight (kg) 1.45
Color Black

Garansi ResmI 5 Tahun Cahaya Distribusi
