Note:Due to different production batches, the product number may not be the same,please understand, please don't make order if you mind this,thank you very much!

Product performance and features
Operating voltage: Vopr= ±3.5V to ±16V
Low noise: 8nV/√Hz typ.
Input offset voltage: VIO = 0.8mV typ. 5mV max.
Input bias current: IB= 5pA typ. 250pA max. @Ta=25°C
Voltage gain: Av = 135dB typ.
Voltage conversion rate: SR=25V/μs typ.
Bipolar structure

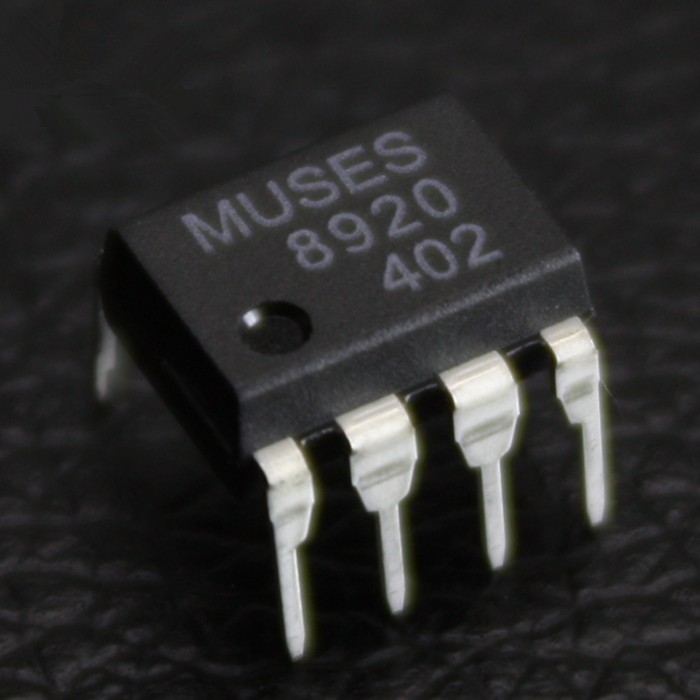

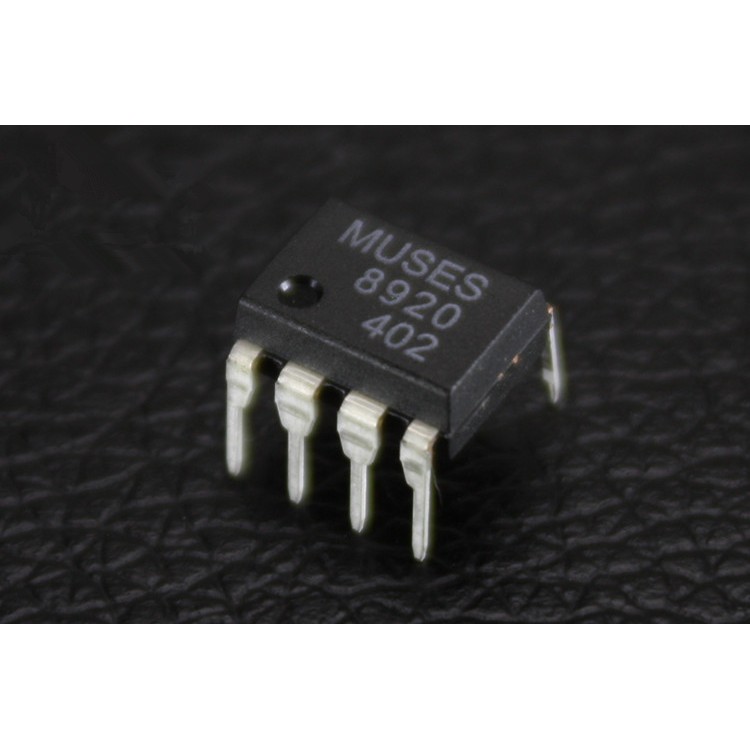

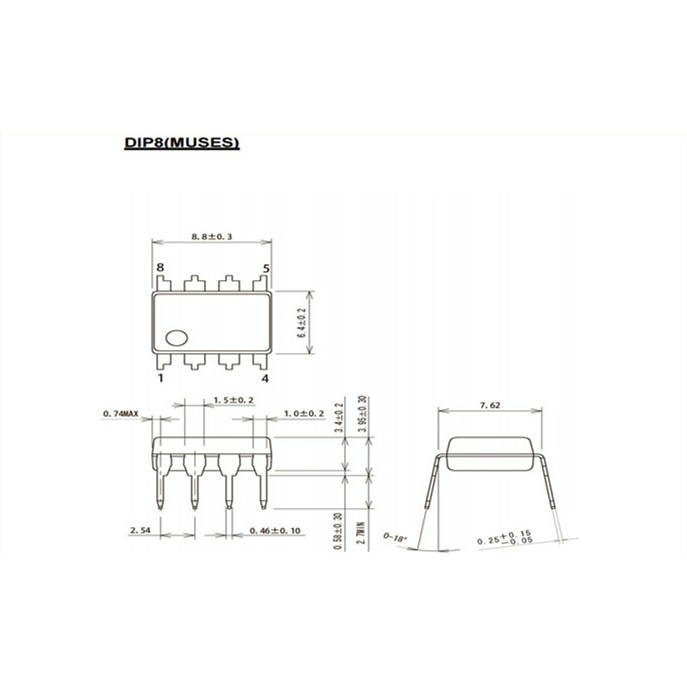

Package: DIP8 (Installed area 8.8×6.4×6.75mm)

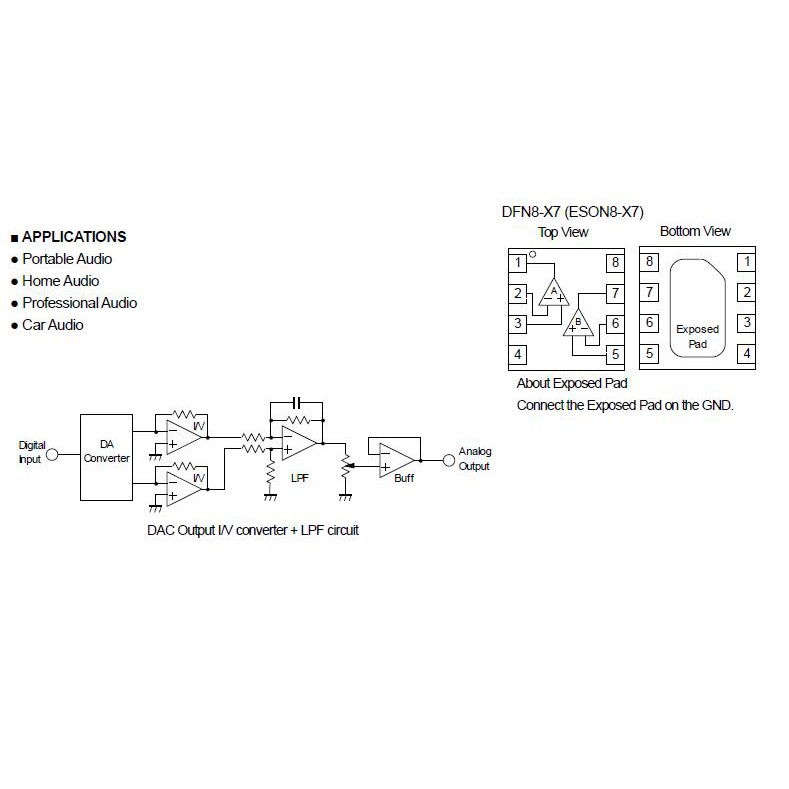

Application: Advanced Audio Equipment, Professional Audio Equipment

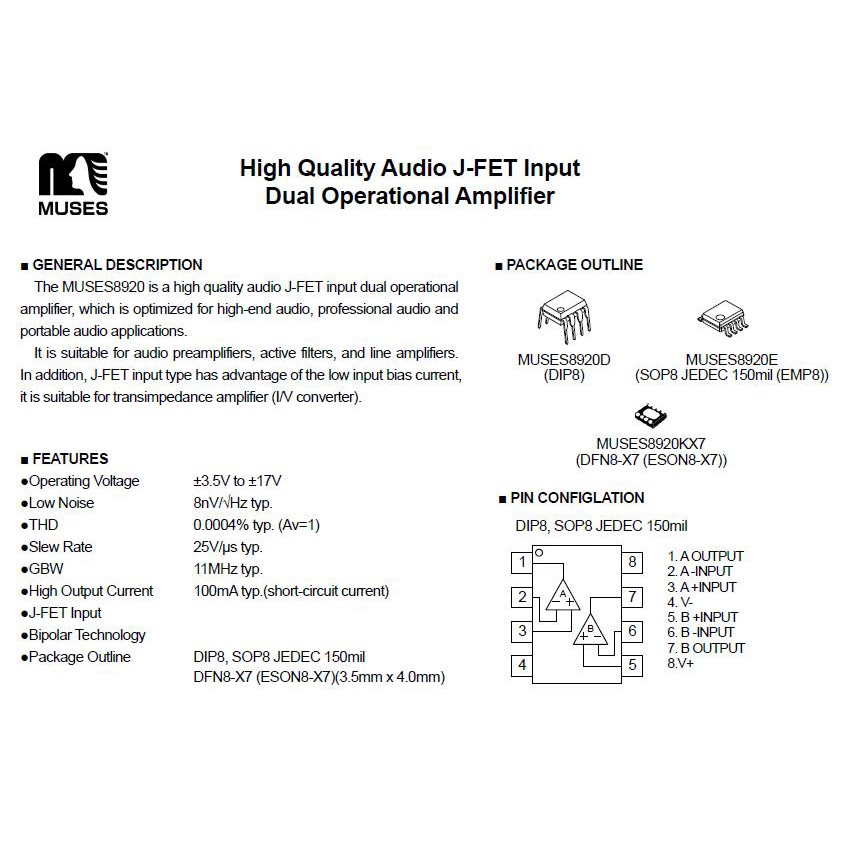

The MUSES8920 is a dual-channel, J-FET input op amp. It is a MUSES series of mass-produced products that have been further developed for use in more audio equipment and for more audio enthusiasts to feel “real sound”. This product has always followed the high sound quality development philosophy pursued by the MUSES series, achieving high-definition stereo sound and high mass productivity.
The MUSES8920 has been re-aligned with wiring design, materials, etc., and has been developed through the same thorough repeated audition as the existing MUSES series. Audio development without any preferences makes it suitable for multiple styles of music, so that more fans can experience true high sound quality. In addition, in addition to the commonly used DIP package (dual-in-line), the package also includes a leadless/halide-free chip-type package, which has improved audio equipment manufacturers mass production and Conducive to the characteristics of environmental protection.
