Detail Battery Shield V3 18650 Raspberry Pi WEMOS Nodemcu Arduino

Produk brand wemos

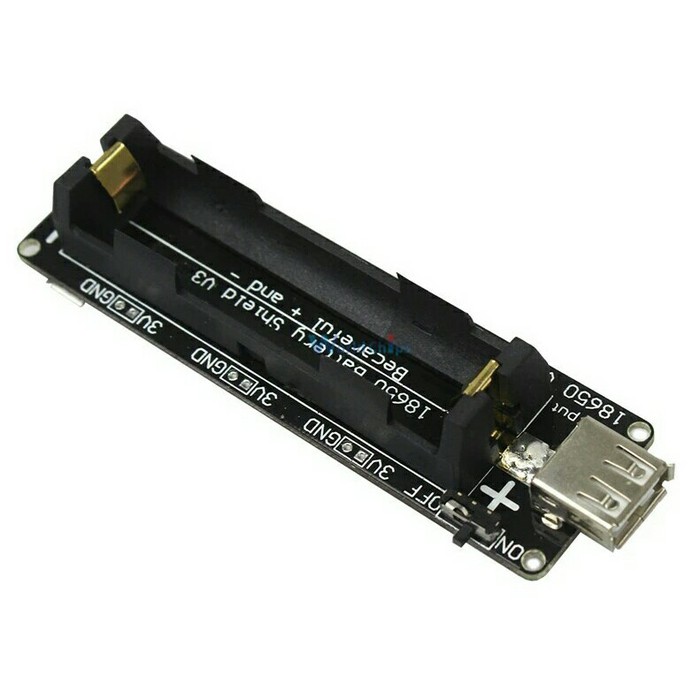

Battery Shield V3 18650 Raspberry Pi WEMOS nodemcu esp32

18650 battery shield has now been updated to V3. You can use this battery to shield power from many products like Raspberry Pi or wemos nodemcu esp32 . There is a protection in this version of the 18650 shield. The output current can reach 2A, which I believe will be a beneficial project.
What makes it special?
Battery protection (overcharge or overdischarge)
Micro USB port input
Type A USB output
0.5A current charging
1 switch control USB output? 5 ~ 8v input voltage
3 volt and 1A output
And 5V voltage 2A output
LED indication (green, red indicates charging)
3v output port X3
The 5V output port X3 is carefully "+" and "-", you should follow the direction "+" "-" on the PCB.
Note: If you misplace the battery, the charging chip will be destroyed. This product does not include battery 18650
