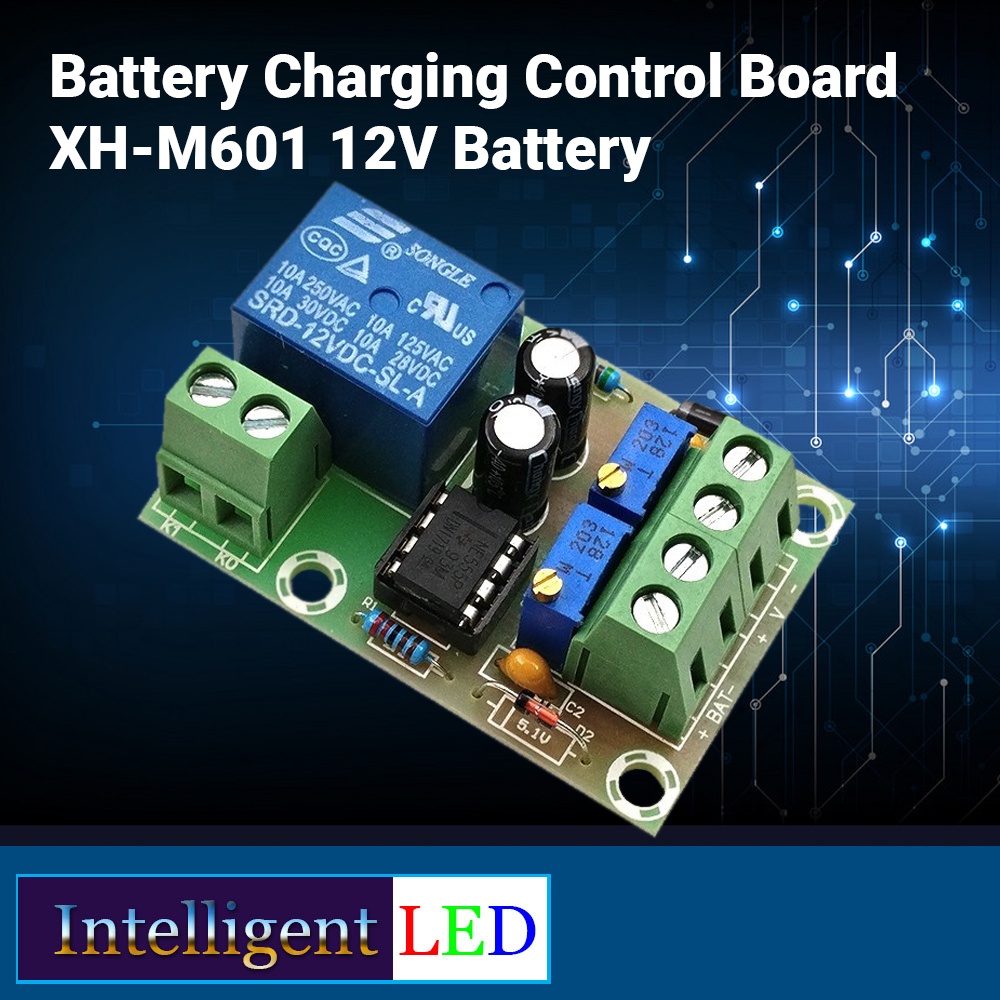

Detail Battery Charging Control Board XH-M601 12V Battery

XH-M601 battery Carging Control Board 12V Intelligent Charger Power Control Panel Automatic Charging Power

Name : Battery Charging Control Board XH-M601 12V Battery
Supply Voltage: 13.8V - 14.8V
Relay Closing Voltage : 12.4V
Relay Opening Voltage : 14.8V
Voltage Error : ± 0.1V
Voltage Detection Way : DC Voltmeter
Battery Charger Type: 12V Storage Battery
Potentiometer Adjustment: RP1 RP2 pls be more carefully
Board Size: 50mm x 32mm x 18mm LWH

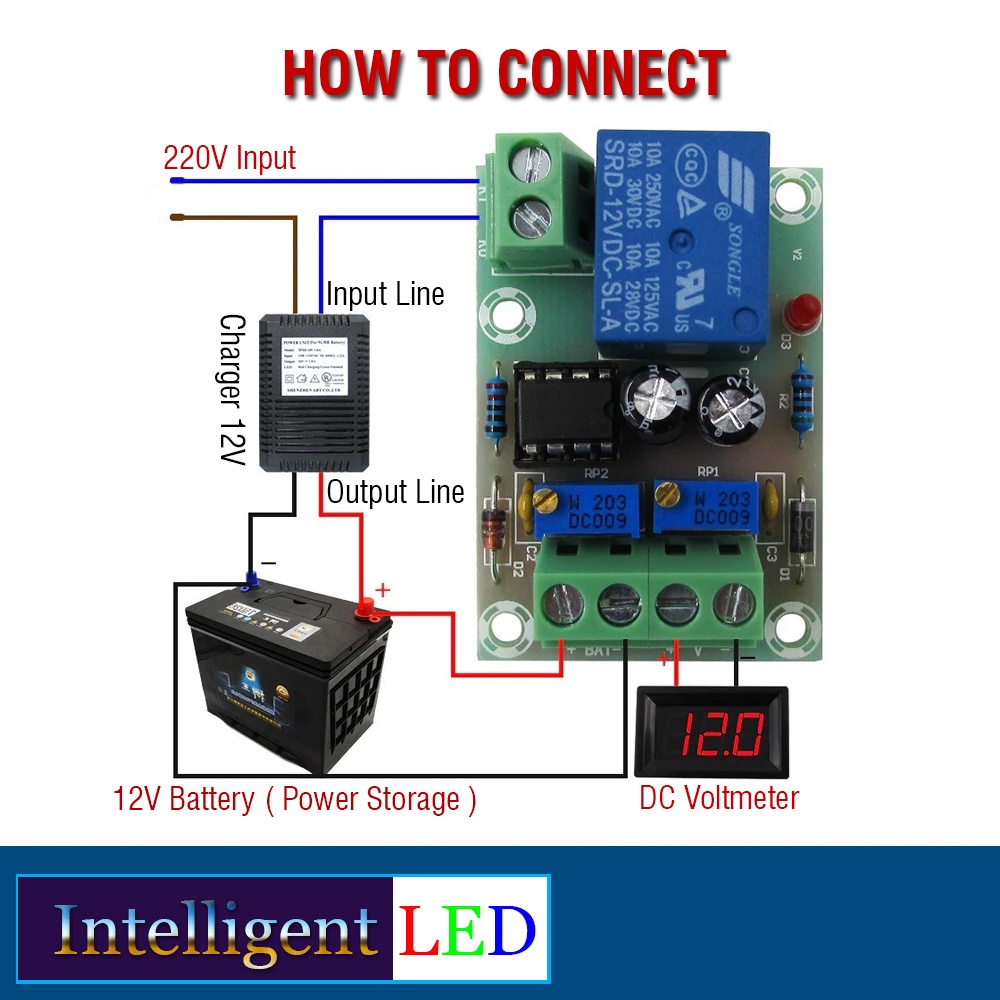

Note : Just Charger Power Control Board, Not included Storage battery and voltmeter
