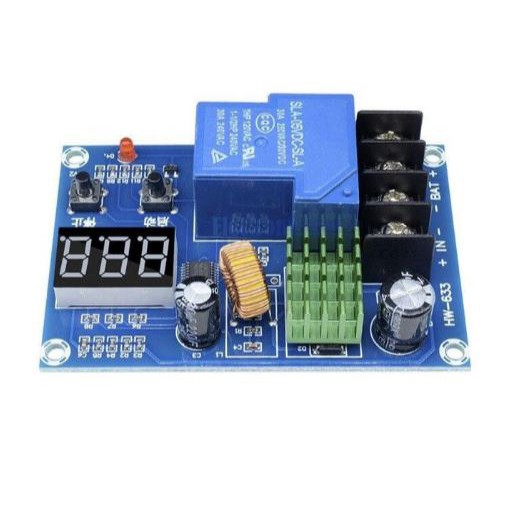

Battery Charger Control DC 6-60V Lithium Battery Charging Protection ( 604 )

Detail Battery Charger Control DC 6-60V Lithium Battery Charging Protection ( 604 )

Kontroller Cas Baterai Battery Charger 6-60v Solar Charge Controller
Modul pengendali pengecasan baterai.
**Melindungi baterai dari kerusakan akibat
1. Pengecasan berlebihan (overcharge protection - auto power off, otomatis menghentikan pengisian baterai jika sudah penuh)
2. Pengurasan baterai berlebihan (overdischarge protection - auto power on, otomatis mengecas saat baterai sudah low bat
Input voltage : 6-60V
Display accuracy : 0,1V
Control accuracy : 0,1V
Output Type : direct output
Apply for 6-60V max 80V battery
Use : in the setting voltage value, start button play button raised, about stop button role to down key

1. Set the start voltage : normal display voltage state, press to a starting voltage button to display the start charging voltage long press the start button digital flashes, by start and stop button, set the start charging voltage value

2. Set the stop voltage: normal voltage normal display mode, press to a stop voltage button to display the stop charging voltage long press the stop button digital flashes, by start and stop button, set the stop charging voltage value

3. Setting Eror: Energized state while holding down the start / stop button, digital display 888 which is the factory setting

Colour : blue and green
Material : FR4
Size : 8 x 6,5 x 2cm

Gambar produk
