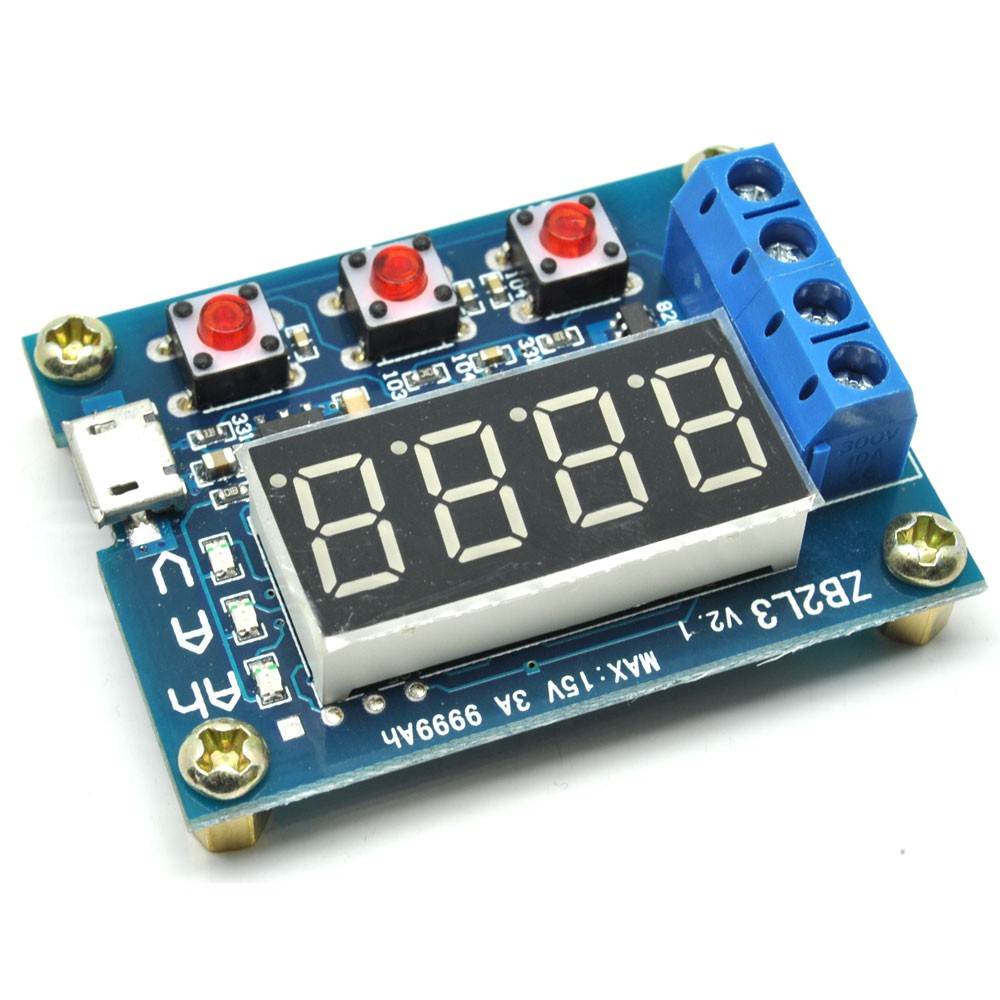

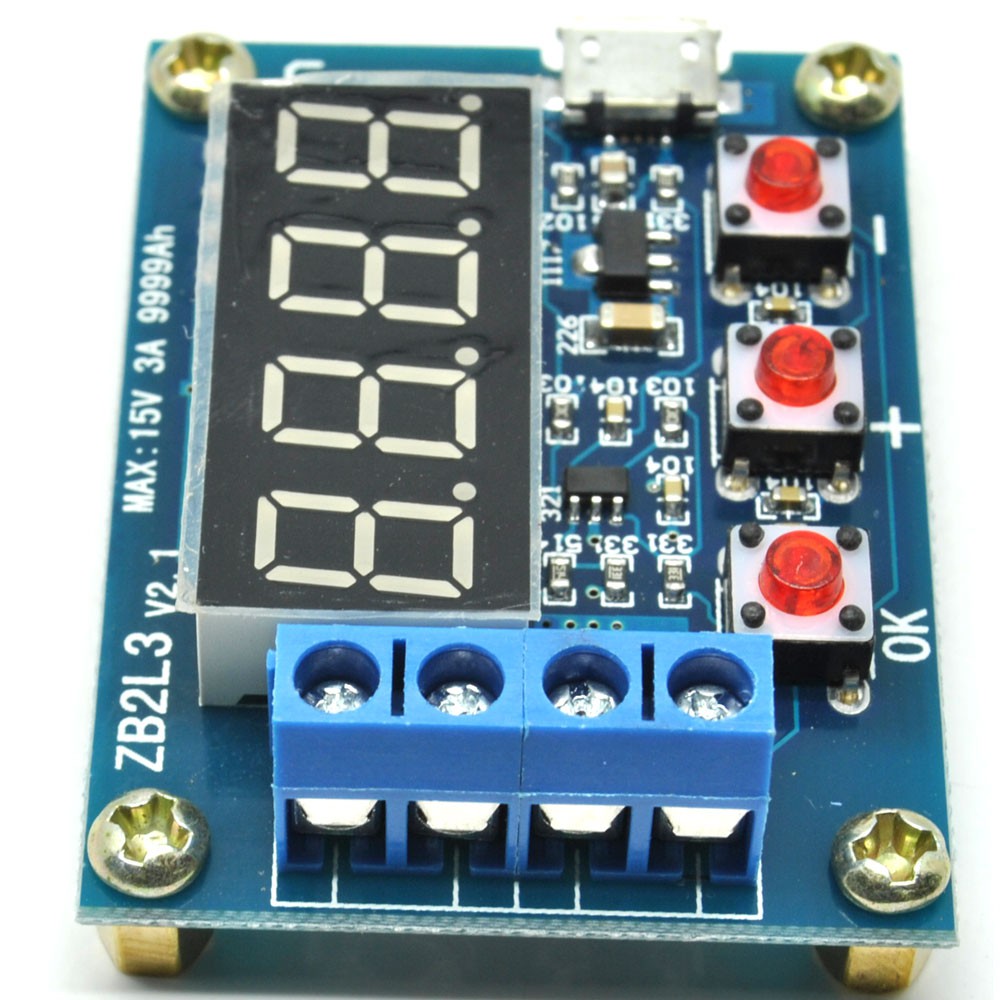

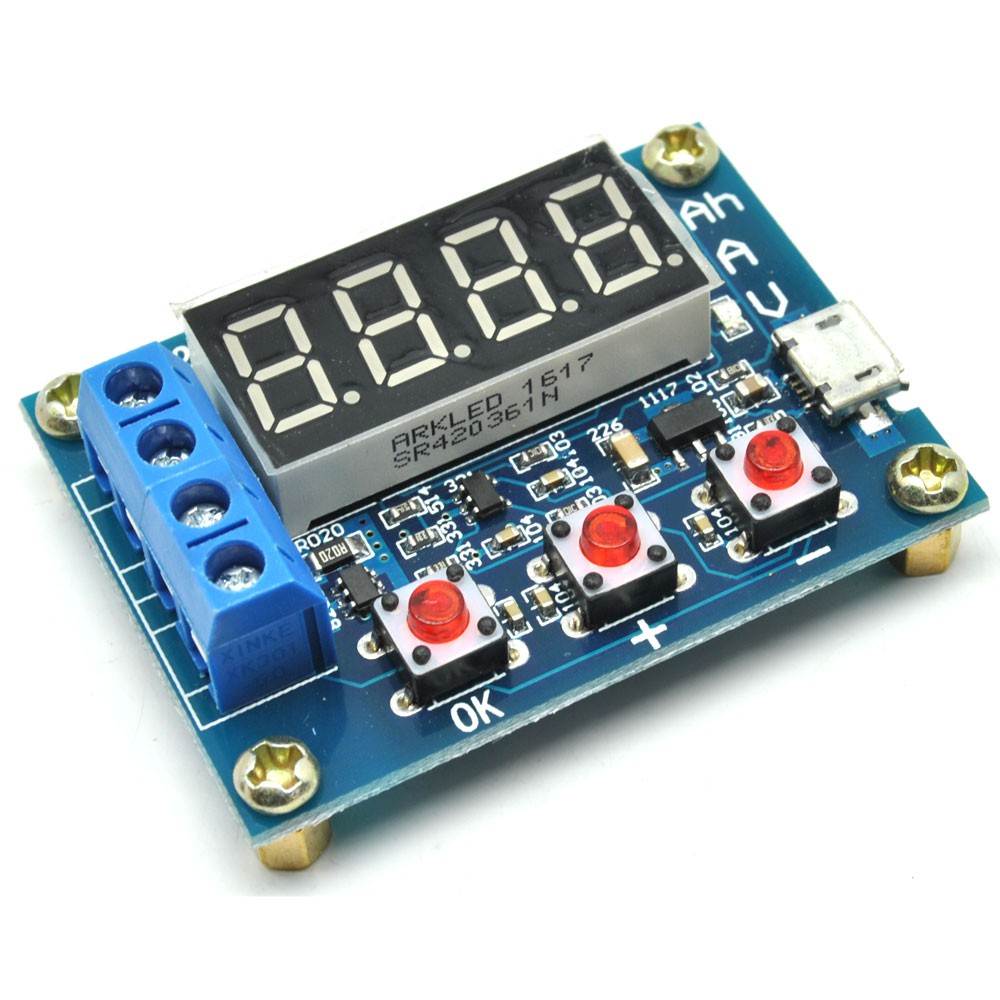

Battery Capacity Meter Discharge Tester 1.5v~12v for 18650 Li-ion - ZB2L3 - OMUA9LBL Blue

Detail Battery Capacity Meter Discharge Tester 1.5v~12v for 18650 Li-ion - ZB2L3 - OMUA9LBL Blue

1.5v~12v Battery Tester Capacity menawarkan solusi yang cepat dan mudah untuk mengukur kapasitas baterai suatu alat elektronik seperti power bank, dll. Dilengkapi dengan layar LCD berpresisi tinggi, kecil dan ringan, mudah dibawa kemana saja. Dapat mengecek baterai 18650 pada elektronik.

FEATURES
Can Measure The Power Bank Battery Capacity
Anda dapat menggunakan Zhiyu Battery Tester ini untuk mengetahui kapasitas real power bank Anda dan alat elektronik lainnya, Isi penuh power bank Anda dan lakukan pengetesan.

Up to 3000A
Alat ini berukuran mini namun dapat melakukan test hingga kapasitas baterai 3000A dengan resolusi 0.001A. dilengkapi dengan error message apabila terjadi kesalahan pada saat pengetesan.

Error Codes :
Err1: the battery voltage higher than 15V
Err2: the battery voltage is lower than the setting voltage termination
Err3: the battery is unable to withstand the load discharge current resistance is too large or line
Err4: the current is too large (current is more than 3.1A)
Complete Features is in Klik Dsini

Technical Specifications of Zhiyu Battery Capacity Meter Discharge Tester 1.5v~12v for 18650 Li-ion - ZB2L3
Power Supply Power supply voltage: DC4.5-6V (micro USB interface)
Working current: less than 70mA
The discharge voltage: 1.00V-15.00V resolution 0.01V
Termination voltage range: 0.5-11.0V
Supported by current: the maximum 3.000A resolution 0.001A
The maximum measurement error voltage: 1%+0.03V
The maximum measurement error of current: 2%+-0.010A
Dimension 50 x 36 x 17 mm
