Battery Baterai equalizer Aki Accu Balancer 48V BMS Aki Equaliser

Detail Battery Baterai equalizer Aki Accu Balancer 48V BMS Aki Equaliser

TAICO BE48 : Tanpa Voltmeter

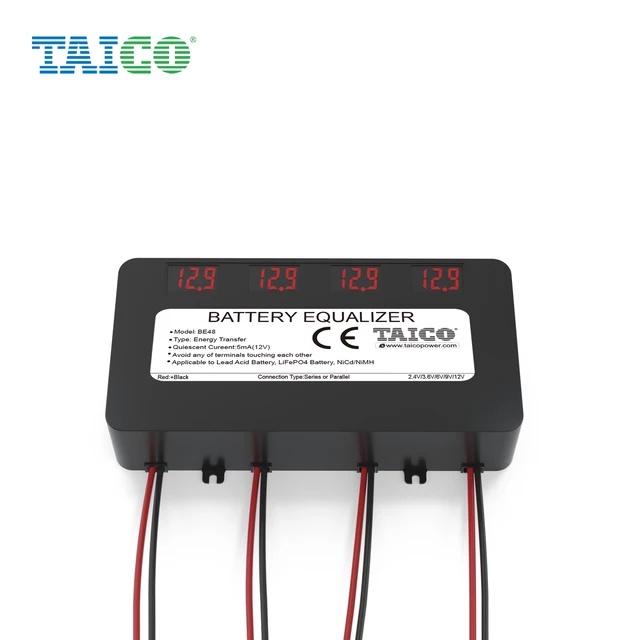

TAICO BEL48 : Dengan Voltmeter

Battery Equalizer for 4PCS 2.4V/3.6V/6V/9V/12V Lead-acid/Lithium iron phosphate/nickel-cadmium secondary Ni/MH Batteries Balancer


This battery equalizer is energy transfer type equalizer,it can compensatefor batteries with two sides ,The equalizer starts to work when there are 10mV between two batteries ,the current will flow from a higher vor3A ltage to low voltage ,eventually reach equalibrium ,It can connect with batteries system with 24 hours ,to keep the system energy balance automatically ,no need manual maintenance

The Battery equalizer is suitable for lead -acid batteries (VRLA),lithium iron phosphate batteries (LFP),nickel-cadmium secondary batteries (Ni/CD),and nickel-metal hydride secondary batteries (Ni/MH),It starts work when the voltage higher than 2.4V , it means that this equalier can be used in a single cell battery range from 2.4V to 12V. One equalizer can connect 4 batteries once a time ,if battery less than the 4,the extra cable can be vacant(postive and negative terminal should be avoided ).does not affect the equilibrium effects .The equalizer is not affacted with battery connection way ,no matter in series or in parallel ,both can work


Working Voltage:4x（2.4V/3.6V/6V/9V/12V）
Working Current:0~10A
Standby Current: less than 5mA
Temperature Sensor:-20°C~+55°C
Size:62*124*27(mm)
Protection: reverse polarity protection
Low Voltage Disconnect: 1.8V

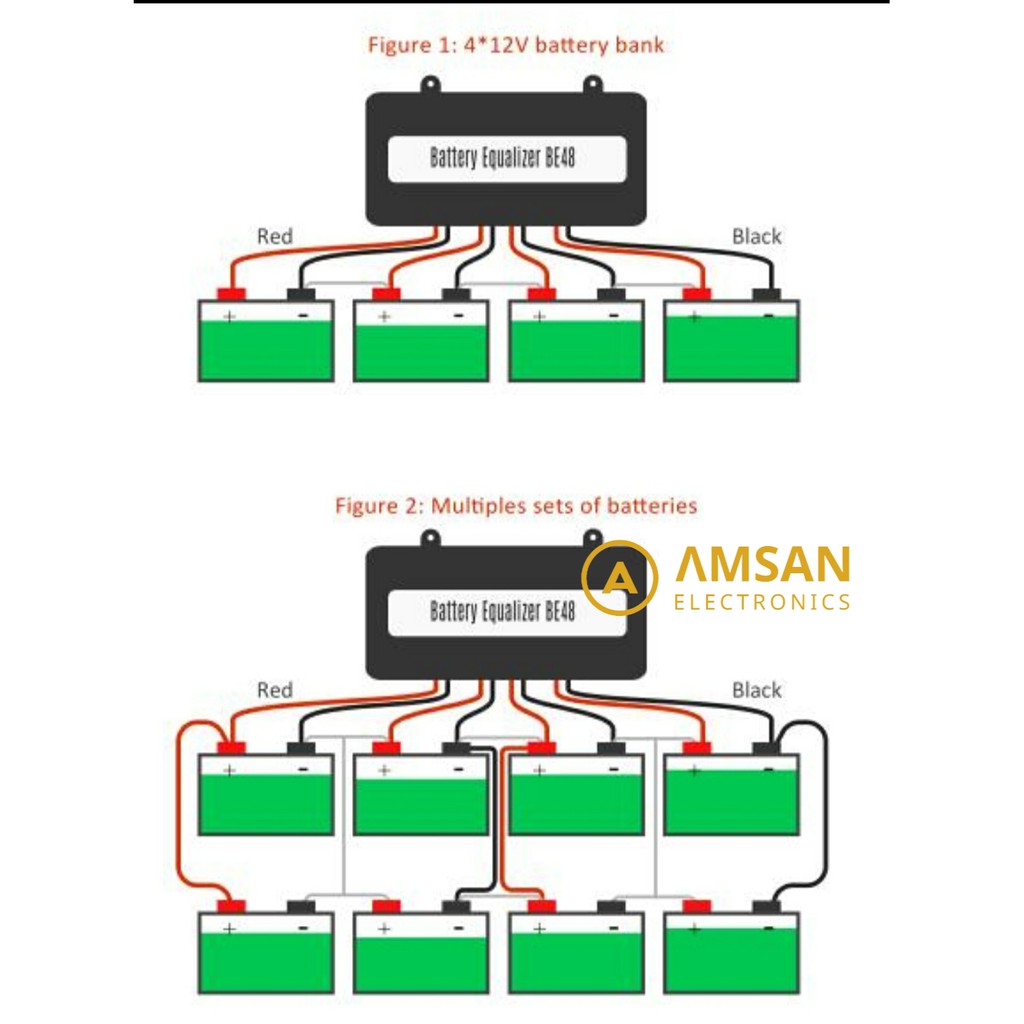

Connection:
1.Red cable connect positive/+pole,Black cable connect negative/-pole
2.connect the batteries as the pictures (connected in any order)
3.If there are extra cable ,avoid short circuits
