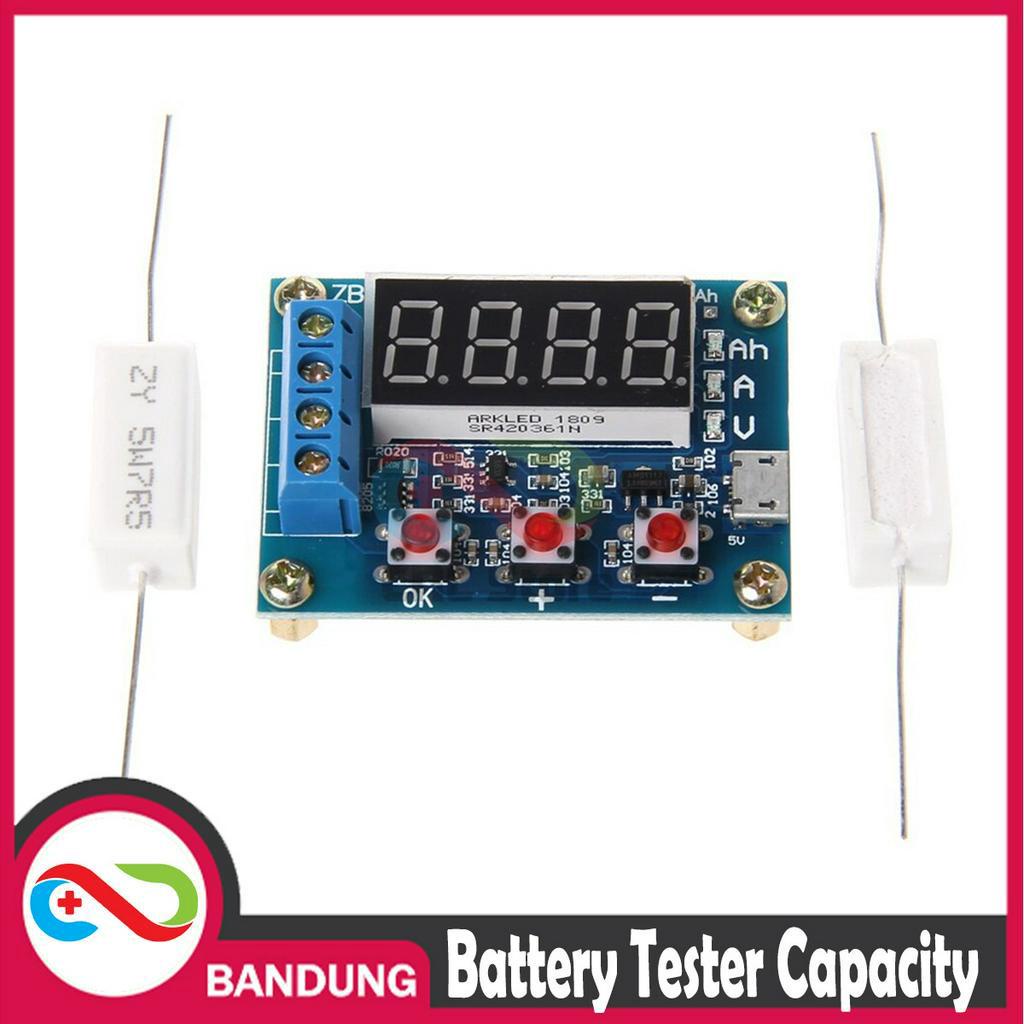

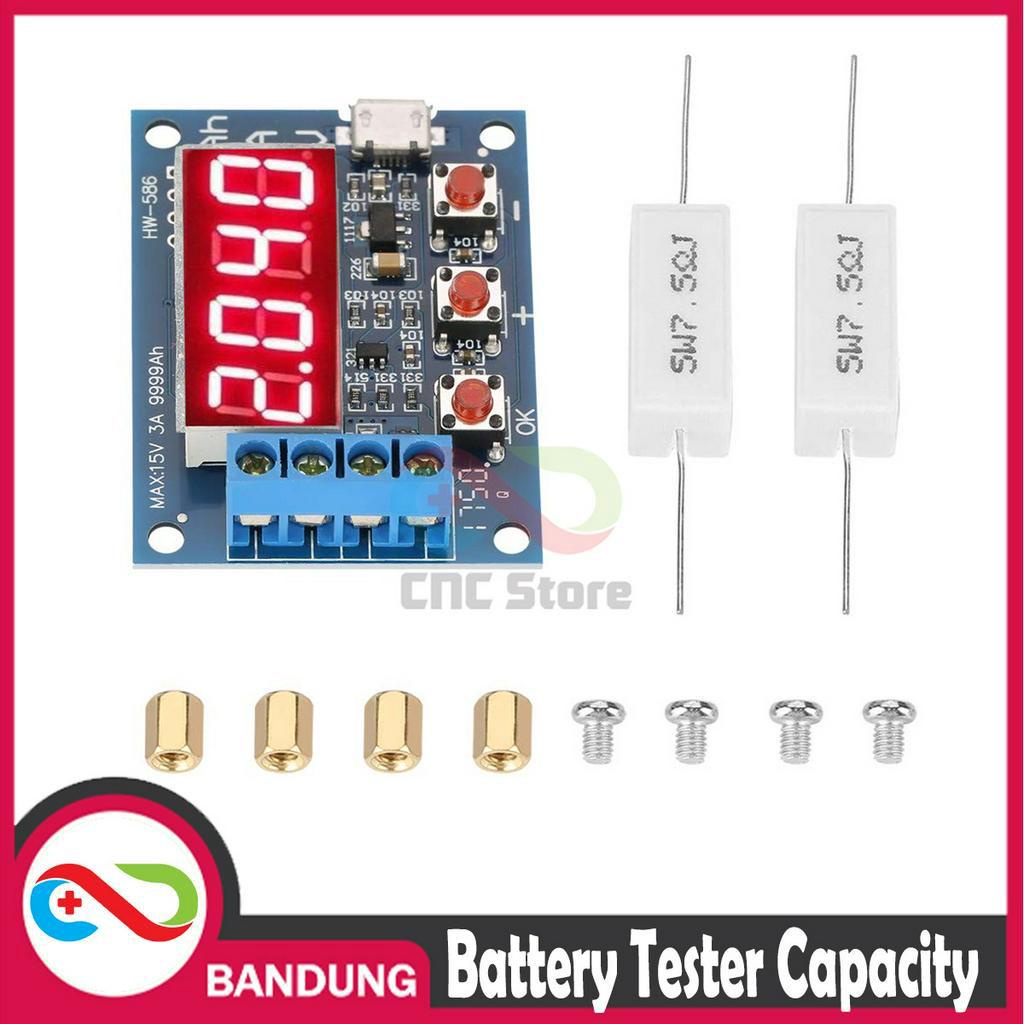

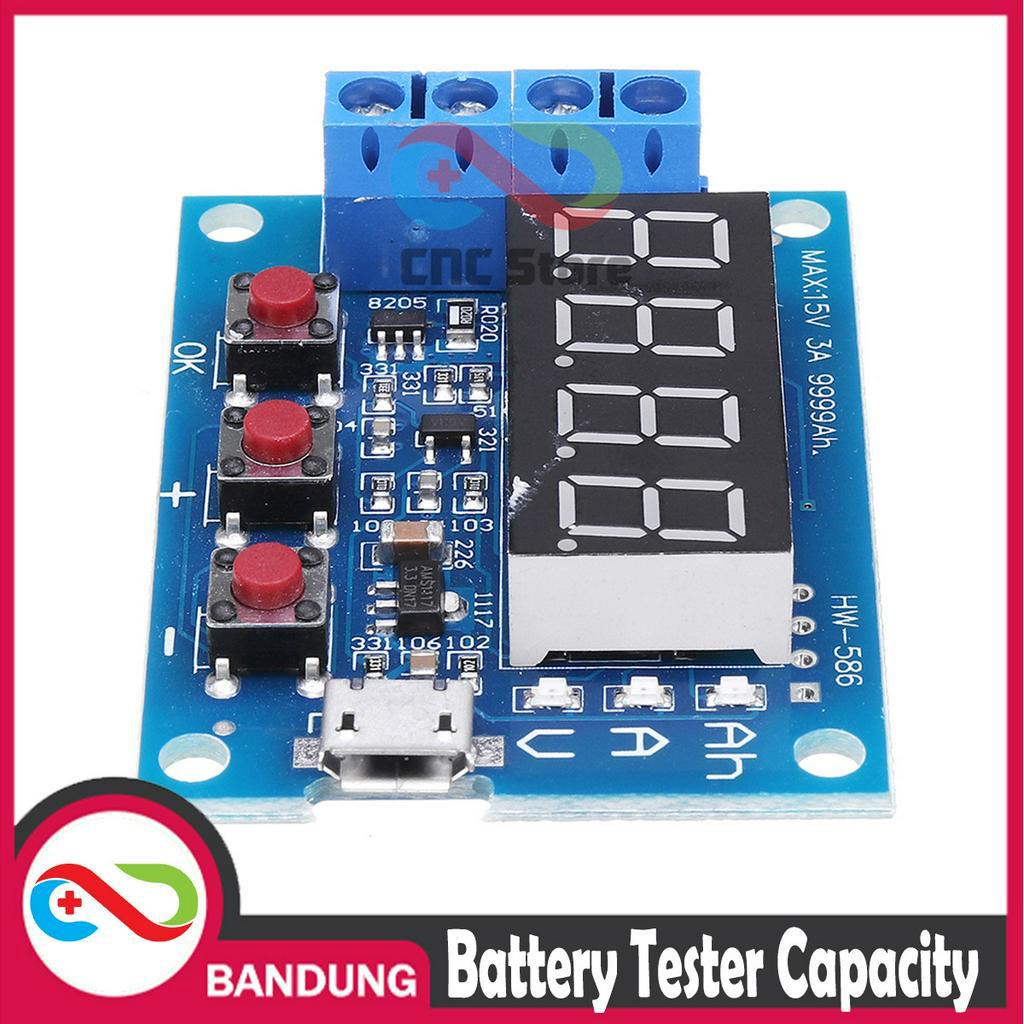

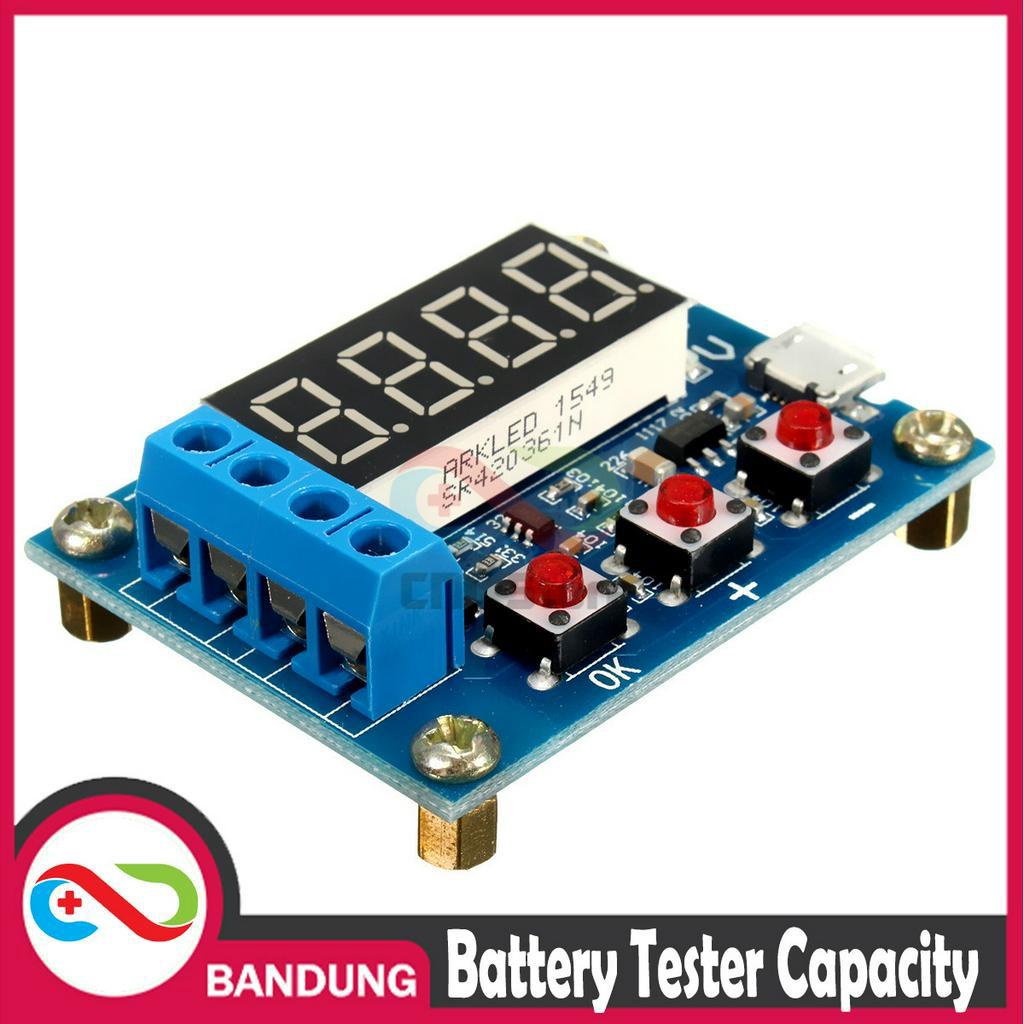

BATTERY 18650 26650 CAPACITY TESTER EXTERNAL LOAD DISCHARGER 1.2V-12V

Detail BATTERY 18650 26650 CAPACITY TESTER EXTERNAL LOAD DISCHARGER 1.2V-12V

PSU-0063
==========

Deskripsi:
======================
Mau cek kapasitas baterai? mau cek tegangannya berapa volt? bisa pakai alat yang dari kita nih gan , Battery Tester ini untuk mengetahui kapasitas real power bank Anda dan alat elektronik lainnya, Isi penuh power bank Anda dan lakukan pengetesan.
Alat ini berukuran mini namun dapat melakukan test hingga kapasitas baterai 3000mAh dengan resolusi 0.001A. dilengkapi dengan error message apabila terjadi kesalahan pada saat pengetesan.

Error Codes :
Err1: Tegangan baterai melebihi 15v
Err2: Tegangan baterai lebih rendah dari batas minimal modul
Err3: the battery is unable to withstand the load discharge current resistance is too large or line
Err4: the current is too large (current is more than 3.1A)

Spesifikasi:
======================
Power supply voltage: DC4.5-6V (micro USB connector)
Operating Current: less than 70mA
Discharge voltage: 1.00V-15.00V 0.01V resolution
Termination voltage range: 0.5-11.0V
Supported by current: 3.000A 0.001A resolution
Maximum voltage measurement error: 1% + 0.02V
Maximum current measurement error: 1.5% + - 0.008A
Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.
Board size: 50mmX37mm
Finished Size: 50mmX37mmX17mm

Paket:
======================
1 x BATTERY 18650 26650 CAPACITY TESTER EXTERNAL LOAD DISCHARGER 1.2V-12V

UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
