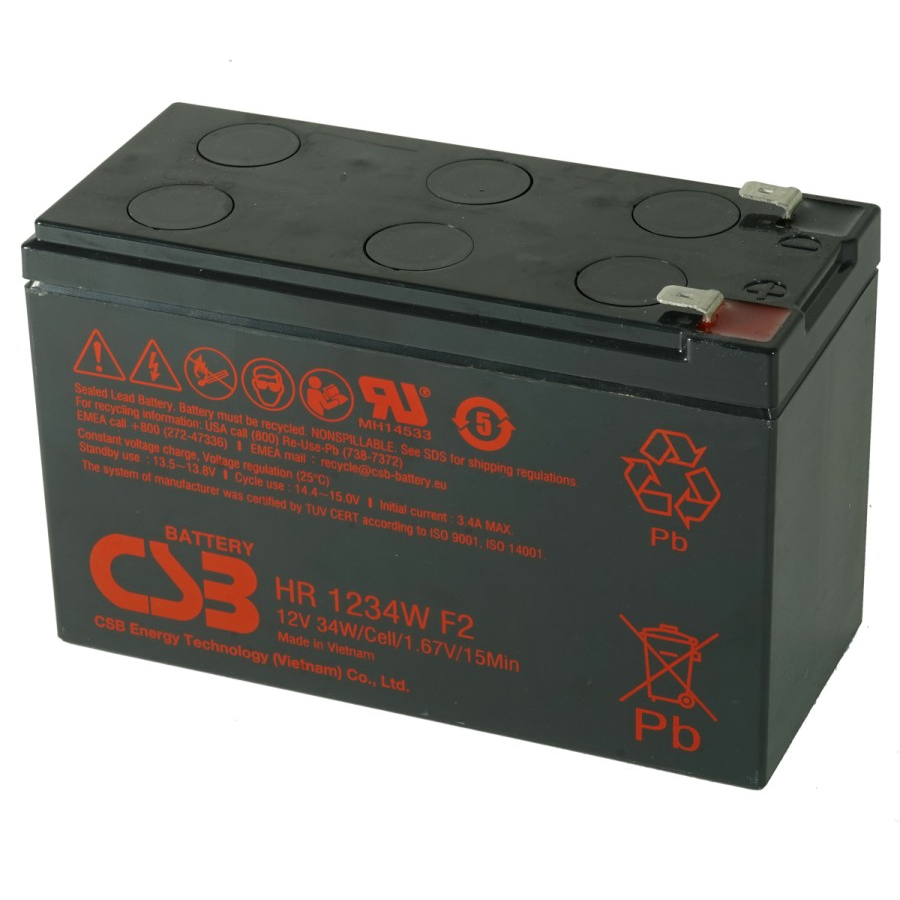

Baterai UPS CSB HR1234W F2 12V 9A - UPS APC Standard Battery

Detail Baterai UPS CSB HR1234W F2 12V 9A - UPS APC Standard Battery

WAJIB CHAT untuk cek stok SEBELUM pemesanan!
======================
100% Baru dan Original


CSB Battery digunakan sebagai replacement battery UPS (Silakan konsul dengan kami)
Hi Grade Quaility, digunakan sebagai standard battery di UPS ternama seperti APC
Maintenance-Free, Leak proof dan rechargeable


Battery UPS - CSB HR1234W F2 12V 9A High Rate Discharge

The CSB HR1234W F2 is a High Rate series of battery designed to withstand the demands of hi-tech applications. This battery is perfect for alarm systems, ups systems, medical equipment, power systems and more. Compared to the competitors, CSB HR series offers 20% more high energy density output.
HR 1234W is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used up to 5 yeas in standby service.

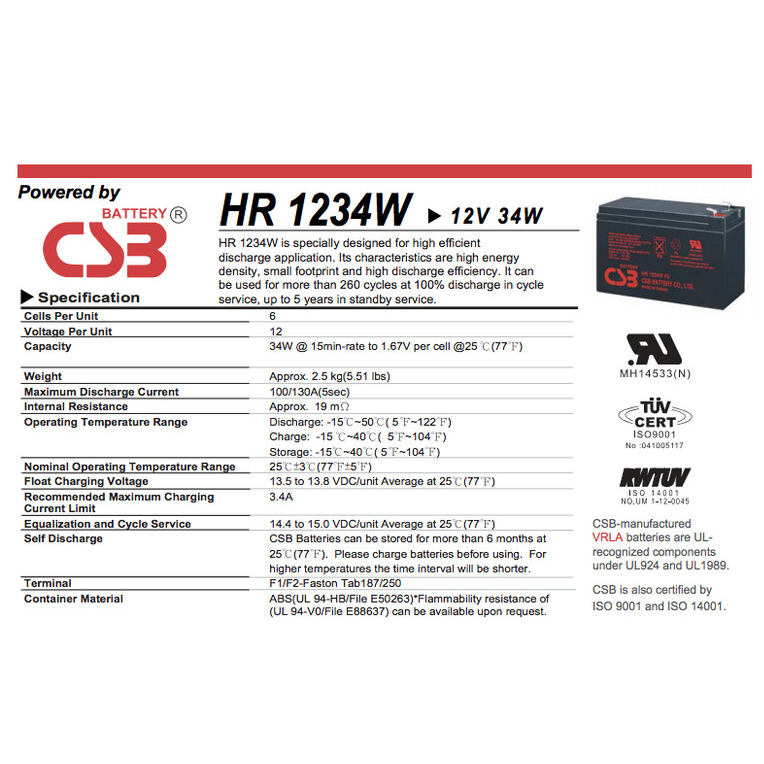

Spec :
Cells Per Unit 6
Voltage Per Unit 12 V
Capacity 34W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)
Weight Approx. 2.50kg. (5.51lbs.)
Maximum Discharge current 100/130A (5sec.)
Internal Resistance Approx. 19mΩ
Operating Temperature Range Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
Nominal Operating Temperature Range 25°C ± 3°C (77°F ± 5°F)
Float charging voltage 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
Recommended Maximum Charging current limit 3.4A
Equalization and Cycle Service 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
Self Discharge It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
Terminal F2-Faston Tab250
Container Material ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
