BARCODE SCANNER WIRELESS 2D DAN 1D IWARE BS-2100WL (QR CODE/EFAKTURE) GARANSI FREE STANDING

Detail BARCODE SCANNER WIRELESS 2D DAN 1D IWARE BS-2100WL (QR CODE/EFAKTURE) GARANSI FREE STANDING

Deskripsi BARCODE SCANNER WIRELESS 2D IWARE BS-2100WL (QR CODE/EFAKTURE) GARANSI
PHOTO ASLI -- BARANG READY -- ORDER MASUK LANGSUNG KIRIM -- GARANSI RESMI
=========================================================================
Barcode Scanner ULTRON W20 2D merupakan barcode scanner laser wireless dengan tingkat akurasi dan kehandalan tinggi, desain elegan dan ergonomis,

SPEFISIKASI
Communications RF433
Communication frequency 430 to 440MHz
Transmission range Up to 100M
Data Rate 0-250Kbps
Communication mode Real-time/Inventory/Cache
Electrical Characteristics
Interface USB HID
Battery capacity 1500mAh
charging period 4H
Voltage requirement 5V(scanner)
Current consumption 120mA ，50mA
Optical Characteristics
Photo sensor CMOS array sensor
SENSOR RESOLUTION 752X480 pixels
light source 632nm LED
Aim light source 617 nm red LED
Performance Characteristics
Scan Rate: 30fps
Decode angle Pitch angle：±55°，Skew angle：±55°，Tilt angle：360°
Motion capability Up to 2M per second
Min resolution 1D:5mil 2D:10mil
Min. PCS value 25% minimum reflective difference
curvature R≥15 mm (EAN8)，R≥20 mm (EAN13) （resolution=0.26mm，PCS=0.9）
Field of View 28° (H) x 21.5° (V)
Identification 1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI 2D：QR,PDF417,Data Matrix
Regulatory
Electrical Safety UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.
LED Safety IEC/EN60825-1:2001, IEC/EN62471:2006
Accessories Adapter(USB),User Guide
Physical Characteristics
Dimensions Scanner:162 x 66 x 82 mm(d x w x h)
Weight Scanner:168g Adapter:18g
Case material PC, Black/blue
Shock drop test 1.2m drop onto concrete surface
Environmental Characteristics
Temp 0° C to 40° C ( -4°F – 140°F )(operation) ， -40° C to 70° C (-40°F -185°F)storage)
Humidity 5%-95%
Ambient Light: 86,000 lux (direct sunlight), 1600lux (Indoor light)

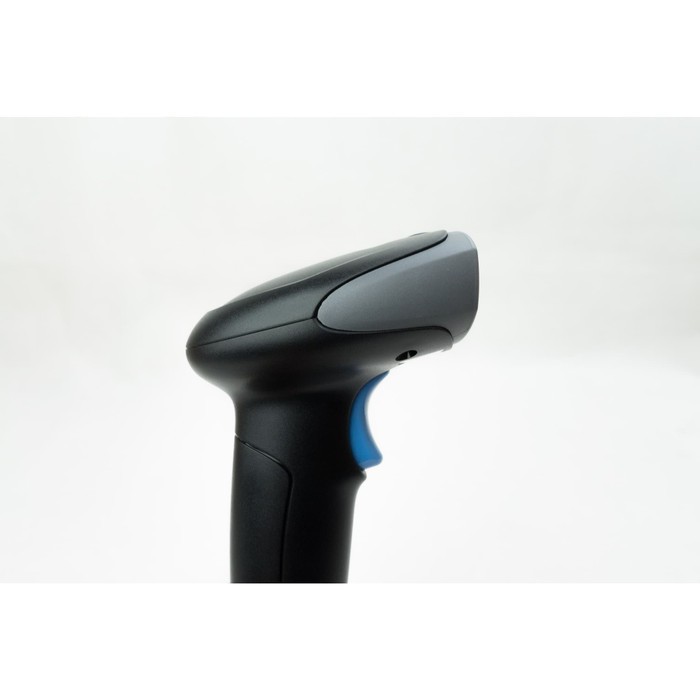

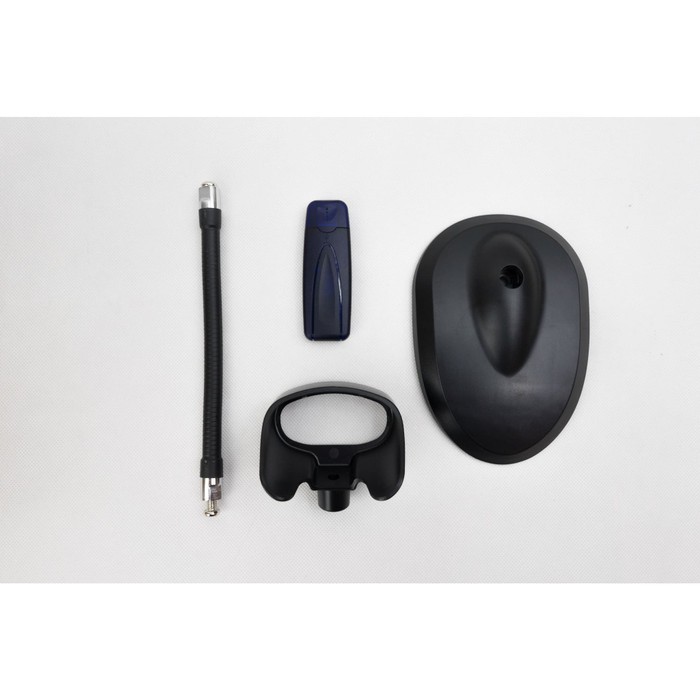

Gambar produk
