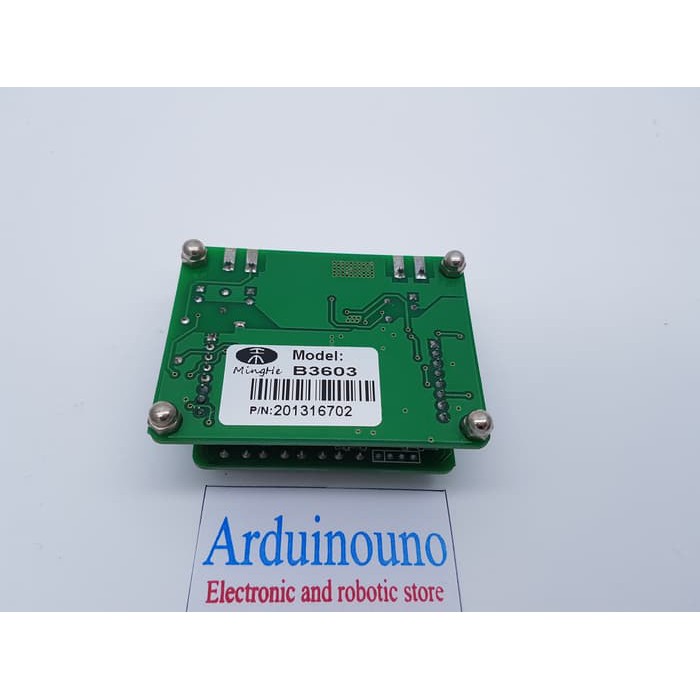

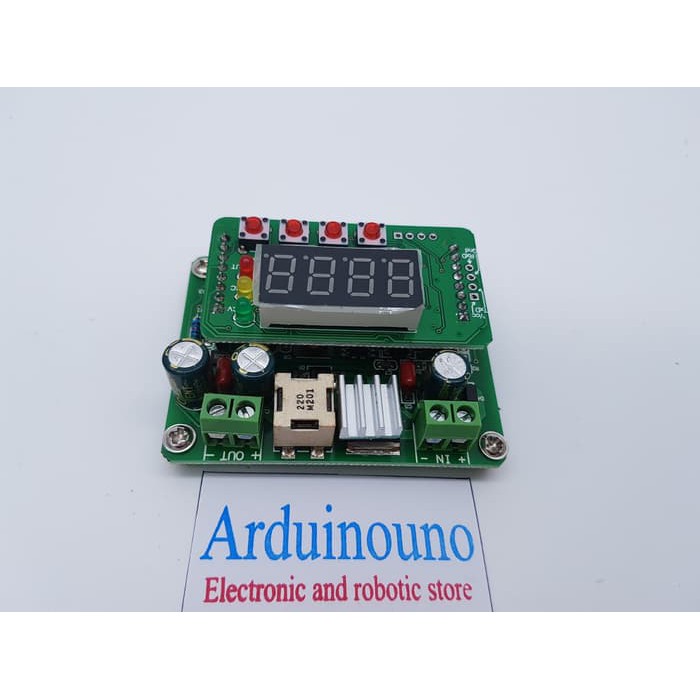

Detail B3603 3A LM2596s Step Down Module LED Digital Display 6-40V to 0-36V
Features
Digital display, convenient and easy to use. Constant voltage and constant current state. OUT,CV and CC indicator light. Adjust output voltage and current value accurately. Automatic/manual switch voltage, current, power, capacity and other parameters display. It can be set whether automatically output or not after electrify. It can be set whether take turns to show voltage, current, power and capacity or not after output. 10 groups of storage location, free storage and bring up. One key to save voltage and current value Specifications
Input voltage: 6V ~ 40V Output voltage: 0 ~ 36V Output current: 0 ~ 3A Voltage regulation/display resolution: 0.01 V Current regulation/display resolution: 0.001 A The minimum display resolution of power: 0.001 W The minimum display resolution of capacity: 0.001 AH Conversion efficiency: up to 92% The output ripple: 50 mV Working temperature: - 40~ + 85 degrees Working frequency:150 KHz Short circuit protection:Constant current Input reverse connect protection:No, if necessary please install diode Connection mode: Terminals Download
Detailed Manual
Gambar produk
B3603 3A LM2596s Step Down Module LED Digital Display 6-40V to 0-36VB3603 3A LM2596s Step Down Module LED Digital Display 6-40V to 0-36VB3603 3A LM2596s Step Down Module LED Digital Display 6-40V to 0-36V
