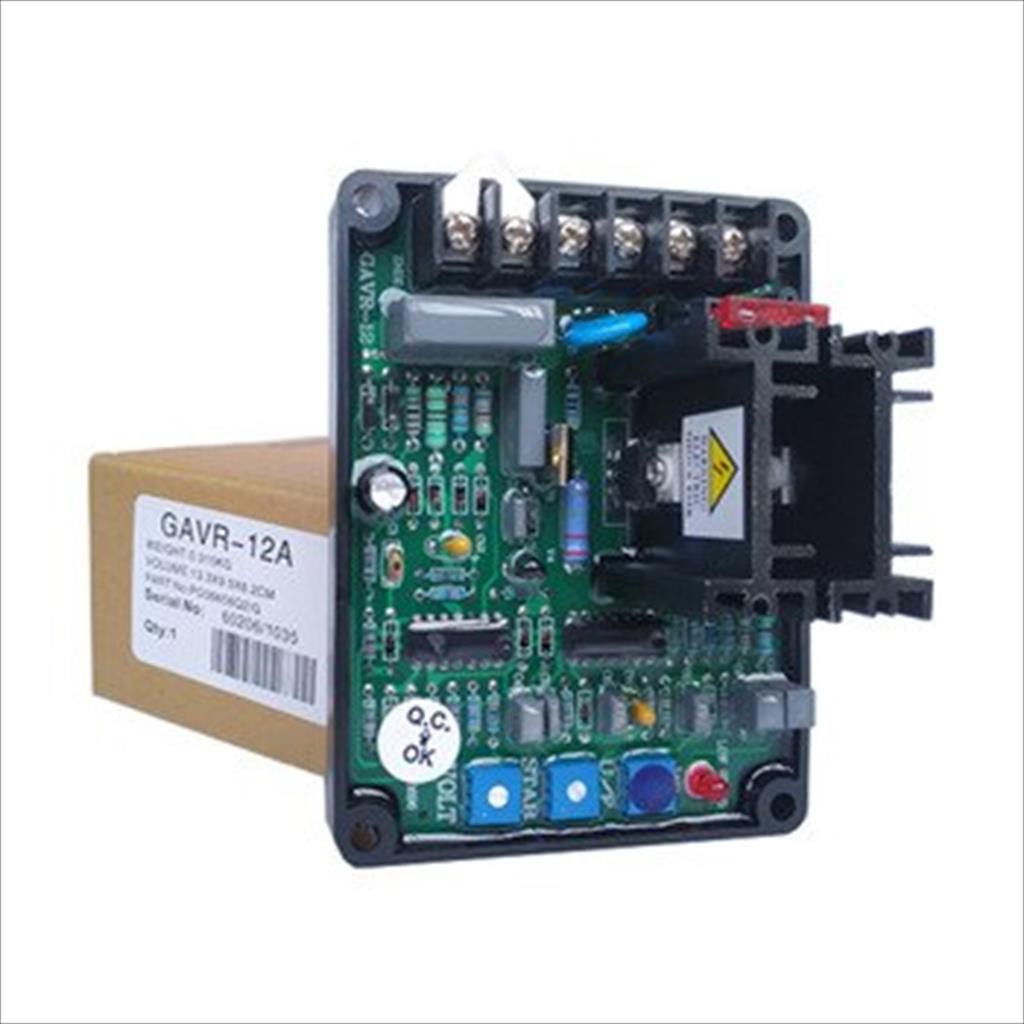

Detail AVR Generator GAVR-12A genset Universal OEM auto voltage regulator

Features:
Model: GAVR-12A
Input Voltage: 180260V AC 50/60Hz
Output Voltage: Max. 95V DC
Unit Power Dissipation: Max. 8W
Voltage Build-up: Residual volts at AVR teminal >4V AC
Current: Continuous 4A
Resistance: 12100 ohms
Operating Temperature: -40C to + 60C
Storage Temperature: -40C to + 85C
Under Frequency:
60Hz system presets knee point at 57Hz
50Hz system presets knee point at 47Hz


<+/-1% Reglation
+/-7% with 1000 ohm 1 watt trimmer
+/-1.0% RMS with 4% engine governing
Intermittent 7A for 10 seconds
220/400 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
