Detail AVOMETER ANALOG ZN-360TR ASLI ORIGINAL MULTITESTER YX-360

MULTITESTER ZN-360TRE ASLI ORIGINAL

Measurement current range: DC current 100uA~0.25A
Measuring Resistance Range: 0.5 Ohm~10M Ohm
Measuring voltage range: AC voltage 10~1000V
Measuring voltage range: DC voltage 0.25~1000V

Size: 148x100x35mm
Specifications:

Measure AC & DC voltage, DC current, resistance, AF level, transistor parameter, load current, load voltage, capacitance, inductance.
Excellent DC resolution factor of 2mV and expanded resistance measurement from 0.2Ω to 20MΩSeries capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components
A large and bright meter with a scale length of 80mm and ifs sensitivity of 44uA at full scale

Fuse and Diode protection: internal
Special feature : continuity test LED indicator
Buzzer : continuity test
Ohm : X1 X10 X100 X1K X10K

Measures hFE to 1000 using optional TR connector

DCV: 100m/500m/2.5/10/50/250V/1000V ± 4% fs. ACV: 10/50/250V/1000V ± 5% fs. DCA: 100u/2.5m/25m/250mA ±4% fs.
OHM: 2K/20K/200K/2M/20MΩ ± 4% of arc dB: -10~+62dB L1: 150u/1.5m/15m/150mA
hfe: 0~1000 (with optional TR connector)
Power supply: R6 (1.5V)x2, 622F 9Vx1

Bukan Prodak Abal-Abal (Lihat Foto)
Stock terbatas, silahkan menanyakan ketersediaan stock terlebih dahulu

Semua jenis komponen elektronik tidak bergaransi dan tidak bisa dikomplain

Tersedia bermacam-macam transistor, modul, dll
Silhkan PM untuk mencari komponen elektronik lainnya

#MULTITESTER

Gambar produk

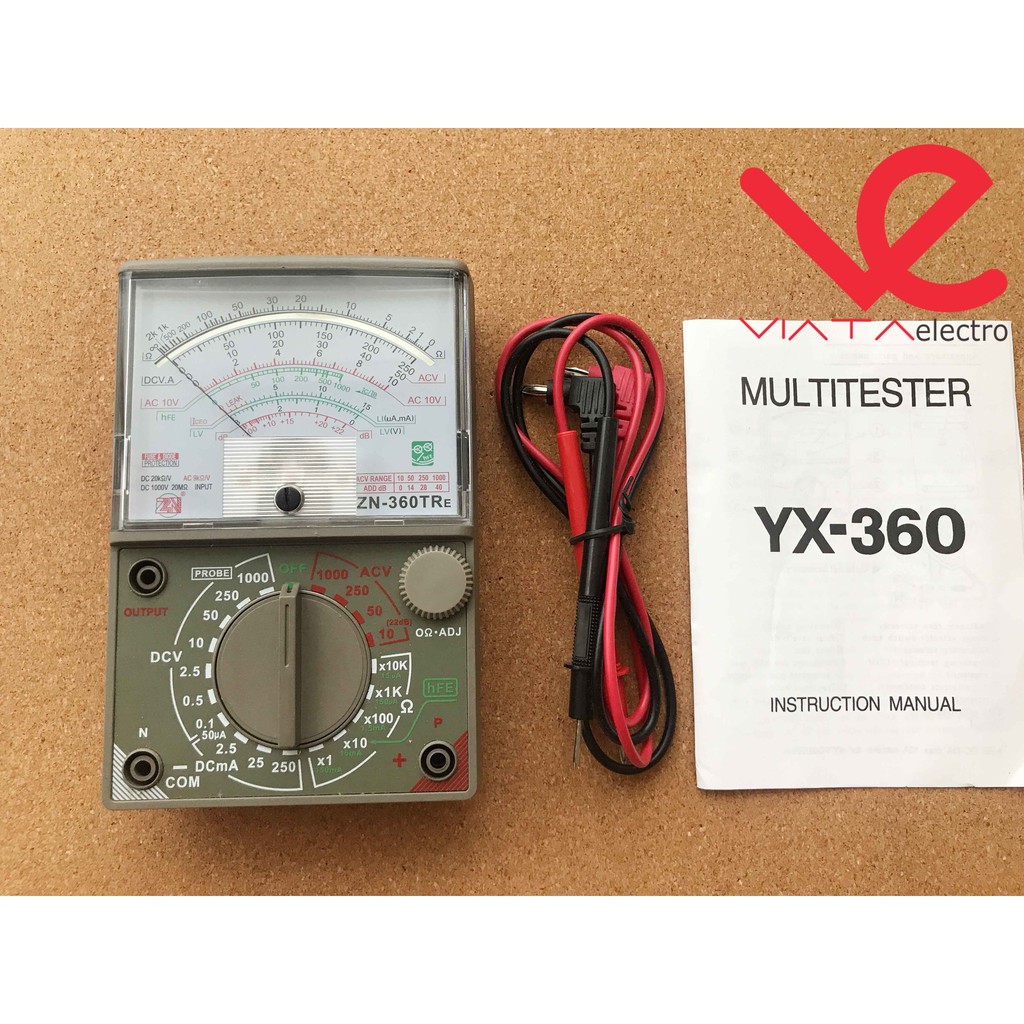

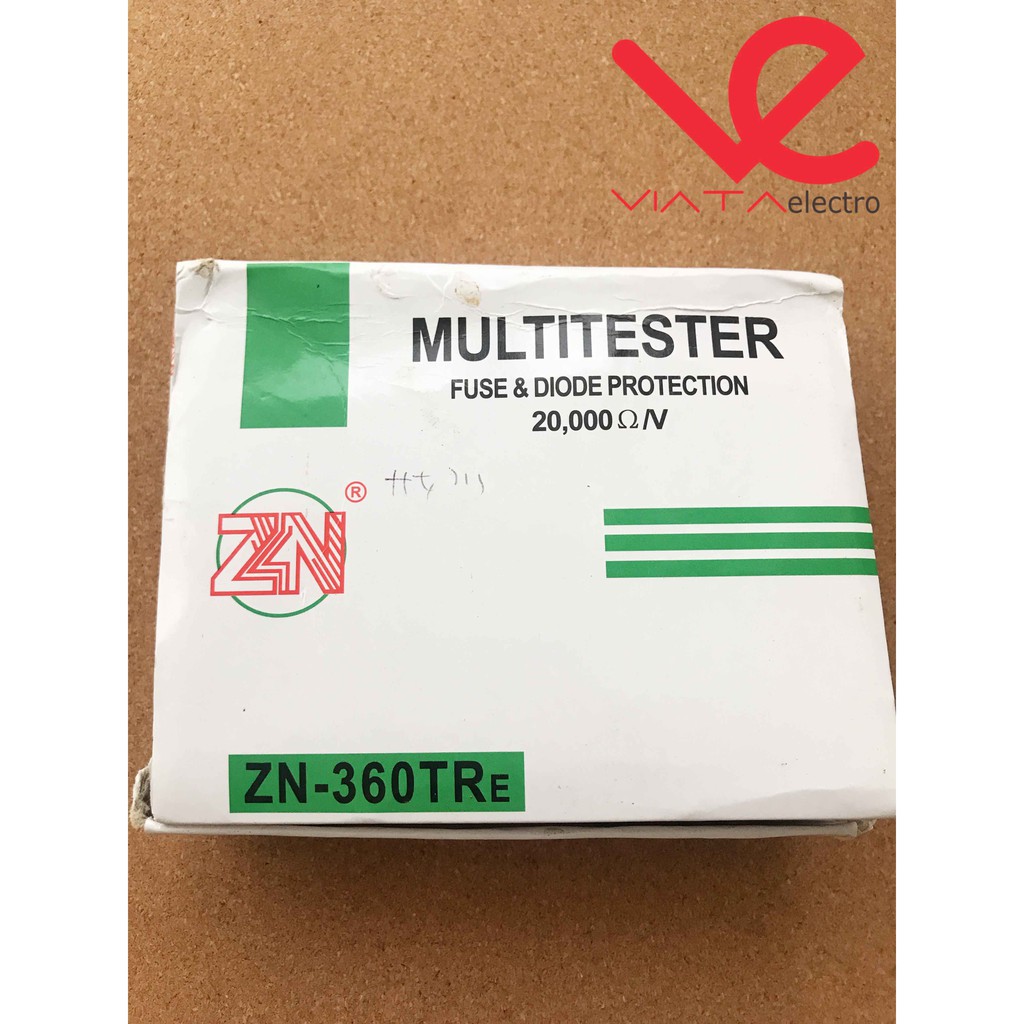

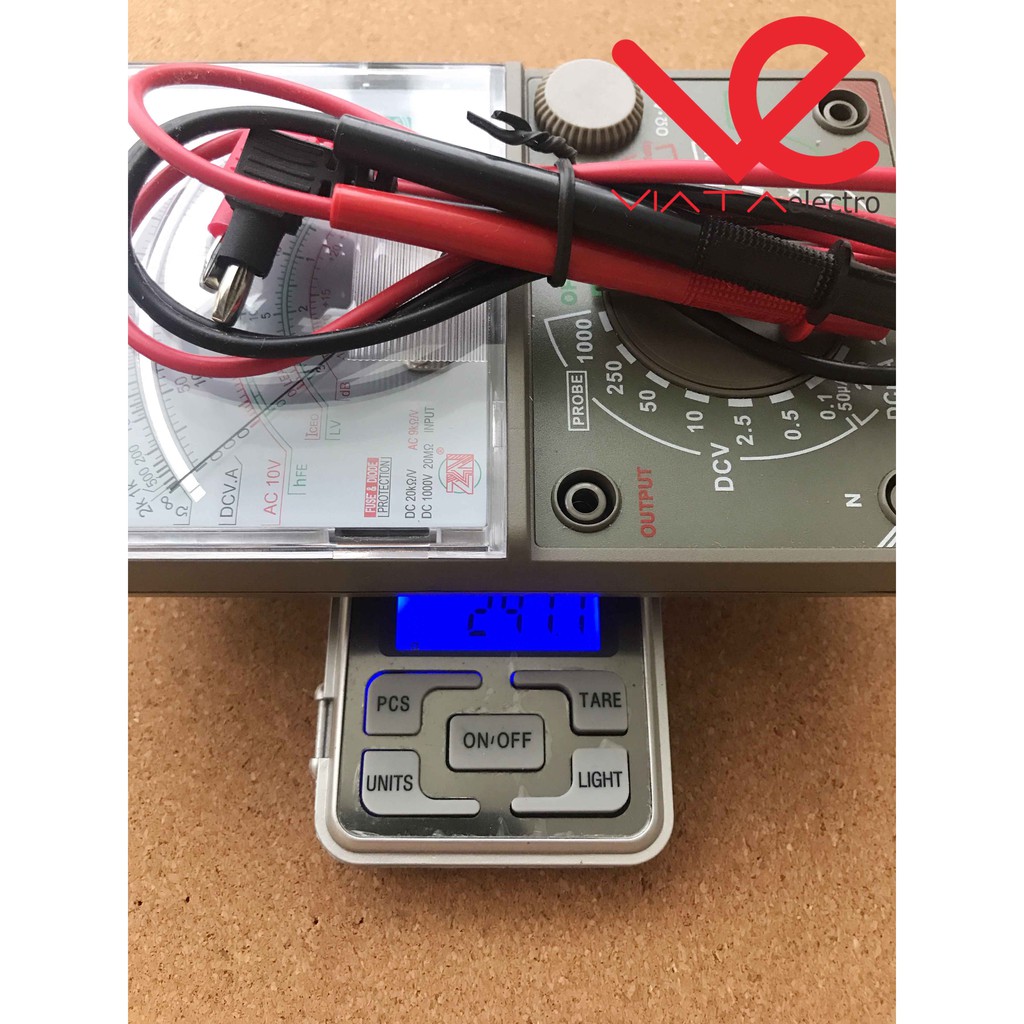

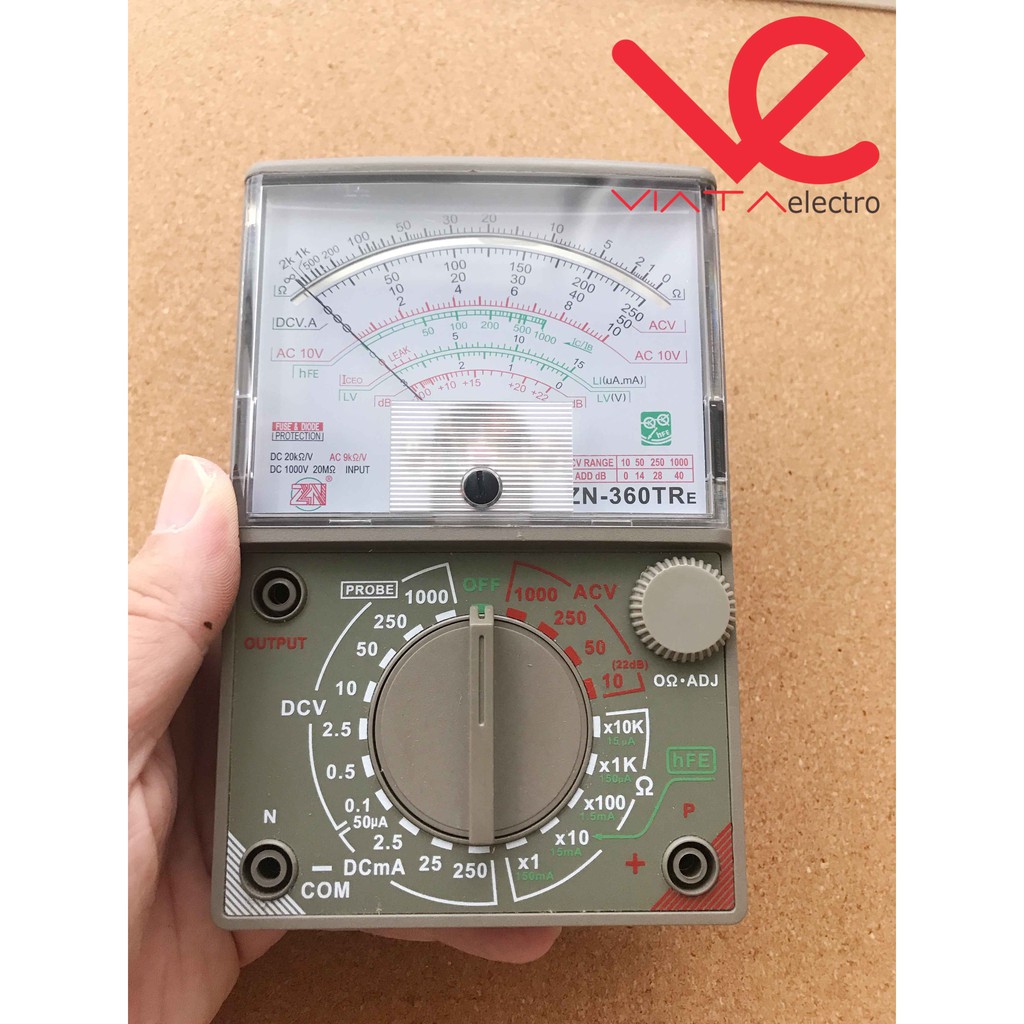

AVOMETER ANALOG ZN-360TR ASLI ORIGINAL MULTITESTER YX-360
