AV sender wireless video HDMI 5.8 GHz transmitter dan receiver

Detail AV sender wireless video HDMI 5.8 GHz transmitter dan receiver

AV SENDER WIRELESS VIDEO HDMI 5.8GHz TRANSMITTER AND RECEIVER

Wireless AV Sender TV Audio Video 1 Transmitter 1 Receiver Transmission Distance 100 Meter 5.8GHz

Adopting advanced 5.8GHz wireless transmission schemes and having advantages of long distance transmission, strong anti-interference and high mobility. By means of radio waves, it can transmit the signal from DVD player, DVR, CCTV camera, IPTV, Satellite receiver, Digital TV Set Top Box or any other A/V device at transmitter end to TV sets in different room at receiver end.

Features :

5.8GHz frequency band to avoid interference.
Plug and play, simple and convenient.
100m transmission range without barrier (tanpa halangan, real sekitar 80 m)
Transmission rangeWith barrier max : 15-20 m ( Bila halangan tembok tebal , dinding berlapis lapis dan ruang kedap suara, maka bisa tidak dapat sinyal)
Keep Transmitter and receiver setting at the same channel, it can support 1 transmitter and more receivers at the same time.
Supports video transmission of PAL/ NTSC system and stereo audio transmission
Support DVD, DVR, IPTV, CCTV Camera, Satellite receiver, Digital STB and other AV output devices

Spec :

S/N Ratio: 50dB Min
Bandwidth: 16.5MHz
Channel Switching: 8CH
Receiver Sensitivity：-86dbm
Input/Output: HDMI
Demodulation Method: FM/PLL
Operating Frequency Range: 2370~2468MHz
video Input/Output: 1Vp-p,75Ω，PAL/NTSC
Audio Input/Output: 1.5Vp-p,600Ω，Dual Channels
Output Image Resolution : 720 x 576P
Dimension : 130 x 60 x 100 mm

Unit Transmitter tidak cocok menyiarkan audio dari lubang HP phone jek 3.5mm.
(karena phone jek HP lubang nya TRRS)

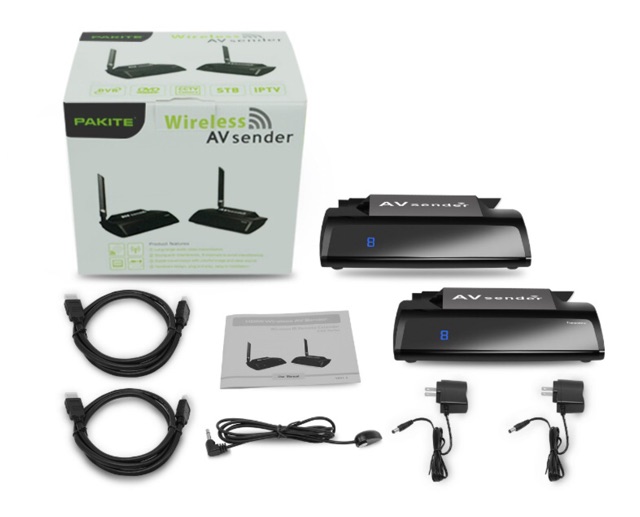

Isi Paket :

1 x Transmitter AV unit (Pengirim)
1 x Receiver AV unit (Penerima)
2 x Power adapter
2 x kabel hdmi
1 x Manual

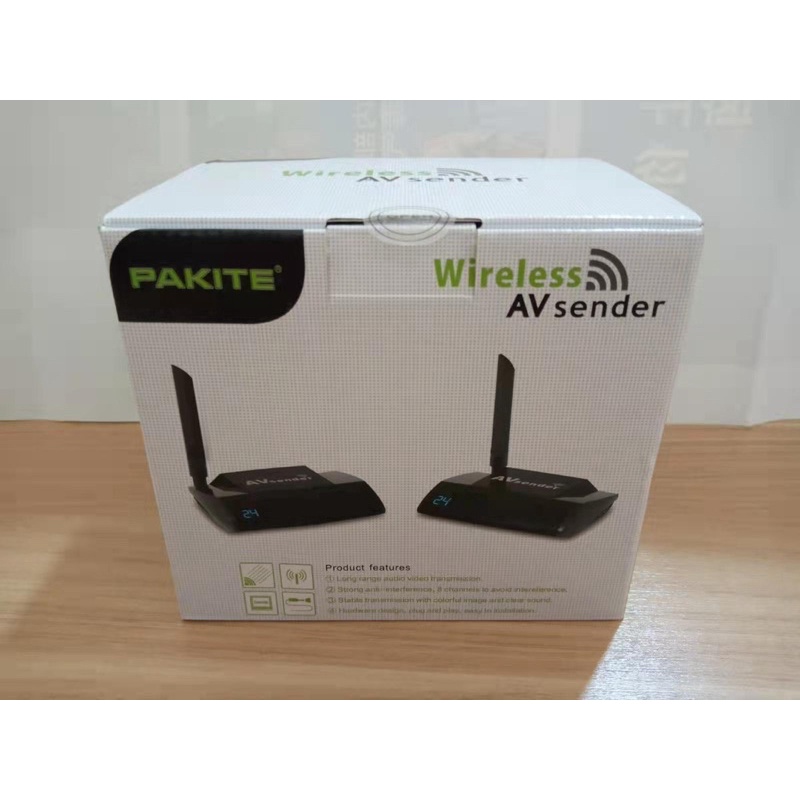

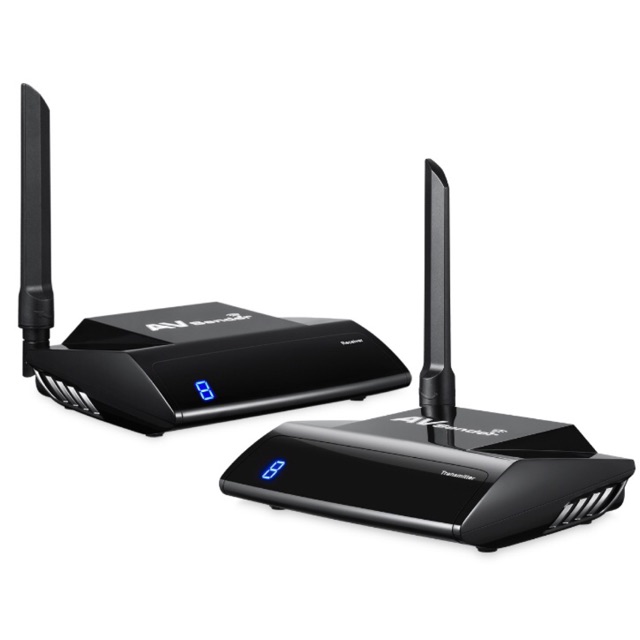

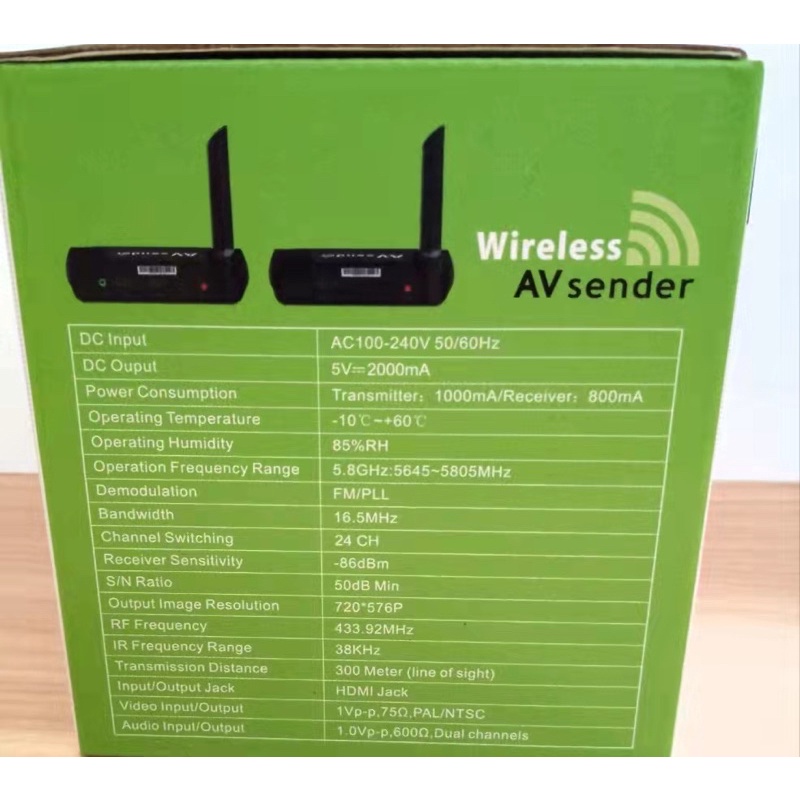

Gambar produk
