Auto Step Down Step Up 8A Buck Boost Module Stabilizer Tegangan DC

Detail Auto Step Down Step Up 8A Buck Boost Module Stabilizer Tegangan DC

8A Auto DC-DC Step-down Step Up Module dengan fasilitas Tegangan dan Arus konstan pada output.
Input Voltage : DC5 ~ 30V
Input current : 8A (Max) pemakaian jangka panjang tidak lebih dari 6A
Output Voltage : 1.25-30V (Adjustable)
Output Current : 10A (Max) diperlukan pendingin tambahan untuk pemakaian lebih dari 5A
Constant Current : 0.2-10A
Frequency : 150kHZ
Efisiensi : Up to 93%
Overcurrent Protection : Yes
Short Circuit Protection : YES (Current limit)
Output Prevention Back-Flow : YES
Over-temperature protection: Yes (over-temperature automatically reduces the output voltage)
Input Reverse Protection: None, (if required, enter the string into the diode)

Output current adjustment method:

1, adjust the CV potentiometer, according to your load requirements, the output voltage is set to the voltage you need.

2, counterclockwise set CC potentiometer 30 laps or so, (that is, the output current is set to minimum), connected to the LED, adjust the CC potentiometer to your current. For the battery charge, the battery after the termination of power, then receive the output, adjust the CC to the current you need, (must be used for charging when the battery is fully charged, because the battery remaining power More, the smaller the charging current.)

Note : Please do not use short-circuit way to adjust the current, the module's circuit structure can not be short-circuit way to tune.

#buckboost #dcstepup #dcstepdown #dcconverter #dcregulator

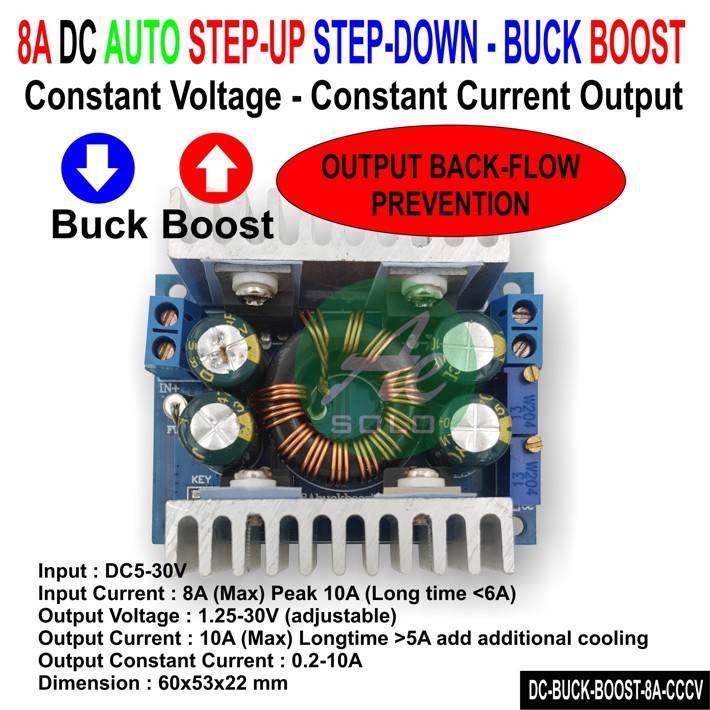

Gambar produk
