Detail Auto Buck Boost XL6009 DC Step Up Down Converter 1.25V sampai 35V
Merupakan modul DC Converter untuk menaikkan ataupun menurunkan tegangan.Technical parameters :- Module Properties : Non- isolated boost (BOOST)- Rectification : Non- Synchronous Rectification- Input Range : 5V ~ 32V- Output Range : 1.25V ~ 35V- Input Current : 3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )- Conversion efficiency : < 94% ( greater the pressure , the lower the efficiency )- Switching frequency : 400KHz- Output Ripple : 50mV ( the higher the voltage , the greater the current , the greater the ripple )- Load Regulation : 0.5%- Voltage Regulation : 0.5%- Operating Temperature : -40 ~ +85

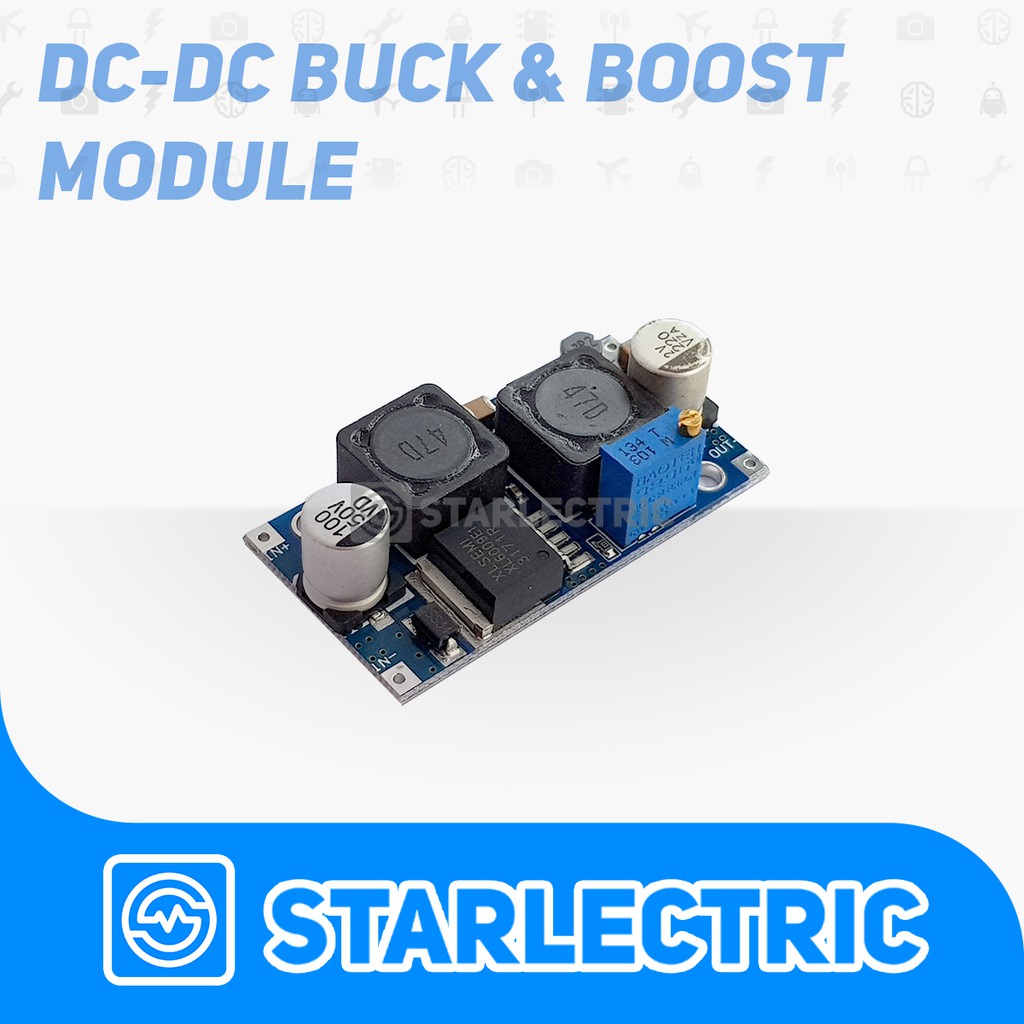

Gambar produk
Auto Buck Boost XL6009 DC Step Up Down Converter 1.25V sampai 35V
