Auto Boost Buck module yang sudah dilengkapi dengan fitur CC CV dan LED Indicator

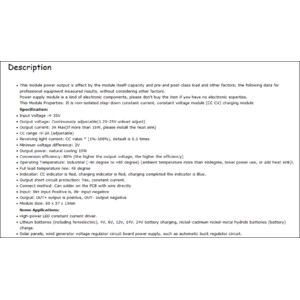

Spesifikasi:

- Input Voltage : 4-35V
- Output voltage: Continuously adjustable(1.25-25V unload adjust)
- Chip LM2596 & XL6019
- Output current: 3A Max(If more than 15W, please install the heat sink)
- CC range : 0-2A (adjustable)
- Revolving light current: CC value * (1%-100%), default is 0.1 times
- Minimum voltage difference: 2V
- Output power: natural cooling 15W
- Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency)
- Operating Temperature: Industrial (-40 degree to +85 degree) (ambient temperature more than 40degree, lower power use, or add heat sink)\
- Full load temperature rise: 45 degree

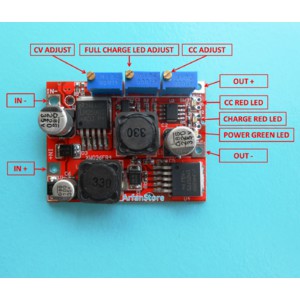

- Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
- Output short circuit protection: Yes, constant current.
- Connect method: Can solder on the PCB with wire directly
- Input: IN+ input Positive is, IN- input negative
- Output: OUT+ output is positive, OUT- output negative
- Module Size: 50 x 37 x 13mm

Aplikasi:
- Driver LED
- Charger / Cas semua type battery
- Solar Controller, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit.
- Power supply / regulator peralatan elektronik
- Dll

Cara penggunaan:
- Pastikan tegangan dan arus di sesuaikan dengan spesifikasi dari battery yang akan di charge atau LED jika sbg driver
- Ukur tegangan output dengan multitester putar potensio (CV Adjust) sesuai dengan tegangan yang di inginkan
- Untuk arus / current / ampere gunakan ampere meter dengan skala 10A, short pada outputnya dengan ammeter tersebut. lalu putar potensio (CC Adjust) untuk mendapatkan arus yang di inginkan

Paket:
1x LM2577 XL6019 Auto Buck Boost Converter
